Three Axis Electronic Acceleration Meter for Vibration and Impact Test

1pcs/box ,100pcs/ctn

Specifications

Acceleration Meter
1. High performance
2. High accuracy
3. Stable & reliable
4. Low power consumption

Three Axis Electronic Acceleration Meter for Vibration and Impact Test

Technic Data



Measuring range	±2	±08	±40	g
Deviation calibration	<2	<5	<10	mg
48h deviation stability	0.5	<1	<2	mg Typical value
Meausring Axis	X,Y,Z	X,Y,Z	X,Y,Z	Axis
Annual deviation stability[2]	1.5 (<5)	7.5 (<25)	22 (<75)	mg Typical value(Maximum value)
Power on/off repeatability	<10	<10	<20	mg(Maximum value)
Deviation temperature coefficient[3]	0.1	0.5	1.5	mg/°C Typical value
	±0.4	±2	±6	mg/°C maximum value
Resolution/threshold (@ 1Hz)	< 1	< 5	< 15	mg(Maximum value)
Nonlinearity	<0.1	<0.5	<0.6	% FS(Maximum value)
	<0.02	<0.09	<0.27	g(Maximum value)
Bandwidth[4 ]	1~≥400	1~≥400	1~≥400	Hz
Resonance frequency	1.6	6.7	6.7	kHz
Output interfaceOutput rate	5Hz,15Hz,35Hz,50Hz,100Hz,300Hz can be set
Output signal	RS232/RS485/RS422/TTL/PWM/CAN
Reliability	MIL-HDBK-217,Grade two
Shock resistance	100g@11ms,3Times/Axis(half sinusoid)
Recovery time	<1ms(1000g, 1/2 sin 1ms, impact in I shaft)
Vibration	20g rms,20~2000Hz (Random noise,o ,p,I each shaft effect 30 minutes)
LCC sealed	Meet MIL-STD-833-E
Input(VDD_VSS)	9-36 VDC
Output voltage range	0~5 VDC @12VDCInput voltage( 0 g as 2.5V±10mV)
Operating current consumption	<60mA @ 12 VDC
Weight	Typical value:100g
Size	Typical value : L50×W50×H38mm



AKE392B three-axis accelerometer sensor series products is RION company imported the Switzerland patented technology to produce for using widely, suitable for vibration testing, impact testing and more fields. The product uses a digital interface output, RS232/485/TTL optional, can be set to a different address code, long distance series with multiple sensors to facilitate multi-point measurement and data analysis.AKE392B is a monocrystalline silicon capacitive sensor, composed by a silicon chip of micro-mechanical treatment, low power ASIC for the signal adjustment, a microprocessor for storing compensation value and a temperature sensor. The product with low power consumption, after calibration, firm structure, stable output . New electronic configuration reset to provide a solid-state power, to provide comprehensive protection for over current. Scale factor in the full range of long-term stability and the deviation is typically less than 0.1%.This series products with firm structure,low power consumption, excellent deviation stability .etc characteristics to guarantee the reliability of outstanding output.

Key Features

• Three axis measurement optional (X,Y,Z)
• Output signal:RS232/RS485/TTL
• Voltage supply:9-36V
• Shock resistance:2000G
• Measuring range optional:±01G;±02G;±04G;±08G;±16G;±32G;±40G
• Excellent deviation stability
• Good environment performance shock,vibration and temperature
• Size:L47×W47×H38mm
• Weight:100g
• Working temperature:-40°C to +85°C
• Storage temperature:-55°C to +100°C

Application

• Crash records
• fatigue monitoring and forecasting
• Traffic system monitoring
• the roadbed analysis and high-speed railway fault detection
• Military and civilian flight simulator
• The shipboard satellite tracking system
• Low frequency vibration and automatic monitoring
• Military and civilian flight simulator
• The shipboard satellite tracking system
• Low frequency vibration and automatic monitoring

Product Show



Order Information



Dimension

measuring directions

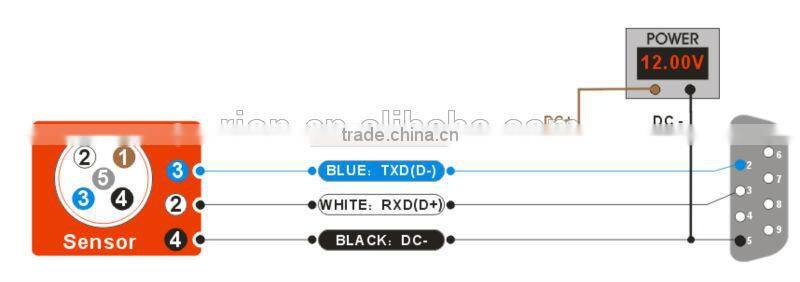

Electrical Connection
