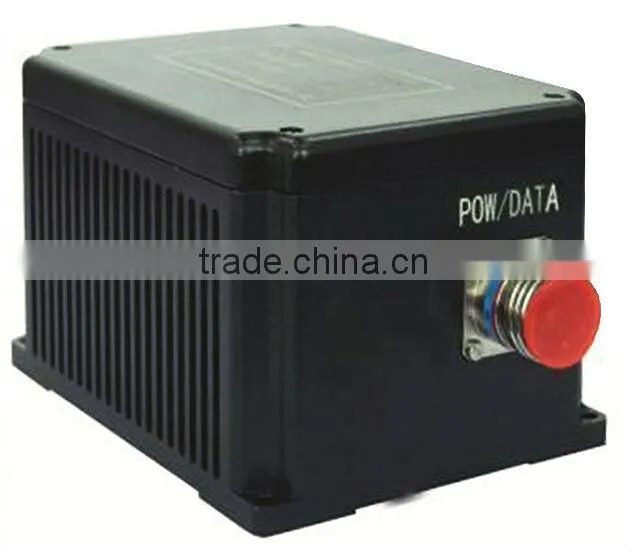

Competitive Price Navigation Accelerometer From Factory

Name: Competitive Price Navigation Accelerometer From Factory
Brand: RION
SKU: 124609105
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

RION

Model Number:

IMU300

Shenzhen Rion Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name RION

Model Number IMU300

Usage Position Sensor

Theory Other

Output Digital Sensor

Specifications

Navigation Accelerometer
1. High performance
2. Vibration and EMI resistance
3. Stable & reliable
4. Full compensated

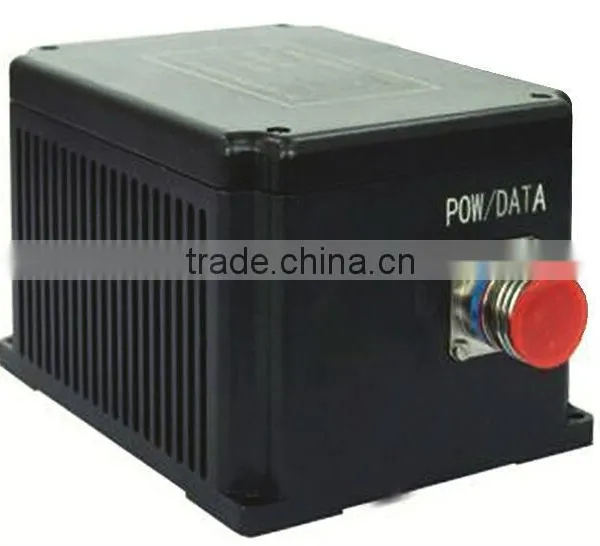

Competitive Price Navigation Accelerometer From Factory

Product Description

Technical info:

Physical	Size		Configuration (L×W×H)	151×120×101 mm
			Installation (L×W)	140 × 110 (4-Φ5.5)
Power	Voltage			9~36 VDC
	Power Consumption			< 12 W
Activation Time				<3s
Gyroscope	Bias Drift at Fixed Temperature			0.5 deg/h
	Bias Drift at Changing Temperature (-45°C ~70°C)			<2 deg/h
	Bias Repeatability			0.5 deg/h
	Scale Factor Non-linearity			200 ppm
	Scale Factor Repeatability			200 ppm
	Bandwidth			>100 Hz
	Resolution/Threshold			0.3 deg/h
	Alignment			< 1´
Accelerometer	Bias			0.5 mg
	Bias Stability			0.1 mg
	Bias Repeatability			0.1 mg
	Scale Factor Non-Linearity			300 ppm
	Scale Factor Repeatability			300 ppm
	Resolution/Threshold			0.1 mg
	Bandwidth			> 100 Hz
	Alignment			< 1 ´
Operating Range	Angular Rate			±300 deg/s
	Acceleration			±10 g
	Output Rate			100 Hz @ 115200 Baud rate
Reliability(predicted)				10 Kh MTBF
Input/ Output				RS232/RS422
Environmental		Operational Temperature		-45°C ~ +60°C
		Storage Temperature		-50°C ~ +70°C
		Vibration		6 g @ 20~2000 Hz
		Shock		40 g, 11 ms, 1/2 Sine

Features

Full temperature compensated via testing data from -45°C ~ +70°C for zero point, SF
Rugged design to protect against the harsh environments
Vibration and EMI resistance

Application
