Crane Lift Control Angle Alarm Sensor Four Way Output Alarming Angle Control Switch RS232 Output

1pcs/box ,100pcs/ctn

Crane Lift Control Angle Alarm Sensor Four Way Output Alarming Angle Control Switch RS232 Output

SCA1900T is a dual axis inclinometer module with analog voltage output, adopts VTI MEMS control unit by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V),mainly used to measure the inclination of the object with respect to the horizontal plane.Resolution is0.0025deg,accuracy specification please refer to the page 3 of product technical data .

This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS inclinometer productive technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

Features

Dual-Axis Inclinometer(Single axis are optional)      Measuring Range : ±1~±85°optional

Accuracy: refer to the technical data                            DC 5V voltage input

Output interface :0~5V                                                   Wide temperature working: -40~+85°C

Resolution: 0.0025°                                                       Small Volume : 30×30×5mm(customized)

Application:

Engineering vehicles automatic leveling                   Bridge & dam detection

Aerial platform vehicle,lifter safety & protection        Medical facilities angle control

Underground drill posture navigation                        Shield pipe jacking application

Based on the angle direction measurement           Geological equipment inclined monitoring

Directional satellite communications antenna pitching angle measurement

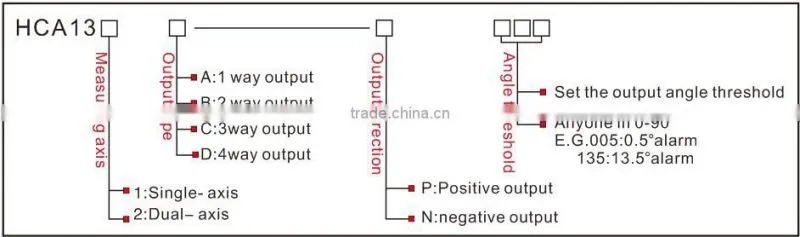

Ordering information:

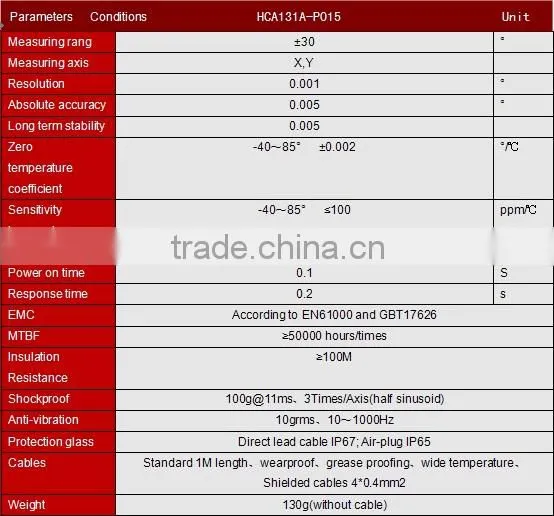

Technical Data

Dimension

Measuring Directions&Fix

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our ultimate destiny.

Certificates & Honor

Packaging: carton with sponge

We will ship your order within 7 business days after we receive the full payment.

If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.

One year warranty is provided, during that period, we exchange and fix the malfunction item forfree, and still we take care of products for its lifetime.

we are position sensor solution expert, full service and support before, in the middle of and after sales would be provided.

We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
