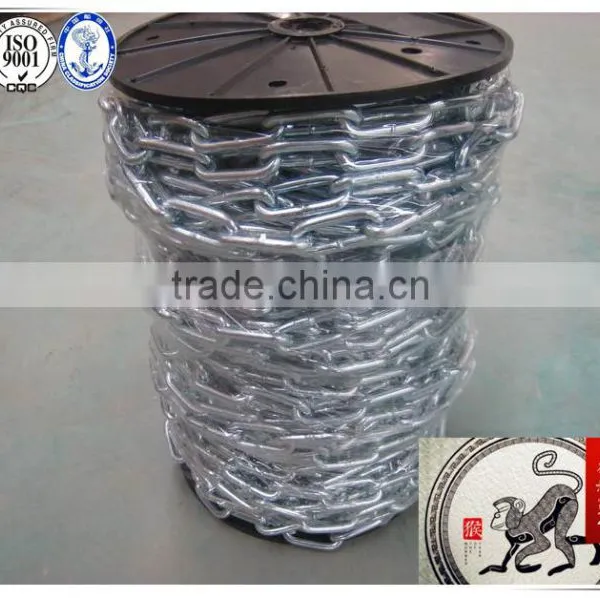

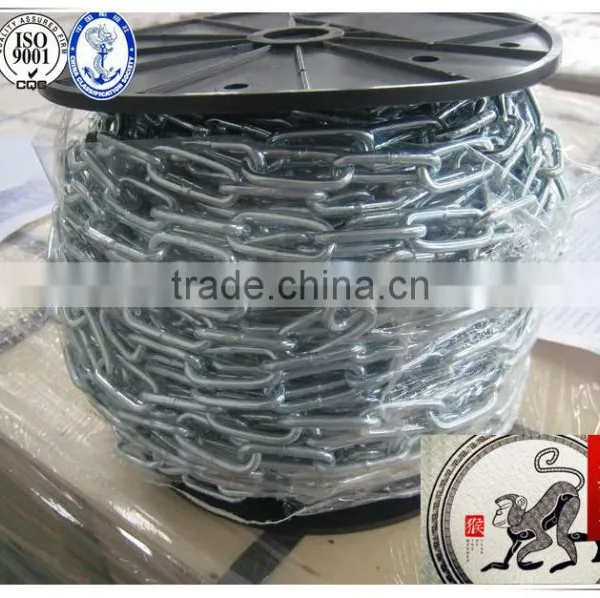

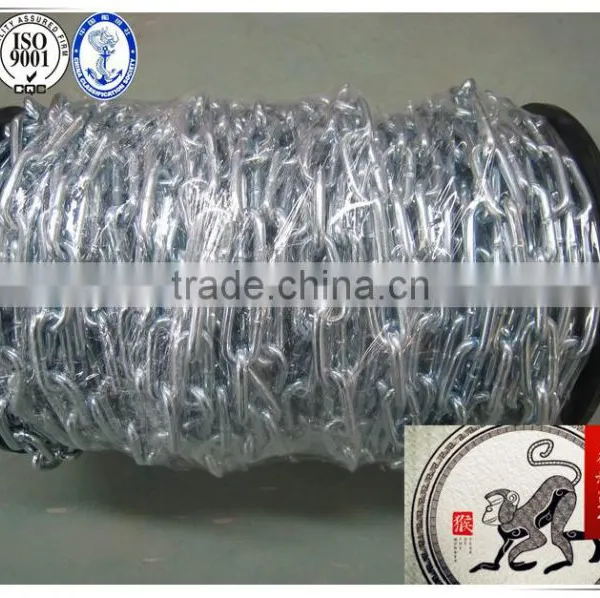

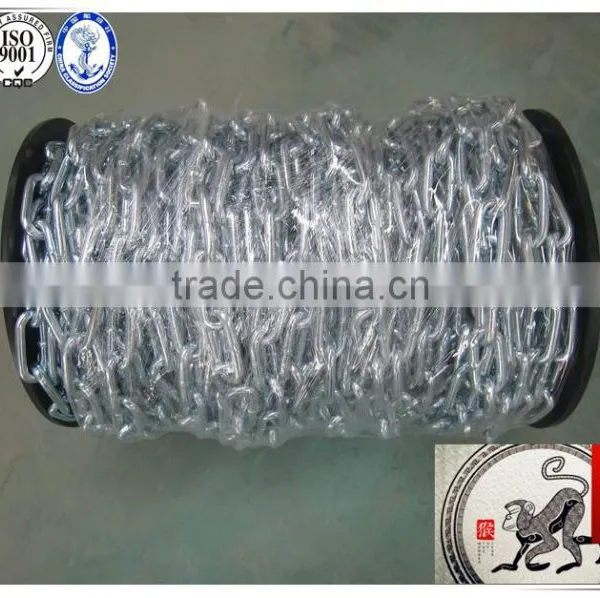

2016 New stainless steel link chain

FOB Price

USD $1 - $1,000 / Meter

10 Meters(Min.Order)

Supply Ability 12000 Ton / Tons per Month
Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	QINGDAO TAI STAR MACHINERY CO .,LTD, TSD
Model Number	G80 Anchor Chain	Structure	Other, Welded Chain, Welded Chain
Function	Other, Anchor chain	Material	Other, Alloy, Stainless Steel
Standard or Nonstandard	Standard

Product Description

SIZE DxL mm	Width		Approx Weight kg/m	Work limit load KN	Test Load KN	Breaking Load min. KN
SIZE DxL mm	Inside min. B1	Outside max. B2	Approx Weight kg/m	Work limit load KN	Test Load KN	Breaking Load min. KN
6×18	7.5	21	0.79	1.1	27	45.2
7×21	9	24.5	1.07	1.5	37	61.6
8×24	10	28	1.38	2	48	80.4
10×30	12.5	35	2.2	3.2	76	125
11×43	12.6	36.5	2.33	3.8	92	154
12×36	15	42	3.1	4.6	109	181
12.5×38	15.5	42.2	3.3	4.9	117	196
13×39	16.3	46	3.8	5	128	214
14×42	18	49	4.13	6.3	150	250
14×50	17	48	4	6.3	150	250
15×46	20	52	5.17	7	168	280
16×48	20	56	5.63	8	192	320
16×49	24.5	59.5	5.71	8	192	320
16×64	23.9	58.9	5.11	8	192	320
18×54	23	63	6.85	10	246	410
18×64	21	60	6.6	10	246	410
19×57	23.7	63.2	7.7	11.3	270	450
20×60	25	70	8.6	12.5	300	500
22×65	28	74.2	10.7	15.3	366	610
22×66	28	77	10.2	15.3	366	610
22×86	26	74	9.5	15.3	366	610
24×72	32	82	12.78	18	432	720
24×86	28	79	11.6	18	432	720
26×78	35	91	14.87	21.3	510	850
26×92	30	86	13.7	21.3	510	850
30×90	38	105	19.6	28.3	678	1130
30×108	34	98	18	28.3	678	1130
32×96	40	106	22.29	32.2	772	1286
34×126	38	109	22.7	36.3	870	1450
34×102	46.5	121.5	25.5	36.3	870	1450
36×108	49.5	128.5	31	40.7	978	1630
38×137	42	121	29	45.3	1086	1810
38×114	52	136	32	45.3	1086	1810
42×126	55.5	144.5	38.6	55.4	1332	2200

Accessories

ANCHOR	JIS STOCKLESS ANCHOR
	BALDT ANCHOR
	HALL ANCHOR
ANCHOR CHAIN	OPEN/STUDLESS LINK CHAIN
ANCHOR CHAIN	STUD LINK CHAIN
CHAIN	English standard link chain	English standard Short link chain
		English standard Medium link chain
		English standard Long link chain
	American standard link chain	American standard Proofcoil chain ASTM80(G30)
		American standard High test chain ASTM80(G43)
		American standard Transport chain ASTM80(G70)
		American standard Proofcoil chain NACM90(G30)
		American standard Proofcoil chain NACM96(G30)
	Germanic standard link chain	Germanic standard DIN763 link chain
		Germanic standard DIN764 link chain
		Germanic standard DIN766 link chain
		Germanic standard DIN5685 A/C link chain
	Australian standard link chain	Australian standard Short link chain
		Australian standard Medium link chain
		Australian standard Long link chain
	Russia standard link chain
	Dobber chain
	Hatch board chain
	Binding chain
	Lifting chain
	High tensility chain for mining
	High intensity chain
ANCHOR ACCESSORIES	Anchor shackle
	Joint shackle
	Kenter shackle
	Swivel
SHACKLE	European Type Anchor Shackle SH01
	European Type D Shape Shackle SH02
	US Type Shackle G210 G209 SH06/SH05
	US Type Shackle G2150 G2130 SH08/SH07
	JIS Type Shackle SH19
OTHER PRODUCTS	CHAIN TENSIONER
	TOWING RING/CHIN BRACKET
	BOLLARD
	U-ANCHOR
	EC-3ANCHOR

Packaging & Shipping

Company Information

Qingdao Tai Star Machinery Co.,Ltd.establish in 1996, is one of leading companies in China,specializing in producing anchor chain and chain.

Our compangy is located in Qingdao City,the area of our compang is about 40,000 square meters,and have fixed assets RMB90,000,000, our company have 200 employees,10 engineers and 30 professional technicians, factory yearly capacity is about 12,000 tons

We can manufacture Grade 1,Grade 2 and Grade 3 stud&studless anchor chain as well as various chain accessories. We can also manufacture English standard,American standard,German standard,and Russian standard chain,and high test chain,widely used in ship,mining,pulling,binding,lifting and so on,with diameter from 6mm to 70mm. Meanwhile,we can process special specification welded chain and chain assemblies according to sample or drawing of clients. Our products sell well at home and abroad,was favourably reviewed.

FAQ

1. Are you a factory or a trading company?

We are a factory manufacturing,established in 1996,is one of leading companies in China,specializing in producing anchor chain and chain.

Our company is located in Qingdao China. The area of our factory is about 40,000 square meters, and has fixed assets RMB 90,000,000,it also has 200 employees, factory yearly capacity is about 12, 000 tons.

2. How do you ensure quality?

We have strict self inspection mechanism, Third party inspection is accepted

Guaranteeing quality inspection of each product before assembly and packing.

3. Where are your customer?

After 20 years of development,our customers all over the world.Our products sell well at home and abroad,was favourably reviewed.
