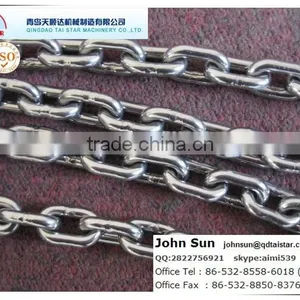

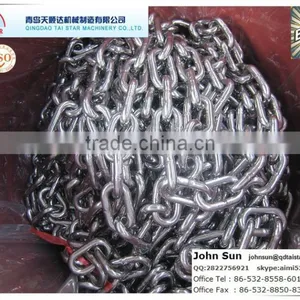

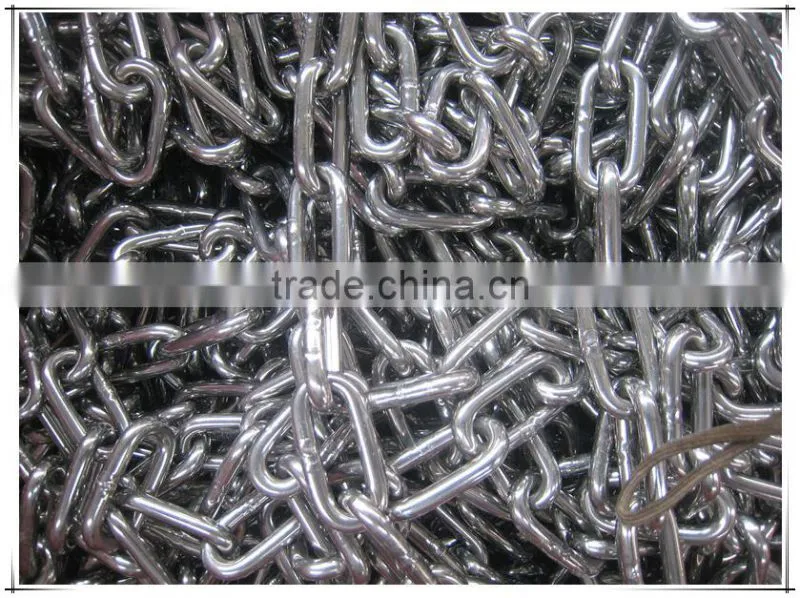

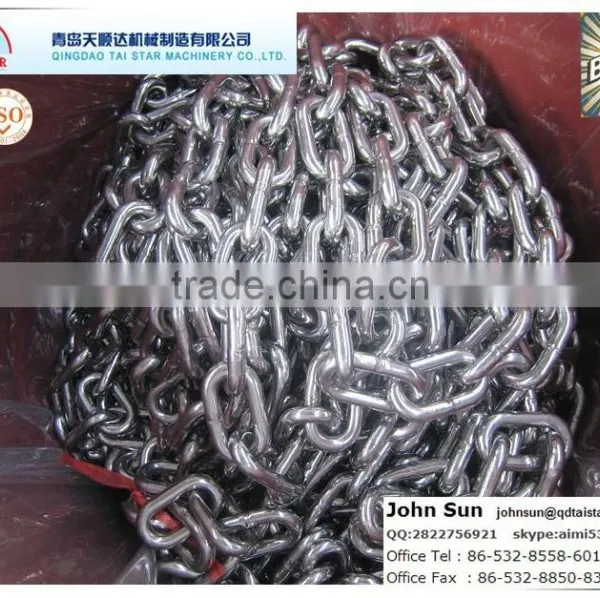

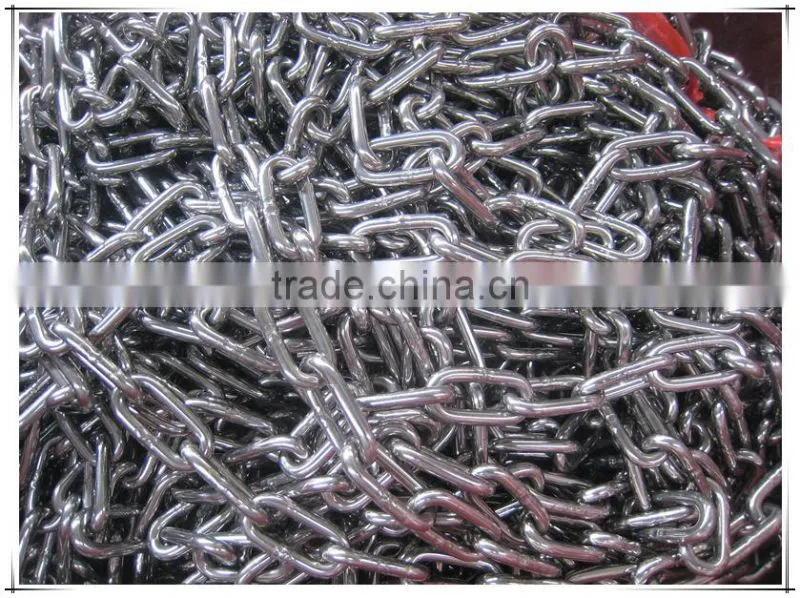

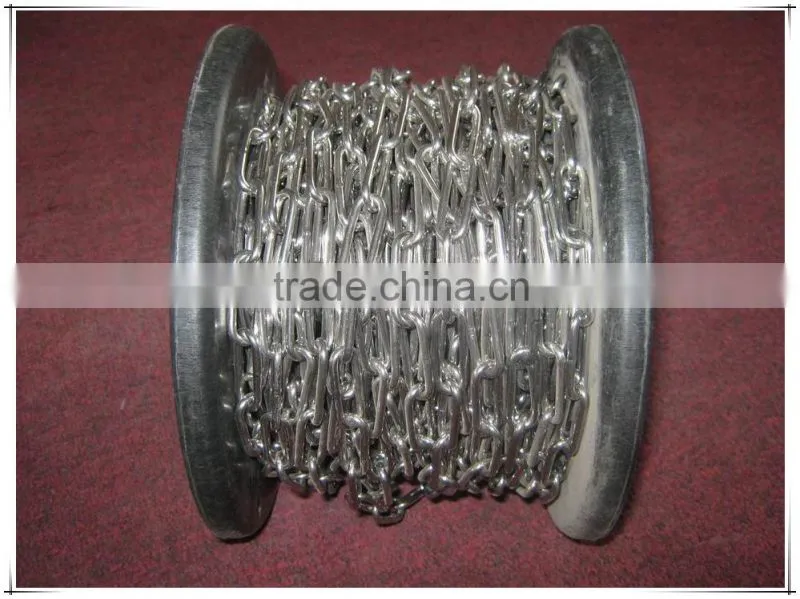

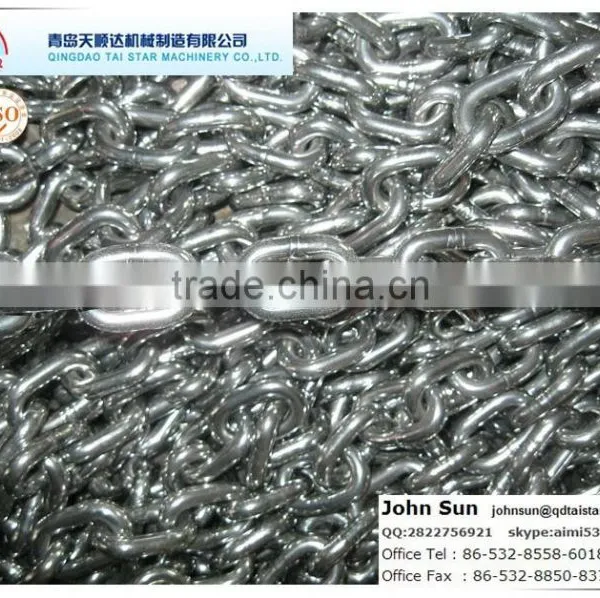

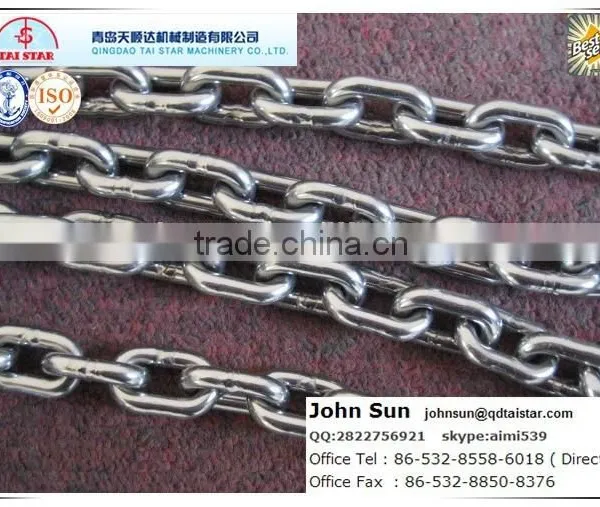

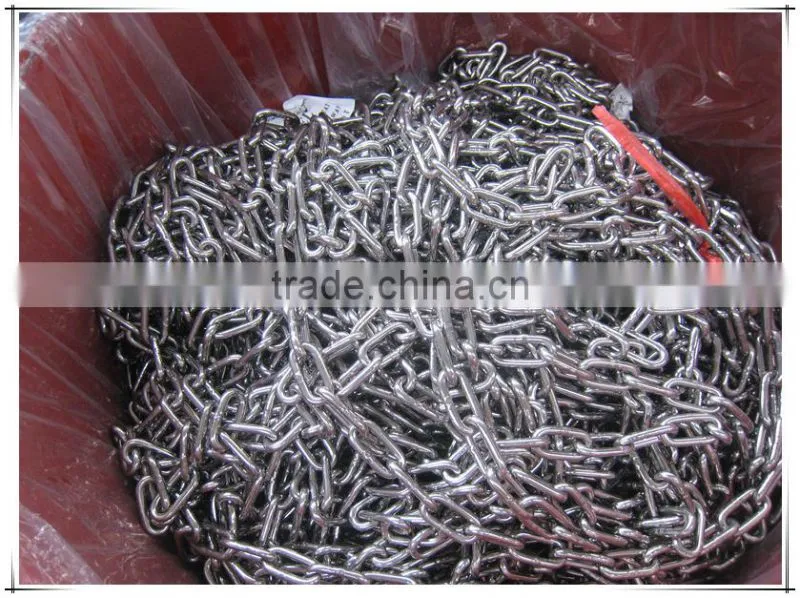

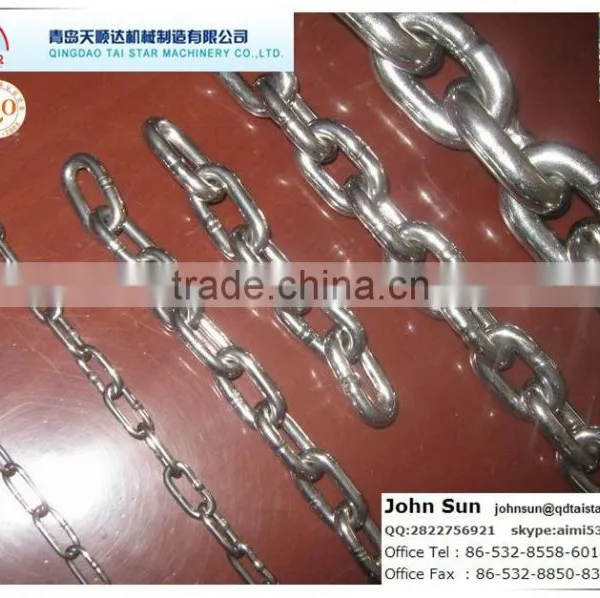

Welded Din763 Marine Link Chain Or Anchor Chain

FOB Price

USD $1 - $1,000 / Meter

10 Meters(Min.Order)

Supply Ability 12000 Ton / Tons per Month
Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	QINGDAO TAI STAR MACHINERY CO .,LTD
Model Number	stud link chain	Structure	Welded Chain
Function	Other, Anchor chain	Material	Alloy
Standard or Nonstandard	Standard

Product Description

D SIZE		L INSIDE LENGTH		W OUTSIDE WIDTH		WORK LIMITED LOAD	PROOF LOAD	BREAKING LOAD	KG/M
MM	±MM	MM	±MM	MM	±MM	KG	N	N	KG
2	0.5	22	1.0	8	0.4	25	800	1250	0.06
2.5		24	1.1	10	0.5	40	800	2000	0.10
3		26	1.2	12	0.6	55	1050	3200	0.15
3.5		28	1.3	14	0.7	80	1540	3850	0.20
4		32	1.5	16	0.8	100	2000	6000	0.27
4.5		34	1.7	18	0.9	128	2500	6300	0.35
5		35	1.8	20	1	160	3150	10000	0.43
5.5		38.5	1.8	22	1.1	195	3800	9500	0.52
6		42	2.0	24	1.2	224	4500	14000	0.63
7		49	2.5	28	1.4	300	6000	18000	0.86
8	1	52	2.5	32	1.6	400	8000	25000	1.10
8.5		56	2.8	34	1.7	460	9000	22500	1.25
9		59	3.0	36	1.8	530	10500	32000	1.41
10		65	3.2	40	2	630	12500	40000	1.75
11		72	3.4	44	2	790	15800	47500	2.11
12		78	3.6	48	2.3	940	18800	56500	2.55
13		82	4.0	52	2.5	1000	21200	63000	2.95
16		100	5.0	64	3.2	1600	33000	100000	4.45
18		113	5.2	70	3.2	2120	42300	127000	5.65
19		119	5.6	72	3.4	2370	47300	142000	6.25
20		120	6.0	75	3.8	2500	50000	160000	7.00
22		127	6.0	82	4	3170	63300	190000	8.55
25		140	6.6	85	4.2	4090	81700

Accessories

ANCHOR	JIS STOCKLESS ANCHOR
	BALDT ANCHOR
	HALL ANCHOR
ANCHOR CHAIN	OPEN/STUDLESS LINK CHAIN
ANCHOR CHAIN	STUD LINK CHAIN
CHAIN	English standard link chain	English standard Short link chain
		English standard Medium link chain
		English standard Long link chain
	American standard link chain	American standard Proofcoil chain ASTM80(G30)
		American standard High test chain ASTM80(G43)
		American standard Transport chain ASTM80(G70)
		American standard Proofcoil chain NACM90(G30)
		American standard Proofcoil chain NACM96(G30)
	Germanic standard link chain	Germanic standard DIN763 link chain
		Germanic standard DIN764 link chain
		Germanic standard DIN766 link chain
		Germanic standard DIN5685 A/C link chain
	Australian standard link chain	Australian standard Short link chain
		Australian standard Medium link chain
		Australian standard Long link chain
	Russia standard link chain
	Dobber chain
	Hatch board chain
	Binding chain
	Lifting chain
	High tensility chain for mining
	High intensity chain
ANCHOR ACCESSORIES	Anchor shackle
	Joint shackle
	Kenter shackle
	Swivel
SHACKLE	European Type Anchor Shackle SH01
	European Type D Shape Shackle SH02
	US Type Shackle G210 G209 SH06/SH05
	US Type Shackle G2150 G2130 SH08/SH07
	JIS Type Shackle SH19
OTHER PRODUCTS	CHAIN TENSIONER
	TOWING RING/CHIN BRACKET
	BOLLARD
	U-ANCHOR
	EC-3ANCHOR

Packaging & Shipping

Company Information

Qingdao Tai Star Machinery Co.,Ltd.establish in 1996, is one of leading companies in China,specializing in producing anchor chain and chain.

Our compangy is located in Qingdao City,the area of our compang is about 40,000 square meters,and have fixed assets RMB90,000,000, our company have 200 employees,10 engineers and 30 professional technicians, factory yearly capacity is about 12,000 tons

We can manufacture Grade 1,Grade 2 and Grade 3 stud&studless anchor chain as well as various chain accessories. We can also manufacture English standard,American standard,German standard,and Russian standard chain,and high test chain,widely used in ship,mining,pulling,binding,lifting and so on,with diameter from 6mm to 70mm. Meanwhile,we can process special specification welded chain and chain assemblies according to sample or drawing of clients. Our products sell well at home and abroad,was favourably reviewed.

FAQ

1. Are you a factory or a trading company?

We are a factory manufacturing,established in 1996,is one of leading companies in China,specializing in producing anchor chain and chain.

Our company is located in Qingdao China. The area of our factory is about 40,000 square meters, and has fixed assets RMB 90,000,000,it also has 200 employees, factory yearly capacity is about 12, 000 tons.

2. How do you ensure quality?

We have strict self inspection mechanism, Third party inspection is accepted

Guaranteeing quality inspection of each product before assembly and packing.

3. Where are your customer?

After 20 years of development,our customers all over the world.Our products sell well at home and abroad,was favourably reviewed.
