Specifications
Protractor Sensor1, High accuracy
2, Fast response
3, High accuracy
4, 1 year warranty
Standard Inclinometer Protractor Sensor MEMS Clinometer Good with Buit-in High Precision Differential Converter
General Description

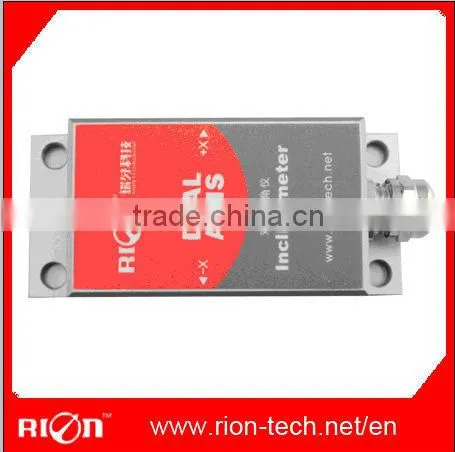

SCA126T is a serial output dual-axis inclinometer launched by RION company to the field of industrial control, built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, CAN,MODBUS are optional.
Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.
Features:
Dual-Axis Inclinometer Measuring Range :±1~±90° optional
Accuracy: refer to the technical data Wide voltage input: 9~36V
Wide temperature working: -40~+85°C Resolution: 0.01°
IP67 protection class Highly anti-vibration performance >2000g
Direct lead cable interface Small size :90×40×26mm(customized)
Output mode RS232/RS485/RS422/PWM/CAN (optional)
Application:
Satellite positioning Search Rail-mobile monitoring
engineering mechanical measurement of dip angle oil-well drilling equipment
Radar detection of vehicle platform Underground drill posture navigation
Gun Barrel angle measurement in early shooting Based on the angle direction measurement
Satellite communications vehicle posture detection Shield pipe jacking application
Ship’s navigation posture measurement Geological equipment inclined monitoring
Order infomation:
Technical Data
