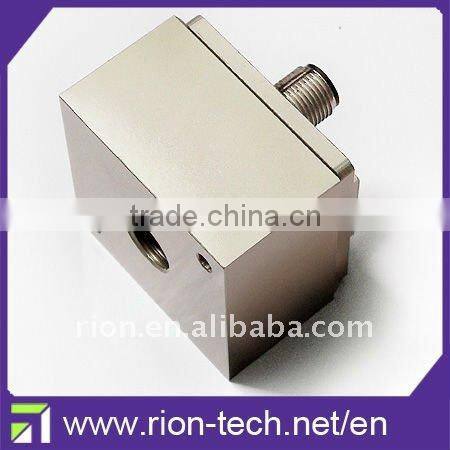

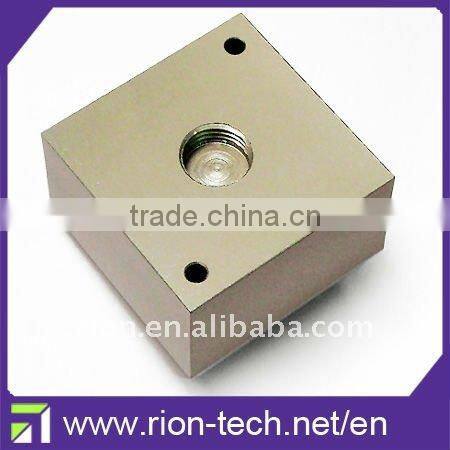

Single Axes Analog Output Accelerometer Sensor Vibration Sensor

Specifications

single axes analog output accelerometer sensor vibration sensor

Product Description:

  AKE19T is single axis acceleration mete that RION company imports Switzerland Patented Technology, which is one of accelerometer sensors used widely. It is used in inertia and tilt measurement. It has functions of firm structure, low power, excellent stability to promise reliability of good output.
  AKE19T is a capacitive sensor of single crystal silicon. A silicon chip is handled by micro-machine, which applies in low power, signal adjusted  ASIC, storing compensation value of  processor and temperature of inductor. Features of the product are low power, passed standardization, kept structure sturdy, and output stable.  It provides solid power source, protect totally for overpower. The stability and deviation value is less than 0.1% during whole procedure. Regarding AKE19T, The typical value to deviation of temperature modulus is 100μg/degrees celsius, and the scaling factor of temperature is 100ppm/degrees celsius.

Features:
1:Highest performance accelerometer available
2:Excellent turn-on repeatability and stability performance
3:Analog output
4:Field-adjustable range
5:Dual built-in self test
6:Internal temperature sensor for thermal compensation
7:According to the ISO9001 standard

8:Size:32*32*32mm

Applications:
1:Crash records, monitoring and prediction of fatigue
2:End winding vibration monitoring of hydro generators,large electric motors
3:Free field,building-structure observations
4:Artificial blast observations
5:Site safety evaluation and low-frequency vibration measurements at dams
6:Large bridges
7:Railway stations and tunnels
