High Accuracy Level Inclinometer Sensor, Boom Lift Angle Sensor, High Response Frequency Angle Control Sensor
HCA520T is a high accuracy dual axis inclinometer with analog voltage output,small measuring range and the highest precision up to 0.003 °, it is one of the few high-precision inclinometers in mainland. It is mainly used to measure the inclination of the object with respect to the horizontal plane , built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
Features:
Dual-Axis Inclinometer Measuring Range :±1~±90° optional
Accuracy refer to the technical data Wide voltage input: 9~36V
Wide temperature working: -40~+85°C Resolution: 0.001°
IP67 protection class Highly antibration performance >2000g
Small size :90×50×28mm(customized) Water-proof air-plug connector
Application:
Satellite positioning Search Rail-mobile monitoring
engineering mechanical measurement of dip angle oil-well drilling equipment
Radar detection of vehicle platform Underground drill posture navigation
Gun Barrel angle measurement in early shooting Based on the angle direction measurement
Satellite communications vehicle posture detection Shield pipe jacking application

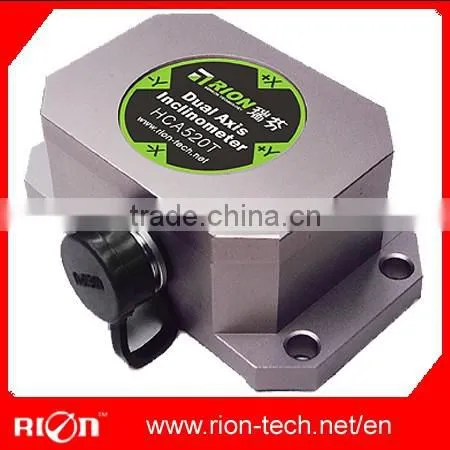

Product Show
Ordering information

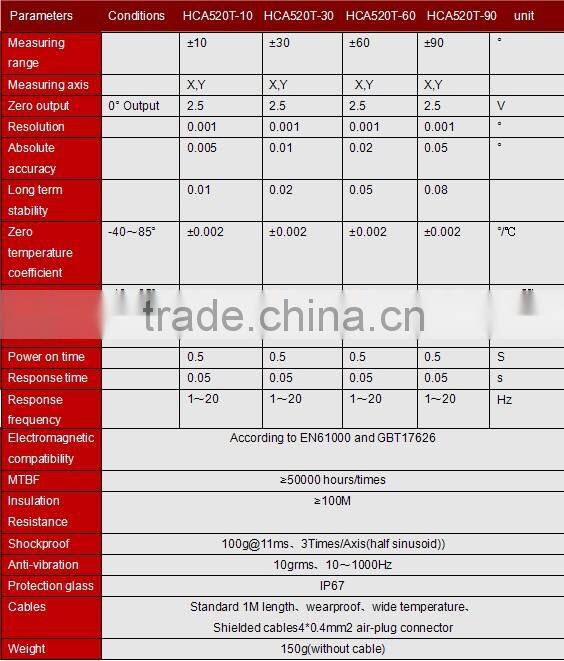

Technical Data
Dimension
Measuring Directions&Fix
Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.
Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.
You satisfaction is our ultimate destiny.
Certificates & Honor
Company Information
Packaging: carton with sponge
We will ship your order within 7 business days after we receive the full payment.
If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.
One year warranty is provided, during that period, we exchange and fix the malfunction item forfree, and still we take care of products for its lifetime.
we are position sensor solution expert, full service and support before, in the middle of and after sales would be provided.
We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
