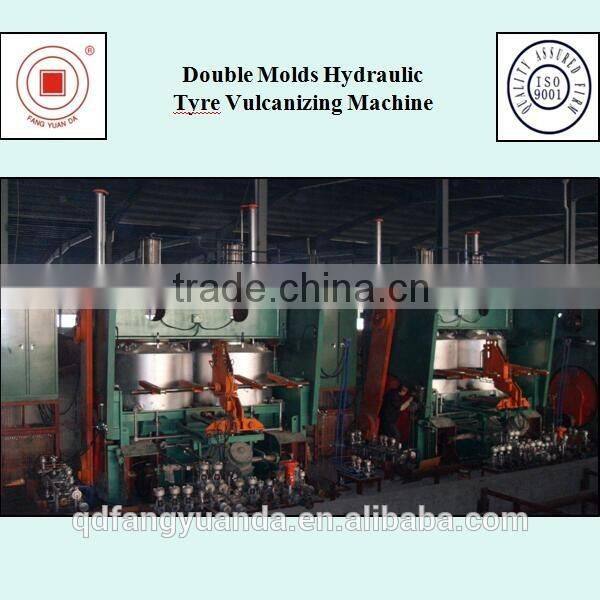

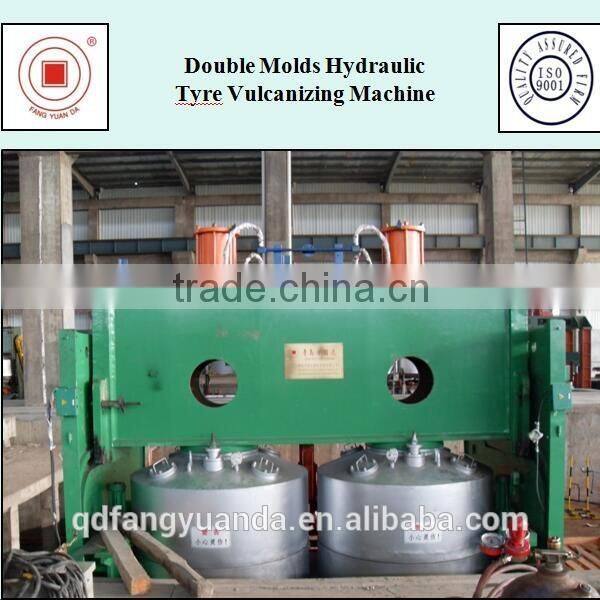

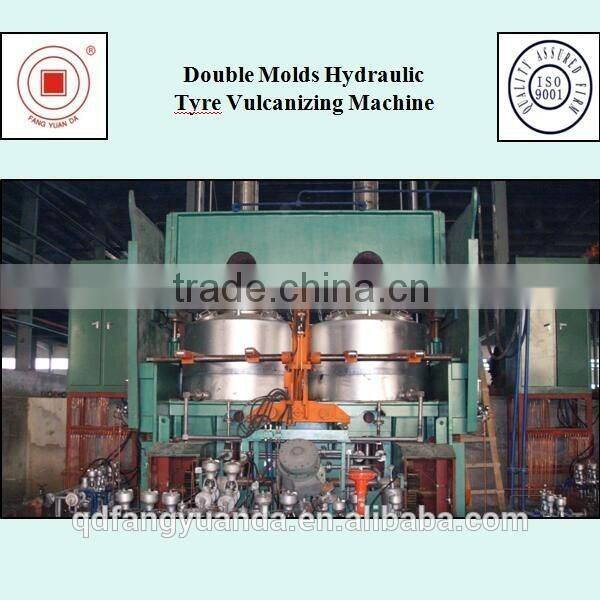

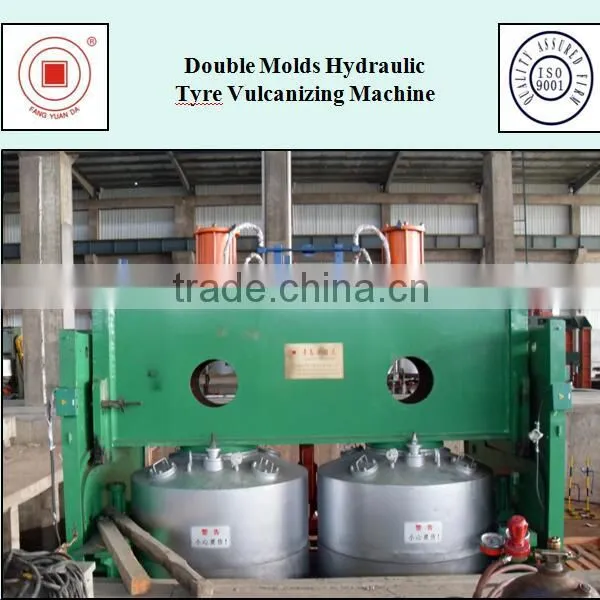

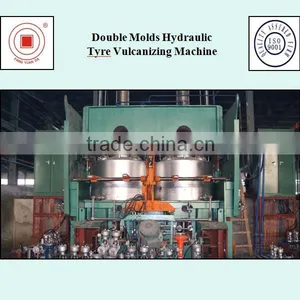

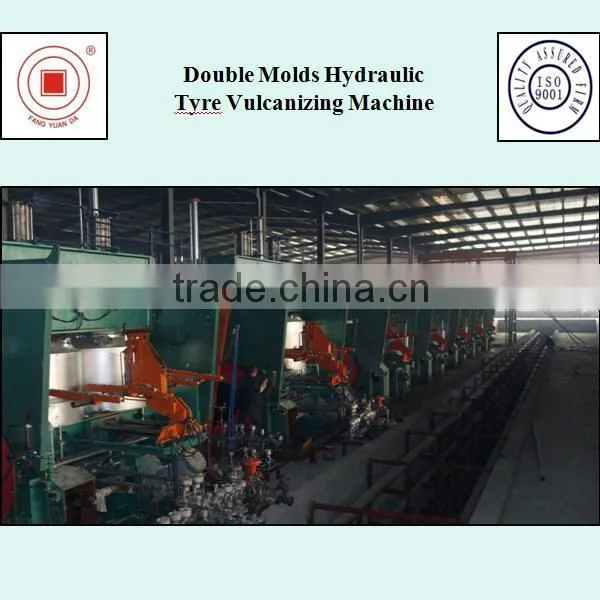

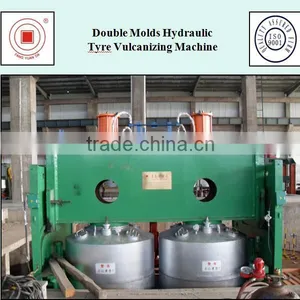

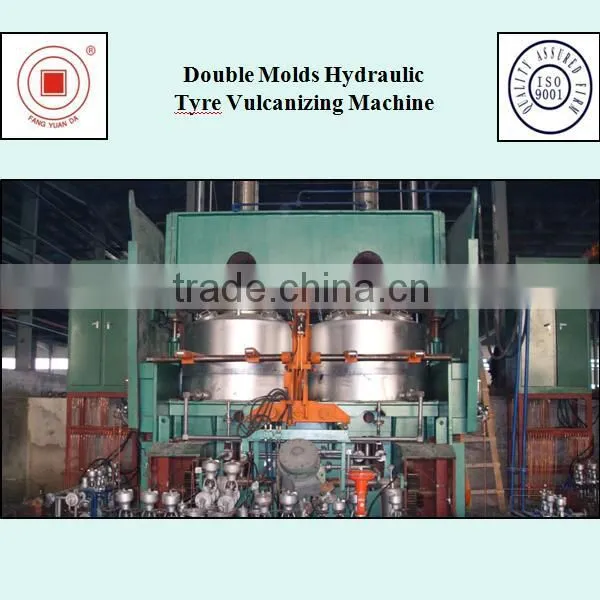

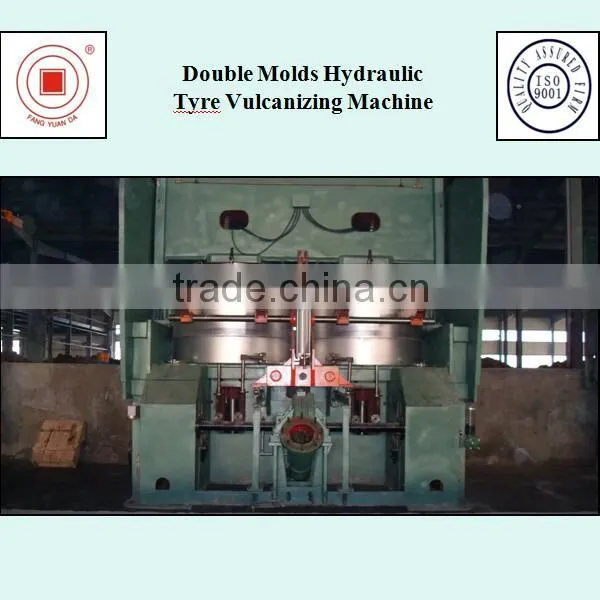

Double Molds Hydraulic Tyre Vulcanizing Machine
We manufacture many and various tyre achine including tyre vulcanizing machine, tyre mold, tyre building drum, etc. with more than 20 years' OEM and ODM expeience.
Hydraulic Tyre Vulcanizing Machine - Characteristics
- This hydraulic tyre vulcanizing machine is Hydraulic Horizontal-Moving tire curing press and has double molds. Its beam movement type is vertical lift and translation.
- This hydraulic tyre vulcanizing machine can be configured with electric mold adjusting device, segmented mold driving device, tyre post inflation device, etc. according to user's request.
- Heating type: Steamer Type.
- The vulcanization pipe system can be customized.
- There are single and double or three station tyre holders for customers to choose.
- The control system adopts imported electrical components, high degree of automation control.
Hydraulic Tyre Vulcanizing Machine - Applications
This hydraulic tyre vulcanizing machine is applicable to vulcanize green tyre, such as heavy & light truck radial tyre and bias tyre. And it is applicable to the Nitrogen vulcanization or steam vulcanization process.
Hydraulic Tyre Vulcanizing Machine - Mechanism Features
- The type of center mechanism is BOM.

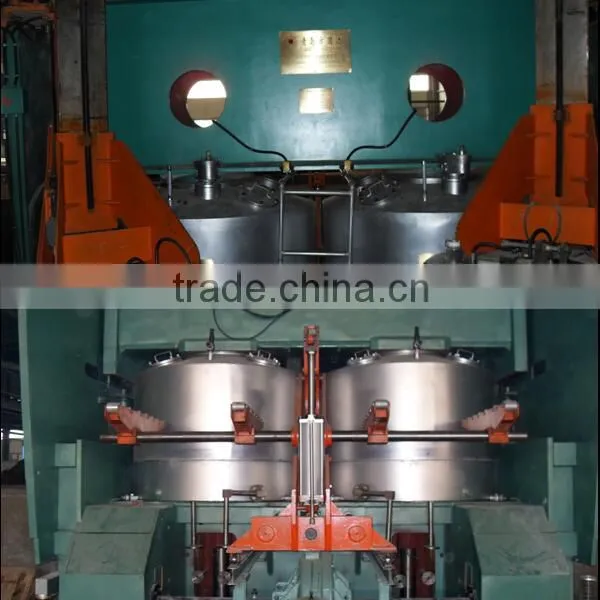

- This hydraulic tyre vulcanizing machine is equiped with double-column manipulator, trolley type double cylinder unloading mechanism and front lever type demoulding mechanism.
- This hydraulic tyre vulcanizing machine adopts PLC programmable controller as the control core. Based on industrial computer man-machine interface, users can realize the vulcanization process parameter setting as well as real-time data acquisition, preservation, alarm and visual query of historical parameters when vulcanizing.
- This hydraulic tyre vulcanizing machine has Ethernet interface and supports cluster vulcanizing machine network.
Hydraulic Tyre Vulcanizing Machine - Specifications of Some Size
Item |
Unit |
Specification |
|||
1400 |
1600 |
1665 |
|||
Vulcanizing Chamber Number |
|
2 |
2 |
2 |
|
Stay-warm Case of Vulcanizing Chamber Inner Diameter |
mm |
Φ1400 |
Φ1620 |
Φ1665 |
|
Maximum Mold Clamping Force |
kN |
2890×2 |
4300×2 |
4340×2 |
|
Vulcanizing Model Height |
mm |
241-445 |
254-935 |
350-635 |
|
Structural Style of Center Mechanism |
|
BOM |
BOM |
BOM |
|
Diameter of Applicable Bead Ring |
In |
16-20 |
16-24.5 |
18-24 |
|
Maximum External Diameter of Vulcanized Tyre |
Segment Mold |
mm |
Φ1000 |
Φ1135 |
Φ1200 |
Two Piece Mold |
mm |
Φ1070 |
Φ1235 |
Φ1300 |
|
Maximum Thickness of Vulcanized Tyre |
mm |
360 |
490 |
490 |
|
Maximum Height of Tyre |
mm |
750 |
750 |
890 |
|
Theoretical Time of Opening /Closing Mold |
S |
60 |
58 |
78 |
|
Maximum Weight that Manipulator can grasp |
kg |
100 |
100 |
100 |
|
Maximum Weight of Mold |
kg |
5500 |
6500 |
6500 |
|
Maximum External Pressure of Vulcanization Medium |
Mpa |
|
1.4 |
|
|
Maximum Internal Pressure of Vulcanization Medium |
Mpa |
|
2.8 |
|
|
Dynamic Water Pressure |
Mpa |
|
2.1-2.5 |
|
|
Dynamic Air Pressure |
Mpa |
|
0.7 |
|
|
Control Air Pressure |
Mpa |
|
0.35 |
|
|
FANGYUANDA is a manufacturing company specialized in producing tyre machine, tyre vulcanizing machine, tyre vulcanizer, tyre mould and tyre building drum. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant hydraulic tyre vulcanizing machine (105-212 inch hydraulic tyre vulcanizing machine) and all-steel giant segmented tyre mold (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered tyre machine and tyre vulcanizing machine and tyre mold industry.
- According to your drawings, we can manufacture quality equipment.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant hydraulic tyre vulcanizing machine and segment tyre mold by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
1. Are you a trade company or manufacturer?
We are a manufacturer located in Qingdao City, Shandong Province, China. We have accumulated more than 20 years' manufacturing experience in tyre mold, tyre vulcanizing machine, tyre making machine, tyre building drum, etc.
2. Do you have own export license?
Yes, we have our own export license and we started exporting in 2008. We have exported our equipments to Begium, America, Brazil, Korea, Sir Lanka, India, Iran, Ethiopia, and many other countries.
3. Does your company accept OEM/ODM?
Yes, we have more than 20 years' OEM and ODM experience. You can send us your drawings, we can design and produce as your request.
We welcome your visiting to our factory for further discussion.
