Factory Supplying Low Cost High Accuracy Digital Compass IP67 Protection

Factory Supplying Low Cost High Accuracy Digital  Compass  IP67 Protection

Description :

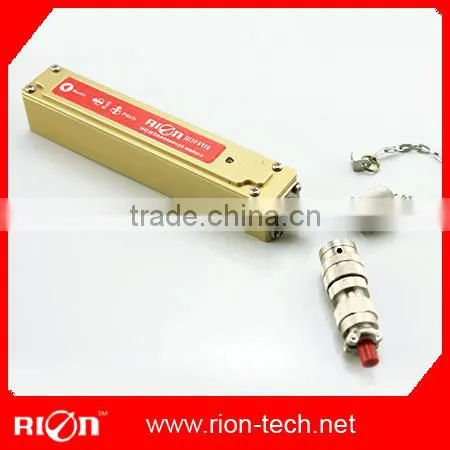

HCM505B is a high accuracy 3D compass single board, elongated volume,the width is only 1.6CM, sealed in aluminum enclosure with IP67 water-proof grade, more suitable for drilling measurement. it uses advanced hard iron and soft iron calibration algorithm,it can still provide the high precision heading information in the roll angle 360 ° to any toolssurface .it has the characteristics of small and low power consumption, and more suited to today's miniaturization sensitive measurement system.

  HCM500B integrated patented three -axis fluxgate technology, real-time solver heading data through CPU , and use a three-axis accelerometer to proceed with heading compensation for a wide range tilt angle, belongs to the high-performance, high stabilitymilitary grade products , HCM500B with small size, low power consumption, widely used in the antenna securely, vehicle and system integration etc. many fields .

Features:

• Heading accuracy: 0.3°~0.5°
• Roll angle measuring range :±180°
• Tilt angle resolution: 0.1°
• Tilt angle accuracy: 0.2°
• With hard magnetic ,soft magnetic and angle compensation
• Size: L113×W20×H20mm
• Standard RS232/RS485/TTL output interface
• Wide temperature : -40°C~+85°C

Applications:

• Satellite antenna search satellite
•  Marine navigation surveying and mapping
• GPS integrated navigation
• Antenna servo control
• Gun emission system
• Infrared imager
• Laser range finder
• Map for plotter
• ROV underwater robot navigation
• Oceanography measurement instruments
• Special occasion robot
• Unmanned aircraft

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products
