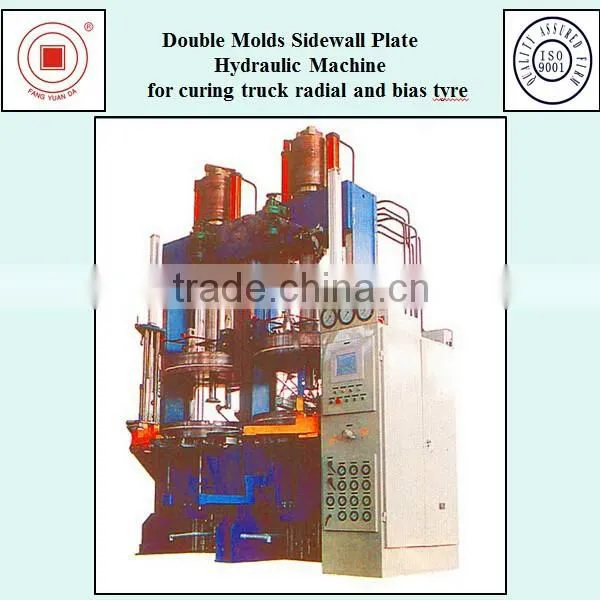

Double Molds Sidewall Plate Hydraulic Machine for Curing Radial and Bias Tyre
Hydraulic Machine - Characteristics
- This hydraulic machine is hydraulic tire curing press with sidewall plate. It adopts dual mode framework and independent unit structure.
- Beam movement type: Vertical lift. Heating type: Platen Type.
- The vulcanization pipe system can be customized.
- This hydraulic machine adopts that one hydraulic power unit drives one or five tire curing presses. The speed regulation of opening and clamping mould is taken the proportional control technology.
- This hydraulic machine can be configured with electric mould adjusting device, segmented mould driving device, tyre post inflation device and tyre holder, ect. according to the customer's request.
- The control system adopts imported electrical components, high degree of automation control.
Hydraulic Machine - Applications
This hydraulic machine is applicable to vulcanize truck radial tire and bias tire. And it is applicable to the Nitrogen vulcanization or steam vulcanization process.
Hydraulic Machine - Mechanism Features
- The type of center mechanism is BOM.
- The guide system of mould opening and clamping is adopted by roller guide and the clamping mechanism is used lateral plate bolt. Every mould is pressurized by 6 cylinders.
- This hydraulic machine is equiped with double-column manipulator and swing unloading mechanism.
- This hydraulic machine adopts PLC programmable controller as the control core. Based on industrial computer man-machine interface, users can realize the vulcanization process parameter setting as well as real-time data acquisition, preservation, alarm and visual query of historical parameters when vulcanizing.
- This hydraulic machine has Ethernet interface and supports cluster vulcanizing machine network.
Hydraulic Machine - Specifications of Some Size
Specification |
45 inch |
48 inch |
51 inch |
55 inch |
Catgory of Vulcanized Tyre |
Ordinary Cover Tire and Radial Tire |
Ordinary Cover Tire and Radial Tire |
Ordinary Cover Tire and Radial Tire |
Ordinary Cover Tire and Radial Tire |
Heating Method |
Platen |
Platen |
Platen |
Platen |
Inner Diameter of Vulcanizing Chamber Shield |
1140 mm |
1220 mm |
1280 mm |
1310 mm |
Maximum Mold Clamping Force |
1360 KN |
1960 KN |
2200 KN |
2940 KN |
Model Height |
178-381 mm |
190-430 mm |
220-430 mm |
320-450 mm |
Diameter Range of Tire Bead |
12-18 |
12-18 |
14-19 |
12-22 |
Maximum Height of Green Tire |
370 mm |
500 mm |
580 mm |
600 mm |
FANGYUANDA is a manufacturing company specialized in producing hydraulic machine, tire vulcanizer, tire mold and building drum. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant tire vulcanizing machine (105-212 inch tire vulcanizer) and all-steel giant segmented tire mold (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered rubber machinery and tire vulcanizer, hydraulic machine and tire mold industry.
- According to your drawings, we can manufacture quality products.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant tire vulcanizer and segment mold by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
1. Are you a trade company or manufacturer?
We are a manufacturer located in Qingdao City, Shandong Province, China. We have accumulated more than 20 years' manufacturing experience in tire mold, tire curing press, tire vulcanizing machine, tire building drum, hydraulic machine, etc.
2. Do you have own export license?
Yes, we have our own export license and we started exporting in 2008. We have exported our equipments to Begium, America, Brazil, Korea, Sir Lanka, India, Iran, Ethiopia, and many other countries.
3. Does your company accept OEM/ODM?
Yes, we have more than 20 years' OEM and ODM experience. You can send us your drawings, we can design and produce as your request.
We welcome your visiting to our factory for further discussion.
