Specifications
this line is used to remove fresh and dry shell of walnut to get walnut kernelsthis line suits for Round walnuts
Carrot washing machine
1. Potato/Carrot Washer Machine is made of food grade stainless steel;
2. Applicable to all types of fruit and vegetable;
3. This machine is mainly used in food processing line and factories.
Potato/Carrot Washer Machine Type:
Belt washer / Drum washer/ Brush washer
Model |
Output (Kg/h) |
Power (Kw) |
Water consumption |
Steam consumption |
Processing time(min) |
Dimension (L*W*H,m) |
HY-1-5 |
500 |
6.8 |
5M3/h |
0.4 T/h |
3-20 |
18*2.7*1.7 |
HY-1-10 |
1000 |
7.0 |
8 M3/h |
0.5 T/h |
20*2.8*1.7 |
|
HY-1-20 |
2000 |
8.9 |
12 M3/h |
0.8 T/h |
23*2.8*1.7 |
|
HY-1-30 |
3000 |
11.4 |
15 M3/h |
1.5 T/h |
25*2.9*1.7 |
|
HY-1-40 |
4000 |
12.2 |
20 M3/h |
2.0 T/h |
28*3.0*1.7 |
A. Double bubble washer
The machine frame 30 * 60 * 1.5 stainless steel square tube; guide rail make of 3#mm SUS 304 angle iron. Protect panle make of 20mm,hem make of nylon .the body make of SUS 304. Power with 0.75 kw variable speed motor. The transport belt make of plastic steel, center width 700mm, with high pressure cycle water pump and air pump .

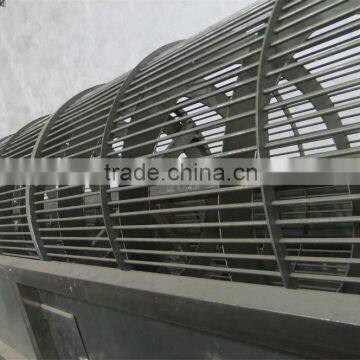

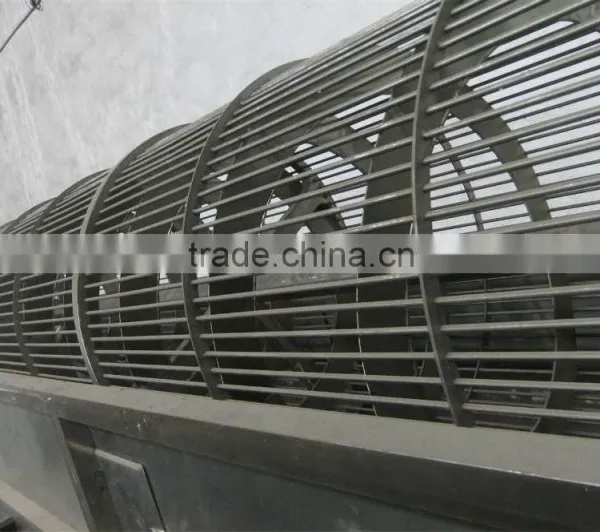

B. Drum/Roll washer
Through the chain, the motor sproket wheel drives the sproket wheel on the long shaft, and then through the engagement of the sproket wheel of transition shaft and stainless steel chain on the roller, the roller starts to rotate. After entering into the roller, the materials will be washed by the spraying tube and scrubbed by the scrubbing btush so as to realize the cleaning effect. There are two water tanks at the bottom of the roller. The tank near to the material inlet side is cleaner tank, which connects with clear water through the water inlet pipe. The tank near to the material outlet side is circulating water tank, which contains the water coming from the roller after it washes the materials, and the water can be reused after being filtered by the filter screen in the water tank.

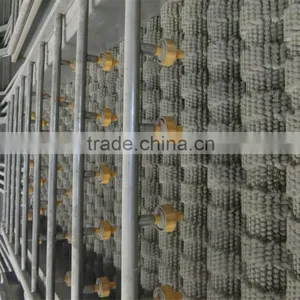

C.Brush washer
This machine can clean and peel the roll and longilineal vegetables, such as carrot, white turnip, potatoes, sweet potatoes, apples, oranges, chinese yam, ginger and so on.
It can clean and peel continous, save water, easy to operate and long operating life.
This machine is made of stainless steel. It is suitable for cleaning and peeling various of vegetables.
Potato/Carrot Washer Machine
These washer suit all vegetable and fruit ,the capacity depend on the customer's request, make of SUS 304, nice price and good service.
No, |
Item |
Exterior size L×W×Hmm |
powerkw |
Remark |
1 |
Winnowing |
Remove the hair and dust of the vegetable |
|
|
2 |
Spinage Cleanout machine |
4200×1250×1150 applicable to the un-easy cleaned leafy vegetable |
1.85kw |
|
3 |
Carrot cleanout machine |
applicable to the rootstock vegetable |
|
|
4 |
Blancher |
4400×1170×1150 |
1.1kw |
|
|
boilor |
provide steam for the blancher |
|
|
5 |
Room temperature/Ice water cooling machine |
7500×1310×1500 Clean and cool the boiled vegetable |
3.0kw |
|
6 |
Vibration water dropping |
1800×850×1100 Remove the water |
0.74kw |
|
7 |
Hoist |
2500×780×1850 Carry the vegetable into the IQF freezer |
0.75kw |
|
8 |
Vibration spreader |
1800×850×1520 Prevent the vegetable from gathering when they are being moved into the IQF freezer |
0.74kw |
|
9 |
Fluidized freezer |
8300×4000×3000 |
40kw |
|
|
Refrigeration systemcontains the IQF Freezer part and ice water cooling part |
|
||
The parameter is base on the capacity of 1000kg/h.we could macke the whole line according to your requirement.
