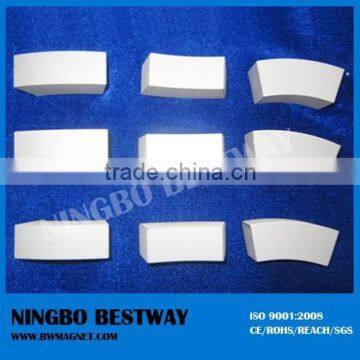

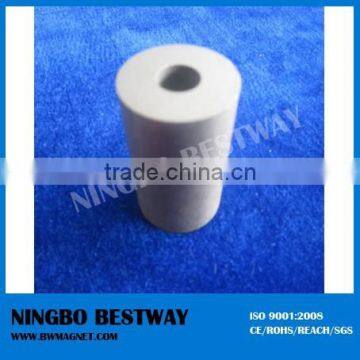

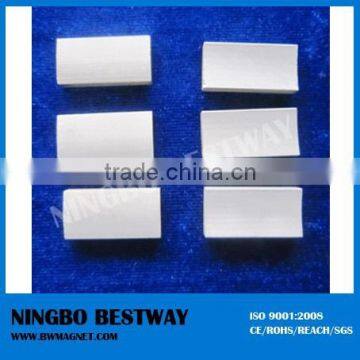

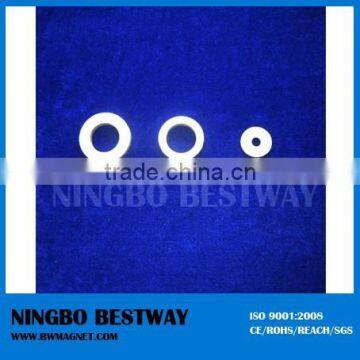

Sinered samarium smco26 cobalt
Specifications
SmCo Magnet:
1) Size: customized
2) Strong magnetic power
3) High working temperature
Sintered SmCo magnet is one of the two types of rare earth magnet, which is made of an alloy of samarium and cobalt. It is the second strongest powerful of magnet, but has better temperature stability (maximum working temperature is between 250 and 350 °C and the curie temperatures is from 700 to 800 °C).
The flux density of sintered SmCo magnets will vary under 5% per 100°C change in temperature (in the range of 25–250°C). They are mainly used in the high-end applications which require operating at cryogenic or high temperatures (over 180°C), such as electric motors, turbo-machinery and traveling-wave tube.
1. Applications: Motors, Generators, Sensors, Speakers, Earphones and other musical instruments, Magnetic bearings and couplings, pumps and other magnetic applications.

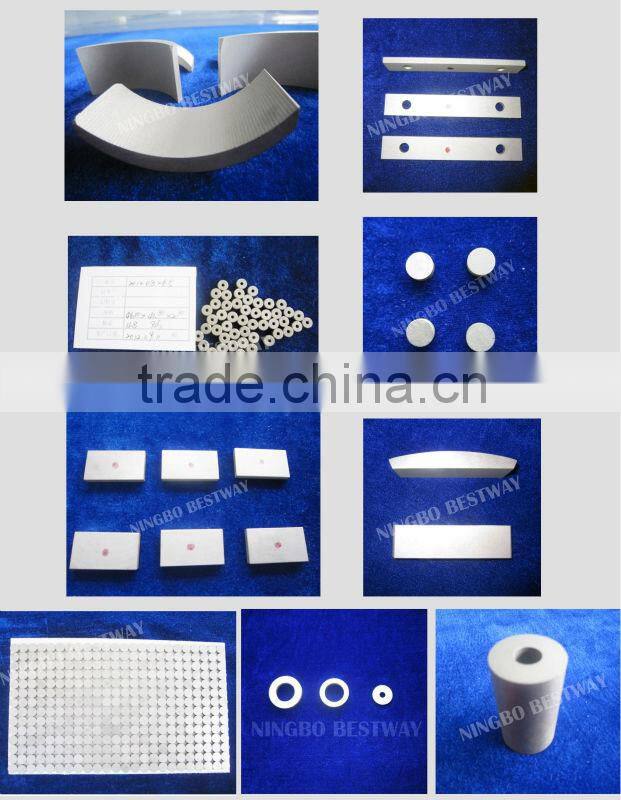

2. Shape: Disc, Ring, Block, Segment, Cylinder, Customized Design.
3. Coating: Some applications require coating such as Ni-Cu-Ni and Zn(Cr3+).
4. Size: Customized size per your requirements.
5. Certification:ISO9001:2008, ISO/TS16949:2009 and RoHS.
Specifications
Block SmCo Magnet:
1) Size: customized
2) Strong magnetic power
3) High working temperature
Sintered SmCo magnet is one of the two types of rare earth magnet, which is made of an alloy of samarium and cobalt. It is the second strongest powerful of magnet, but has better temperature stability (maximum working temperature is between 250 and 350 °C and the curie temperatures is from 700 to 800 °C).
The flux density of sintered SmCo magnets will vary under 5% per 100°C change in temperature (in the range of 25–250°C). They are mainly used in the high-end applications which require operating at cryogenic or high temperatures (over 180°C), such as electric motors, turbo-machinery and traveling-wave tube.
1. Applications: Motors, Generators, Sensors, Speakers, Earphones and other musical instruments, Magnetic bearings and couplings, pumps and other magnetic applications.
2. Shape: Disc, Ring, Block, Segment, Cylinder, Customized Design.
3. Coating: Some applications require coating such as Ni-Cu-Ni and Zn(Cr3+).
4. Size: Customized size per your requirements.
