Help CenterAluminium Forming Machine, DPB-140E Model
Related Products

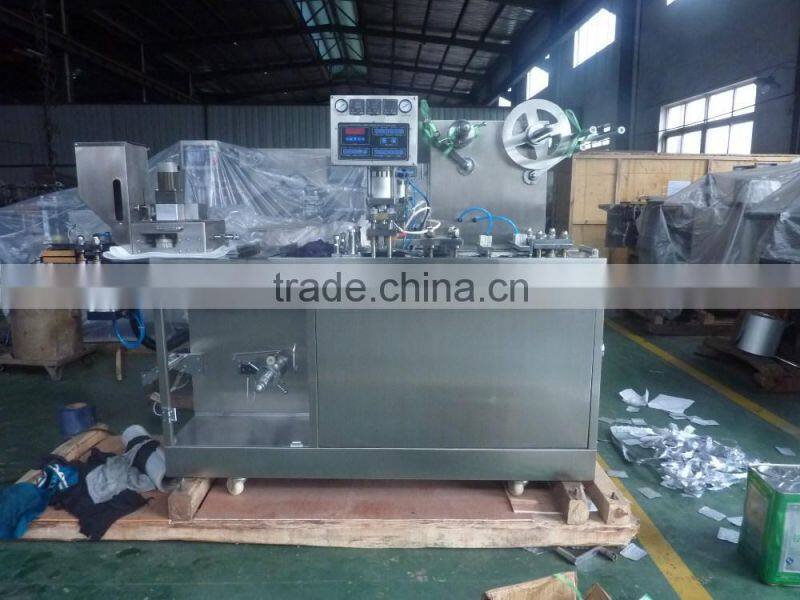

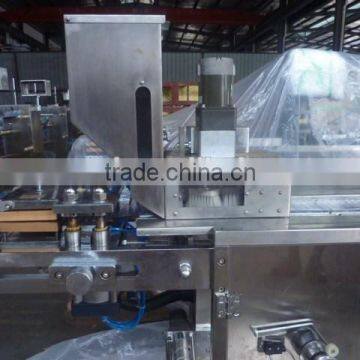

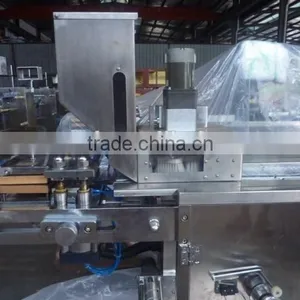

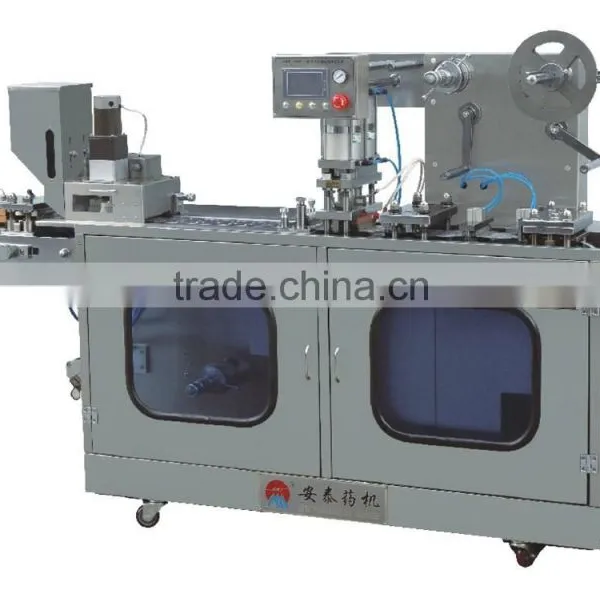

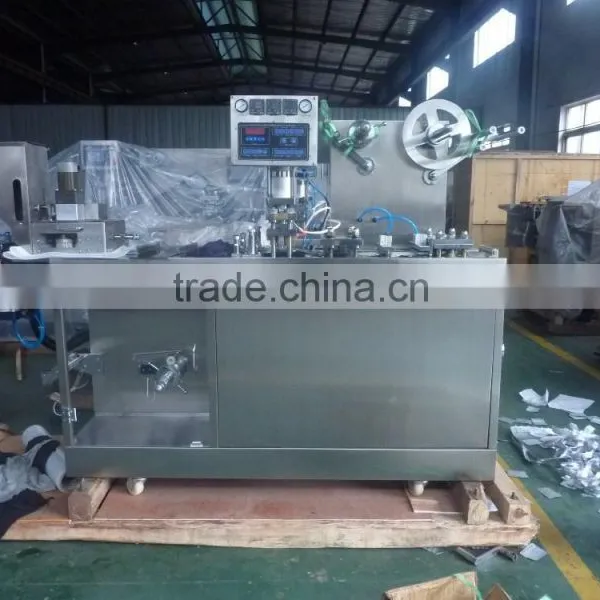

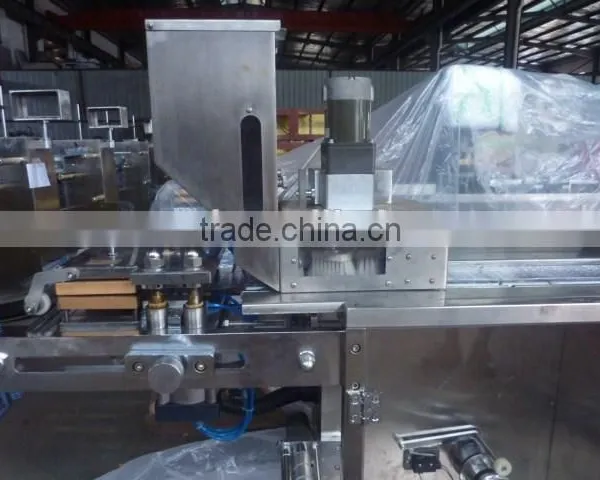

Aluminium Forming Machine

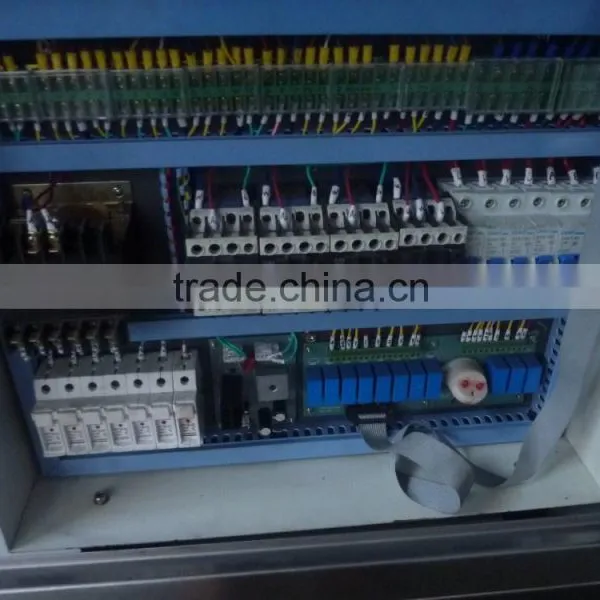

It is the latest product designed specially for middle and small sized pharmacy factory, preparation room of hospital, health care factory. It is adopted with micro-computer PLC, touch panel operation, frequency speed regulation, adjustable stroke, convenience of operation, firm structure, well function; it is the ideal packaging equipment. It has passed Province technology production authentication.
Aluminium Forming Machine FEATURES:
1. The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running.
2. Adjustable stroke can be suitable for various packaging, especially for the production requirements of small batch and various kinds of products.

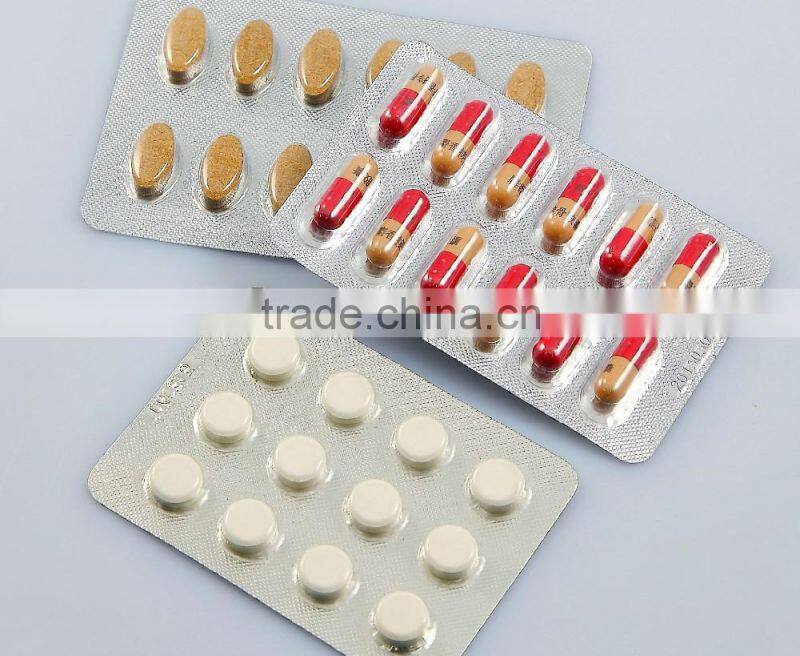

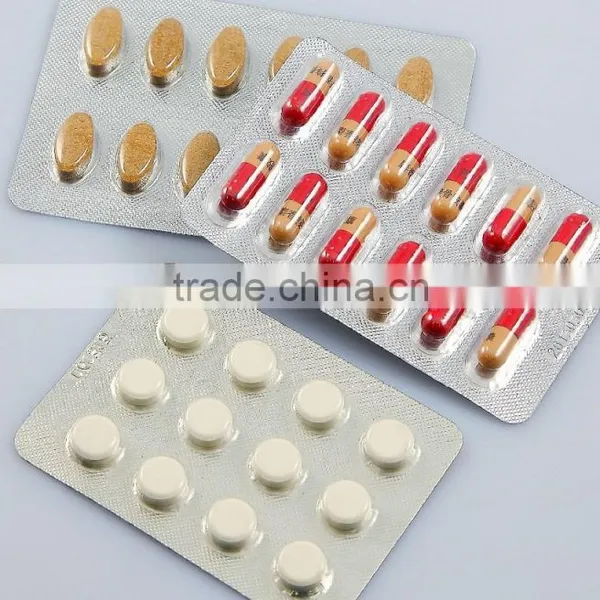

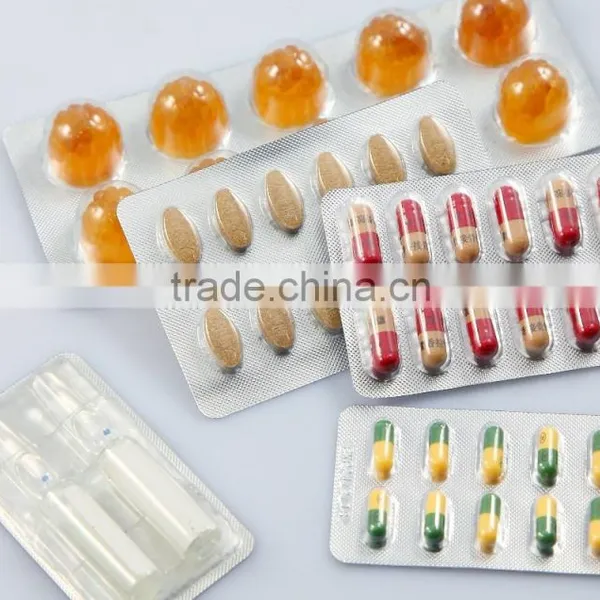

3. Flat plate structure, can pack some special shaped products, such as elliptic shape, square shape, triangle shape etc.
Notes:
1. It can be equipped color-code register sealing device.
Aluminium Forming Machine Main Technical Parameters
| Cutting Frequency (Times/min) | 6-35 |
| Capacity (10 thousand pcs/h) | 2-11 |
| Max. Forming area and depth (mm) | 140*110*14 |
| Stroke (mm) | 40-120 (can be designed as customers requirements) |
| Standard Plate(mm) | 80*57 (can be designed as customers requirements) |
| Air Pressure(Mpa) | 0.4-0.6 |
| Air supply | ≥0.2 m³/min |
| Total Power | 380V/220V 50Hz 3.6kw |
| Main Motor Power (kw) | 1.1 |
| PVC Hard Pieces(mm) | 0.150.5*140 |
| PTP Aluminum Foil(mm) | 0.02-0.035*140 |
| Dialysis Paper(mm) | 50-100g*140 |
| Mould Cooling | tap water or recycling water |
| Overall Dimensions(mm) | 2300*560*1410(L*W*H) |
| Weight (kg) | 600 |
