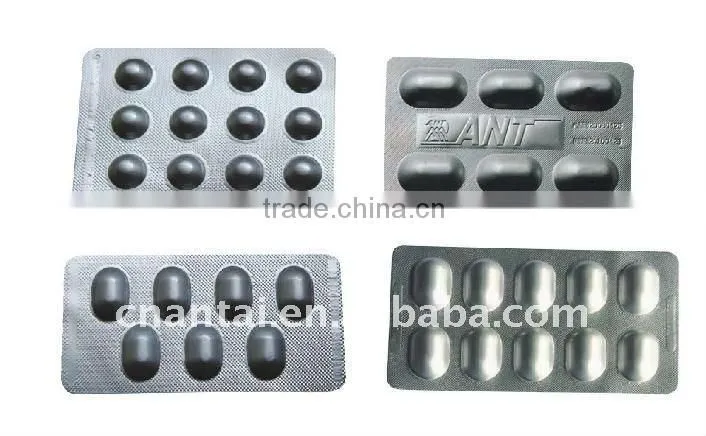

Aluminum Packing Machinery1. AL/AL and AL/PVC package
2. Human Interface, PLC Control, more intelligent
3. Servo motor drag,
Aluminum Packing Machinery
Summarize And Features:
This high dispose Alu-alu, Alu/PVC Blister Packing Machine innovated on the basis of Model Alu/alu Packaging Machine. High dispose, advanced steady, easy operation, is current leading model in Alu/alu Blister Packing Machine in China.
1. Human Interface, PLC Control, More intelligence.
2. Main drive part adopts Germany Technology, servo motor drag, running steady and accurately, with lower noise.
3.Cursor tracking register function, sealing with tidiness and good-looking appearance.
4. Double layer working table, multi-alarm protection function, more humanization.
5. On-line photography detection, powerful function, can automatic checking lack of product (bad tablet, empty capsule, half capsule), reject full sheet, the qualified rate can reach 100%.
Main Technical Parameters
Cutting Frequency (Times/min) |
AL/AL 6-36, Al/plastic paper/plastic 6-45 |
Capacity (10 thousand pcs/h) |
Al-Al≤11 Al-plastic≤23 |
Max. Forming area and depth (mm) |
AL/AL:240×150×9 AL/PL: 240×150×26 |
Stroke (mm) |
40-160 can be manufactured as user's requirements |
Standard Plate(mm) |
80×57 can be manufactured as user's requirements |
Air Pressure(Mpa) |
0.4-0.6 |
Air supply |
≥0.3 m³/min |
Total Power |
380V/220V 50Hz 6.2kw |
Main Motor Power (kw) |
1.5 |
Forming Aluminum(mm) |
0.085-0.1×250 |
PVC Hard Pieces(mm) |
0.15-0.5×250 |
PTP Aluminum Foil(mm) |
0.02-0.035×250 |
Dialysis Paper(mm) |
50-100g×250 |
Mould Cooling |
tap water or recycling water |
Overall Dimensions(mm) |
3210×720×1600(L×W×H) |
Weight (kg) |
1800 |
