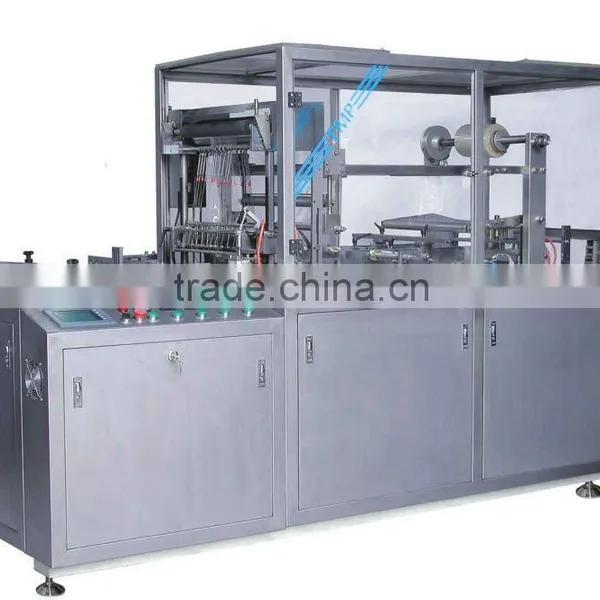

Help CenterTMP 300D Cellophane Overwrapping Machine
Related Products
-
TMP-130A/B Automatic Transparent Film Packaging MachineNegotiableMOQ: 1 Set -
BS-1000B Automatic Thermal Contraction Package MachineNegotiableMOQ: 1 Set
-
BS-1000B Automatic Thermal Contraction Package Machine (Shrikage Packing Machine)NegotiableMOQ: 1 Set
-
TMP-130B Automatic Tridimensional Cellophane Packaging MachineNegotiableMOQ: 1 Set
-
GBZ-300B Automatic Cellophane Over-wrapping MachineNegotiableMOQ: 1 Unit
Specifications
It can used to pack the material, such as Medical box, Gum, Health products, Tea-leaf, Cubic-sugar, Disk, condom, Cigarette etcCellophane over Wrapping Machine is specially R&D to outside decoration packaging of square-shaped and box. The packing machine is widely applied in many industries, such as Pharmaceutical, Food, Daily chemistry, Cosmetics, Publishing industry, IT etc. The products are packed by Antai, the outside package will provide perfect protect to products, such as moisture-proof, dustproof. Coin-freed device will combined with the package, can provide brand protect to your company. It can used to pack the material, such as Medical box, Gum, Health products, Tea-leaf, Cubic-sugar, Disk, condom, Cigarette, tape, Poker, Soap, Square-shape battery, and etc.
The Film Packing Machine can be installed with other machine and equipment to product line.
machine main specification and technical parameters
Compact structure, stable performance, easy to operation and maintenance.
PLC control, easy to operate
All the machine use the gas driving, easy to maintain
Touch screen and friendly interface.
The data are showed on touch screen.
Auto feeding device and Auto counter.
Auto feeding the film use the servo motor. Control the film exactly.
Multifunction diagnose software, provide friendly and powerful help.
High grade security protect device, protect the safety of machine and operator.
Special design, save cost.
High precision transducer, stepless variable speed.
Model |
TMP-300D |
Packaging material |
BOPP film, PVC film |
Production capacity |
5-30 packs/min. |
Bag size |
L(50-300)*W(40-220)*H(10-90)mm |
Power supply |
AC380V 50Hz, 6.5Kw |
Working pressure |
0.6 Mpa |
Air consumption |
400L/min. |
Weight |
750kg |
Overall dimension (L*W*H, mm) |
2300x910x1850 |
Input table dimension (L*W*H,mm) |
1650x320x930 |
