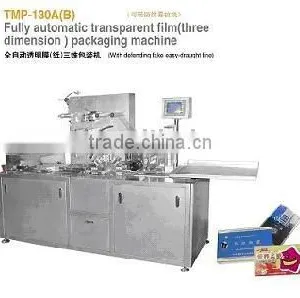

Help CenterTMP-130B Automatic Tridimensional Cellophane Packaging Machine
Related Products
-
GBZ-300B Automatic Cellophane Over-wrapping MachineNegotiableMOQ: 1 Unit -
BS-1000B Automatic Sleeve Type Shrink Packaging MachineNegotiableMOQ: 1 Unit
-
DPB-140B Auto Electronic Tablet And Capsule Counting Packing MachineNegotiableMOQ: 1 Unit
-
SJIII-K Series Automatic Granule Packing MachineNegotiableMOQ: 1 Set
-
SJIII-F Series Automatic Powder Packing MachineNegotiableMOQ: 1 Set
Specifications
TMP Model Cellophane Overwrapping Machine is suitable for outside decoration packaging of square-shaped box-packaged things.Instruction:
TMP Series of Automatic Tridimensional Cellophane Packaging Machine, which is mainly applied to the outside decoration packaging of square-shaped box-packaged things of such industries as medicine, food, daily chemistry, cosmetics, video products rubbers, IT etc. For example, the medical box, chewing gum, healthy products, tea-leaf, cubic sugar, condom, eraser, mosquito-repellent incense, cigarette, tape, VCD (CD)disk, poker, soap, square-shaped battery and floppy disk etc. It has the function of anti-moisture and anti-falsification, and also enhances the product level and additional value. It can combine the box-packaged machine and code-spraying machine to manufacture.
Main Features:
1. Compact and reasonable structure, stable and advanced performance, simple and convenient operation and maintenance.
2. Adopt multi-function digital-indication frequency converter, and stepless variable speed.
3. The digital indication of thermal seal temperature is clear.
4. Have the function of automatic feeding and automatic feeding and automatic counting etc.
5. In the transmission part, there are all varieties of protection mechanism and indication of malfunction.
6. Film-feeding clutch for trial operation is set without the wasting of packing material.
Main technical parameters:
Package material |
BOPP film, PVC film, etc |
Production capacity |
30-100 packs/min. |
Packaging size |
L60-130xW40-100xH10-40mm |
Power of supply |
AC220V 50Hz, 6.5Kw (single phase) |
Weight |
750kg |
Outline dimensions (LxWxH) |
2500x700x1500mm |
