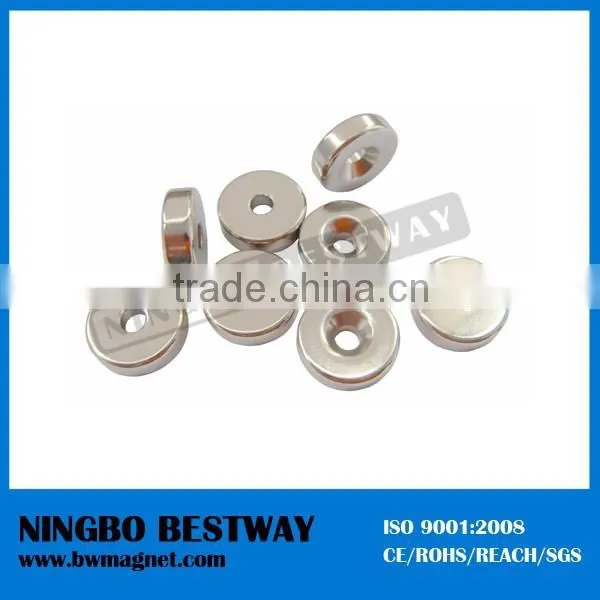

Rare Earth Neodymium Countersunk Magnet

Rare Earth Neodymium Countersunk Magnet thumbnail-1
Rare Earth Neodymium Countersunk Magnet thumbnail-2
Rare Earth Neodymium Countersunk Magnet photo-1
Rare Earth Neodymium Countersunk Magnet photo-2
US$ 0.01 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NINGBO BESTWAY
Model Number:
BWND
Contact Supplier Request Quote Chat Now
Ningbo Bestway Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name NINGBO BESTWAY
Model Number BWND
Type Permanent
Composite Neodymium Magnet
Shape Other, Block or Disc with Countersunk Hole
Application Industrial Magnet

Specifications

Neodymium Countersunk Magnet
1) High quality consistency
2) SST: 48/72 hours
3) Low weight loss

Product Name: Rare earth Neodymium Countersunk Magnet/NdFeB Countersink Magnets



Applications: Neodymium Countersunk Magnet/NdFeB Countersink Magnets are Widely used in different applications, such as sensors, motors, rotors, wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on.



Material: NdFeB (Neodymium Iron Boron)



Shape: Block/Disc Countersunk (Customized shapes for Sintered NdFeB  Magnet are available.)



Tolerance in size: +/-0.05mm or +/-0.1mm



Type of coating:  Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.



Grade:  N35-N52; N33M-N50M; N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH.





Working Temperature

Grade

Max. Operating Temperature

N35-N52

80°C (176°F)

33M- 48M

100°C (212°F)

33H-48H

120°C (248°F)

30SH-45SH

150°C (302°F)

30UH-40UH

180°C (356°F)

28EH-38EH

200°C (392°F)

28AH-35AH

220°C (428°F)



Technology Advantage

Depending on advanced R&D center, Quality control team and professional machining technicians, we can surpass our competitors in the stability of quality and superiority of property.

Delivery Advantage



The lead time must be 2-4 days quicker than industry average because of more flexible machine process control.



Price Advantage



The price is 3-10% cheaper than industry average because of an excellent and efficient management system.





Direction  of magnetization: Through the diameter and through the thickness



Rare earth Neodymium Countersunk Magnet

Free of harmful substances according to ROHS Directive 2002/95/EC



Exempt from registration according to REACH.





Package size: L36mm x W26mm x H16mm



In order to quote you the best price timely, please kindly provie the followsing information in your inquiry:





1) Product details: Shape&dimensions, grade, tolerances, coating, magnetization direction



2) Order quantity



3) Attached drawings if customized



4) Any special packing, delivring or oter requirements



Rare earth Neodymium Countersunk Magnet





If you are not sure about any specifics of the product you need, please feel free to contact with us and we are more than happy to help.





Magnetic Properties of NdFeB Magnets:

Rare earth Neodymium Countersunk MagnetRare earth Neodymium Countersunk Magnet
