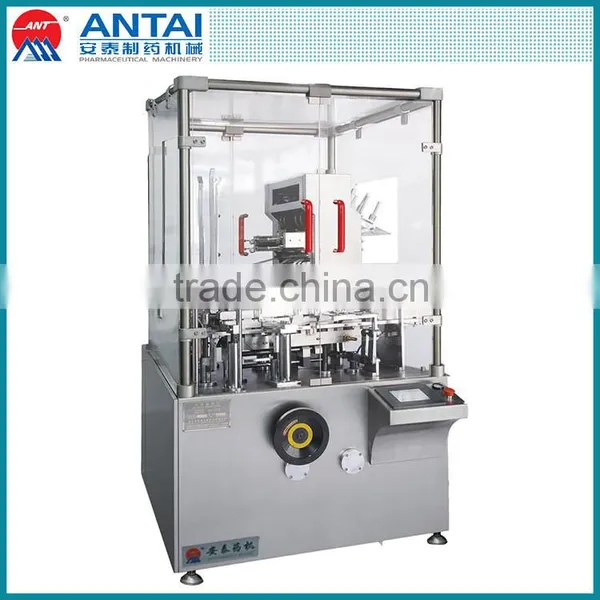

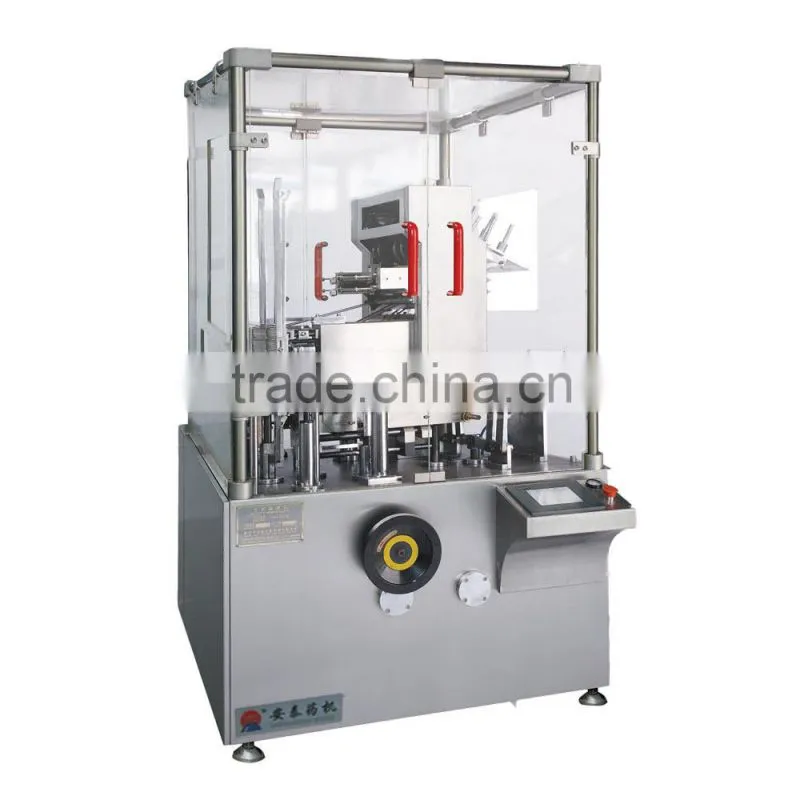

ANTZ-120 Automatic Vertical Cartoning machine (Cartoner Machine)

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 11 Unit / Units per Month
Port Shanghai or Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Medical
Packaging Type	Other, blister	Packaging Material	Paper
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220v 50hz	Power	0.75kw
Place of Origin	Zhejiang, China	Brand Name	ANTAI
Model Number	ANTZ-120	Dimension(LWH)	1140 x 1160 x 1800(mm)
Weight	1000KG	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

This machine is suitable for cardboard case packaging of blister package for blister package and similar package. It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.

1. International famous brand of electric components such for PLC touch screen, frequency inverters etc.

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Automatic detection and rejection device for lacking of blisters/goods or leaflets.

5. Stability performance with lubricate setting and controlling.

Product Description

Item		Parameters
Encasing speed		60-120box/min
box	Quality requirement	250-350g/m²
box	Dimension range (L x W x H)	(65-125)mm x (35-90)mm x (12-60)mm
Leaflet	Quality requirement	50-65g/m²
	Unfolded leaflet specification	(80-300)mm x ( 70-210)mm
	Folded leaflet specification(1-4)	(70-210)mm x (20-40)mm
Compressed air	Working pressure	0.5-0.7mpa
Compressed air	Air consumption	120-160L/min
Power supply	220v 50hz
motor power	0.75kw
Machine dimension	1140 x 1160 x 1800(mm)
Machine weight	1000kg
