Various Size of High Quality Zinc Cut Wire Shot for Shot Blasting Machine Steel Shot

Specifications

1,no dust and long durability
2,Bright appearance
3,long time usage

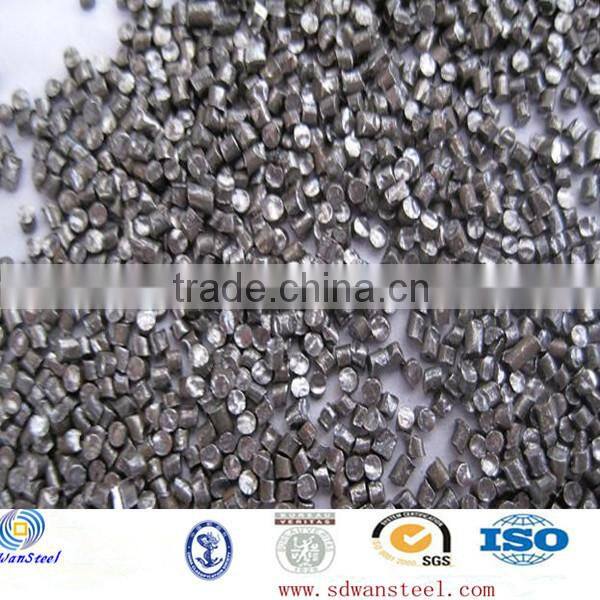

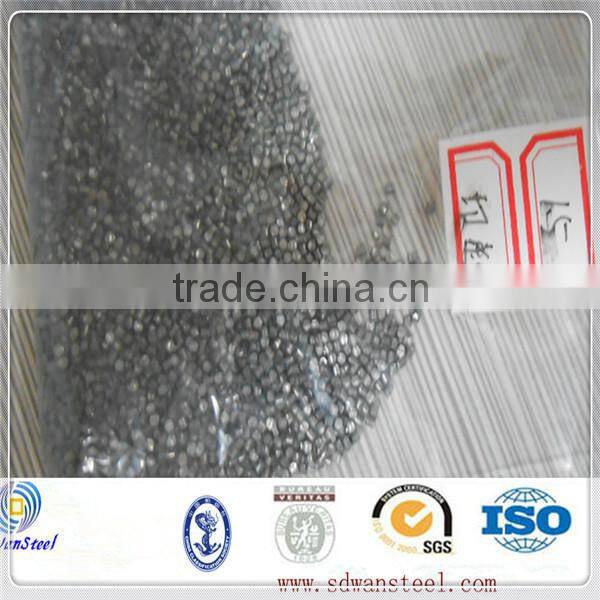

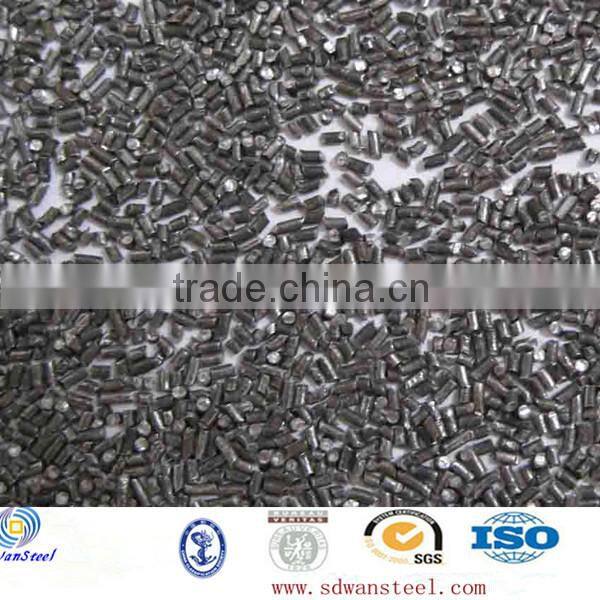

Casrbon steel cut wire shot is produced by cutting wire into lengths equal to the wire diameter (we call them pellets). Quality is assured by control of the chemical and physical properties inherent in the wire and accurate sizing to length. Every piece is 100% solid. Cut-wire is available in an “as-cut” (cylindrical) form as well as in a conditioned (spherical) shape in a number of sizes from .012 (.30 mm) to .125 (3.17 mm). Cut-wire shot applications include: blasting, cleaning, tumbling and vibratory finishing.

Carbon steel cut wire shot is available in regular spring wire grades which yield a hardness of 45 to 55HRC and in special high carbon grades 55 to 60 HRC.

Cut-wire shot is a natural for shot blasting because the blasting process requires a round, whole bodied shot that resists rapid change in size and weight so it delivers constant intensity. This quality is assured in cut-wire shot because the wire from which it has been produced is heat treated and cold drawn to achieve hardness and homogeneity. This, together with the balanced chemical properties and complete solidity of every piece, insure that cut-wire shot will not fracture in use. It wears down gradually and lives for many cycles in a blasting operation. Cut-wire shot maintains its blasting intensity longer than other types of shot and thus reduces cost. Tests have shown cut-wire-blasted parts have a greater fatigue life than the same part blasted with cast shot. This demonstrates that media uniformity is extremely critical for blasting.





Cut-wire Size (Inches)	Cut-wire Shot Size (mm)	Equivalent Cast Shot Size
.035 / .041	0.90 / 1.00	S-330
.041 / .047	1.00 / 1.20	S-390
.054	1.40	S-460
.062	1.60	S-550



Material	SIZES	WIRE	ROCKWELL HARDNESS RANGE	VICKERS HARDNESS RANGE
Steel	.012 inch - .062 inch (0.30mm - 1.60mm)	Carbon Spring Wire 1070 Class I High carbon 1070 Class II	45 - 55 C 55 - 60 C	446 - 595 595 - 697
Stainless Steel	.014 inch - .125 inch (0.35mm - 3.2 mm)	Type 302/304 Spring Wire Class I 316 & 430	45- 58 C 30 - 35 C	446 - 653 302 - 345
Aluminum	.020 inch - .125 inch (0.50mm - 3.2 mm)	Types 5053 - Full Hard Types 1100-1345 - Full Hard	50-70 B 30-40 B	N/A
Zinc	.024 inch - .125 inch (.61 mm - 3.2 mm)	Commercial Quality Pure Zinc	20 - 30 B	N/A
