Applications of the Metal Baler
Y81 series of hydraulic metal baler are applicable in steel plants, recycling companies, ferrous& non-ferrous
smelting industry to press metal scraps (steel ,copper , aluminum ,stainless steel ,discarded automobiles) into
acceptable furnace charges ( shapes: cuboid , cylinder or octagon ) , so as to reduce cost of transportation,
to increase speed of furnace charging.
Features of the Metal Baler
*Hydraulic drive for all machine types, manual valve control or PLC control.
*Baler-discharging :"turn-out", "push-out","forward-out" or manual discharging.
*No footing bolts needed in installation ; diesel engine can be equipped for power.
*Baling force from 630 to 6000 KN; productivity from 4 to 40 ton per shift (8 hours)
*Press box size , baler size & baler shape can be customized.
| Model | Nominal Force (KN) | Press Box Size (mm) | Baler Size (mm) | Baler Weight (kg) |
Power (kw) |
Baler Discharging / Operation |
| Y81F-630 | 630 | 1000*600*500 | 190*190 | 15-30 | 7.5 | Turn-out, manual valve control |
| Y81F-1250A | 1250 | 1100*700*500 | 200*200/octagon | 15-35 | 15 | |
| Y81F-1250B | 1250 | 1200*700*600 | 300*300 | 50-70 | 15 | |
| Y81Q-1350 | 1350 | 1300*600*800 | 600*240 | 50-75 | 22 | Forward-out , manual valve control |
| Y81F-1600A | 1600 | 1400*900*700 | 320*320 | 80-130 | 2*15 |
Turn/ Push -out, manual valve control |
| Y81F-1600B | 1600 | 1600*1200*800 | 400*400 | 100-200 | 2*18.5 | |
| Y81F-2000A | 2000 | 1600*1000*800 | 400*400 | 120-200 | 37 | |
| Y81F-2000B | 2000 | 1800*1400*900 | 500*500 | 180-350 | 2*22 | |
| Y81F-2500A | 2500 | 2000*1400*800 | 450*450 | 180-350 | 2*22 | |
| Y81F-2500B | 2500 | 2000*1750*1000 | 500*500 | 250-450 | 2*30 | |
| Y81F-3150A | 3150 | 2000*1750*1200 | 600*600 | 300-500 | 2*45 | Turn/ Push -out, manual/semi-auto control |
| Y81F-3150B | 3150 | 2500*2000*1200 | 600*600 | 400-700 | 2*45 | |
| Y81F-4000A | 4000 | 3000*2000*1300 | 600*600 | 500-800 | 2*45 | |
| Y81F-4000B | 4000 | 5000*2000*1200 | 700*700 | 600-900 | 3*45 | Push-out, PLC control |
| Y81T-5000 | 5000 | 1600*1000*900 | 300*300 | 130-160 | 2*45 | |
| Y81T-6000 | 6000 | 2800*2000*1400 | 500*500 530*530 | 500-800 | 2*45 |

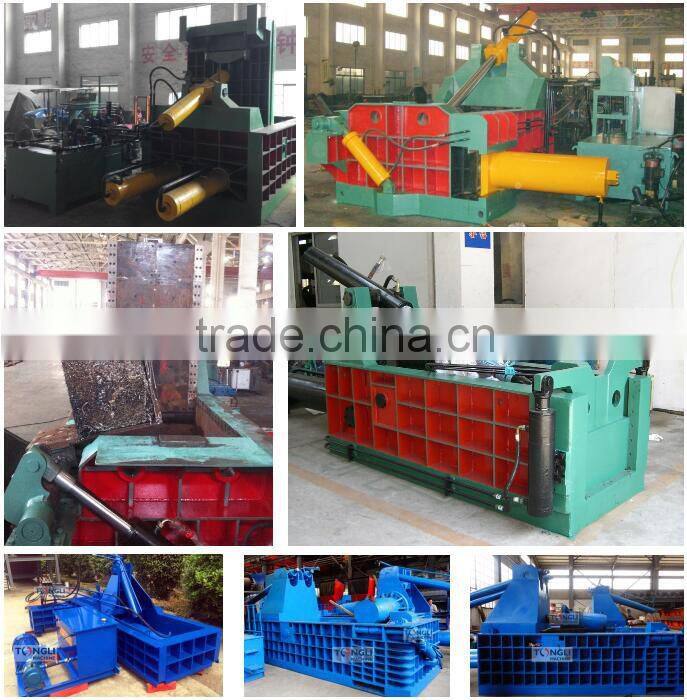

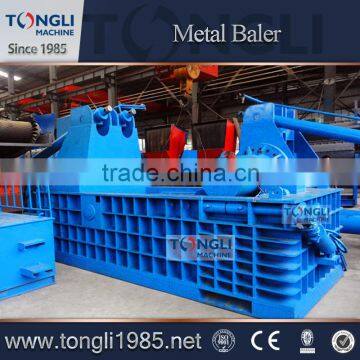

Metal Baler

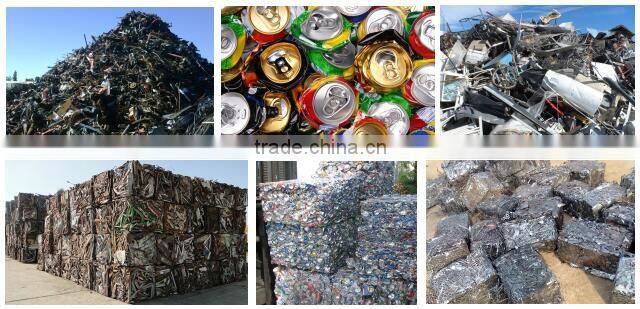

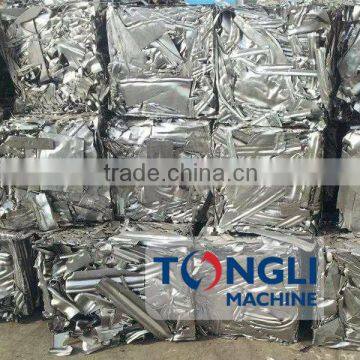

Final Product of the Metal Baler
Pre-sale support for the Metal Baler
TongLi Machinery consists of experienced specialists, we will offer a suitable solution according client’s
requirement in time.
After-sale service for the Metal Baler
TongLi’s skilled technicians are available to assist with onsite installation, commissioning & training on request.
This will enable customers to optimize the performance of their new plant. Customers will be briefed on all
aspects relating to operation and maintenance by a TongLi technician. Dimensional drawings together with
service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare
the site and allow them to commence production in a timely fashion.
TongLi holds a adequately inventory of spare parts and their efficient service personnel will ensure that any
required part will be dispatched without delay.
Regular return visit.
Technical support
TongLi provides enough hardware resource especially for large-scale production lines, clients can carry out
installation, commissioning and acceptance before delivery.
Q1: What is the Warranty for our machines?
A1:For all TongLi metal baler have 12 month warranty.
Q2:How can i trust the metal baler from TongLi?
A.We are a manufacturer, specialized in producing these machine since 1985.
B. TongLi is the CE,BV,ISO certificated company
C. Welcome visit our factory in the fixed time.
Q3: Where is TongLi located in china ?
A3:No.8 Wanshan Road,Xinyang Distric,Zhengzhou City, Henan Province, China. 450100
Q4: What machines TongLi main produce?
A4: We main produce scrap metal baler,scrap shredders,scrap metal crusher,brick making machine ,
terrazzo floor tile making machine , roof tile making machine.
Q5: How to choose the right scrap metal baler?
A5: When you plan to buy one TongLi brand metal baler,we suggest you consider 3 issues as below:
(1) What’s the material you want to treat?
(2) What is the capacity you want?
(3) What size of the final bale?
Q6:Can we get support if we have our own market position?
A6: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion
for you,to find the best solution for you.
