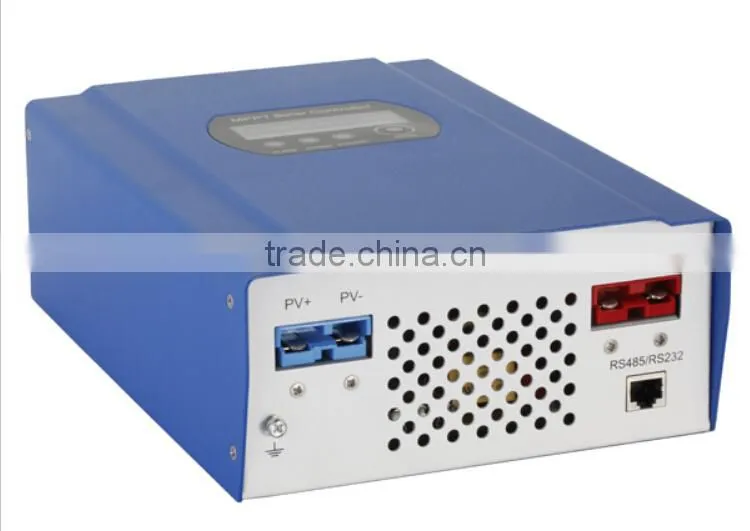

High quality solar charge controller 50a with oem service mppt 12v/24v
Features : mppt 12v/24v
1. MPPT charging mode, peak efficiency up to 99%, saving 30%~60% solar panel than traditional PWM controller.
2. DC12V/24V/48V battery system automatic recognition, users would like to use in different system conveniently.
3. DC12V/24V/48V system, maximum PV input voltage up to DC100V.
4. Charge type: three stages charge fast charge(MPPT), constant voltage,
floating charge, protected our battery, lead to a long use age.
5. Discharge type owns always on pattern and always off pattern, it also has PV voltage solar controlling switch pattern.
6. Clients can auto select any one in the 4 kinds of commonly used batteries, Sealed lead acid, vented, Gel, NiCd and custom other batteries.
7. Digital tube display controller battery voltage and charging current,upper computer display various parameters,
such as model, PV input voltage, battery types, battery voltage, charging current, charging power, working condition etc.
8. RS232 communication, and that providing communication protocol, it’s convenient for customer’s integration management.
9. This controller could be paralleled infinitely.
10. CE, RoHS Certifications approved; cooperating with clients through the other certifications.
11. 2 years warranty; 3~10 years extended technical service.

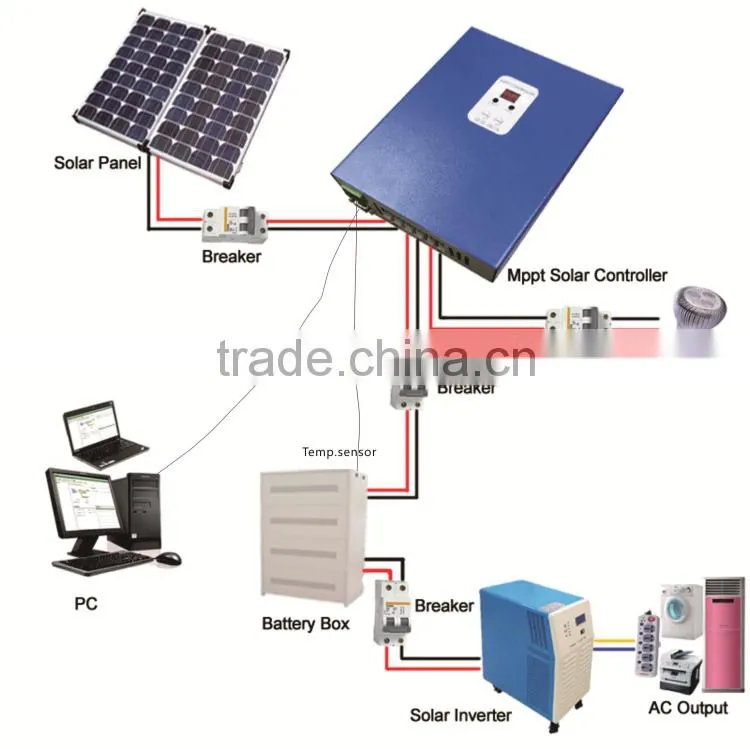

Working Connection : mppt 12v/24v
Suitable for different batteries : mppt 12v/24v
|
The charging voltage of battery type
| ||||||
|
Bulk Voltage |
Floating Voltage |
||||
12V |
24V |
48V |
12V |
24V |
48V |
|
|
14.2V |
28.6V |
57.2V |
13.2V |
26.4V |
52.80V |
|
14.2V |
28.6V |
57.2V |
13.4V |
26.8V |
53.60V |
|
14.2V |
28.6V |
57.2V |
13.7V |
27.40V |
54.80V |
|
14.2V |
28.6V |
57.2V |
14.0V |
28.0V |
56.0V |
Other |
user-defined(Set by the microcomputer software) |
|||||
In the case battery type is not set , use the default battery type (Gel gel battery). | ||||||

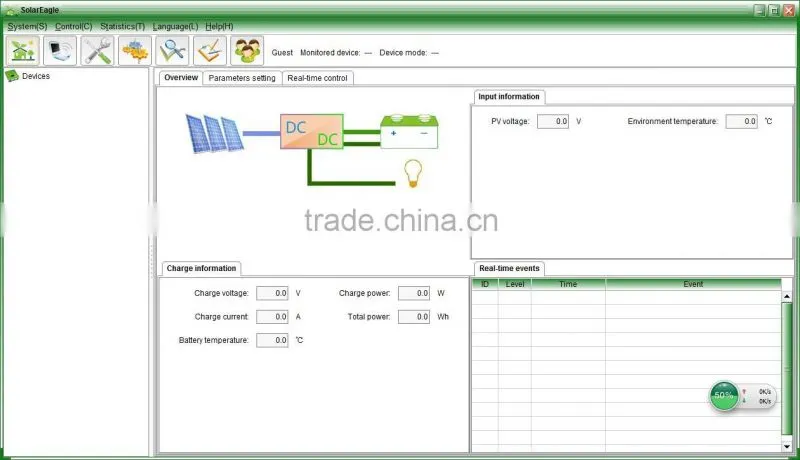

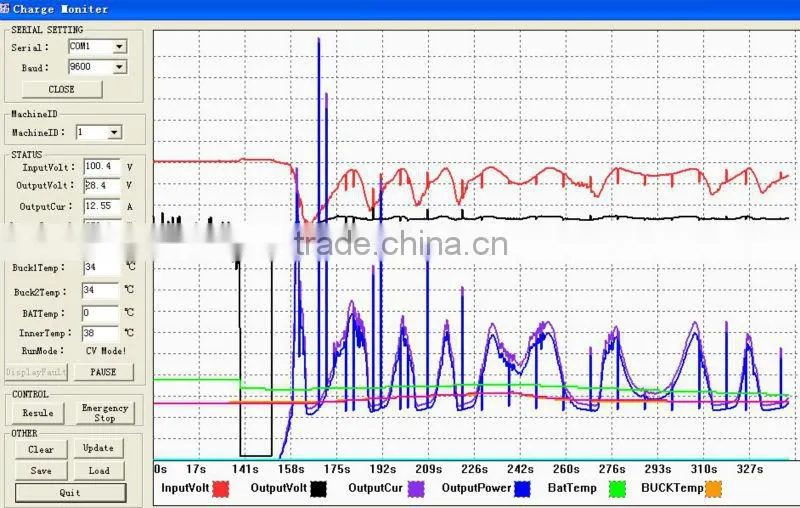

Software display , RS232 communication : mppt 12v/24v
1.1 show solar charge and discharge status, PV voltage, charge voltage, charge Current etc, and setting the type of the batteries, LOAD output control method.
1.2 Product standard upper software; testing software is not provided(Due to testing software need clients’ PC has software development platform,
if clients have the requests, please apply to our company for taking)
Remarks: the PC software is offered freely by our company.
Specification : mppt 12v/24v

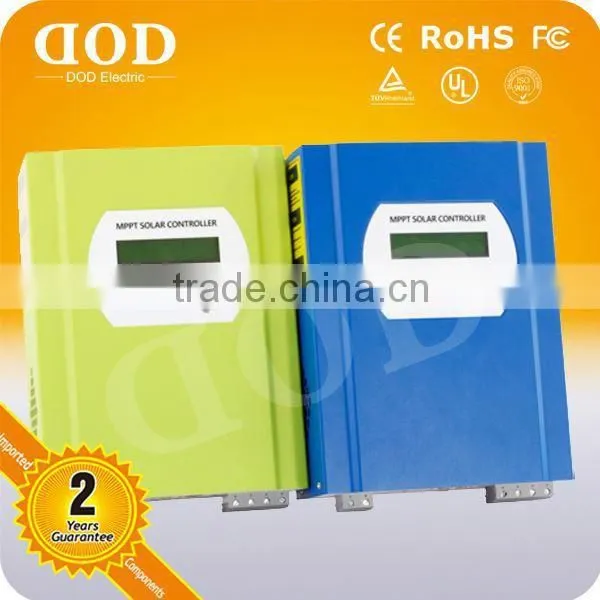

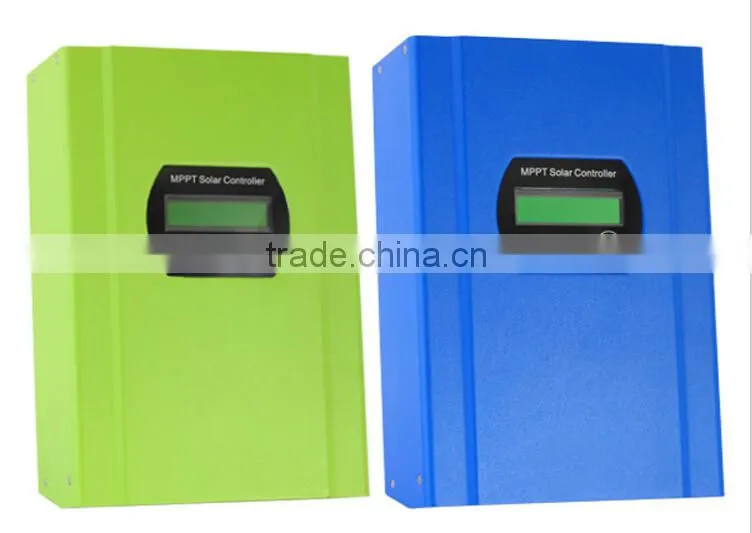

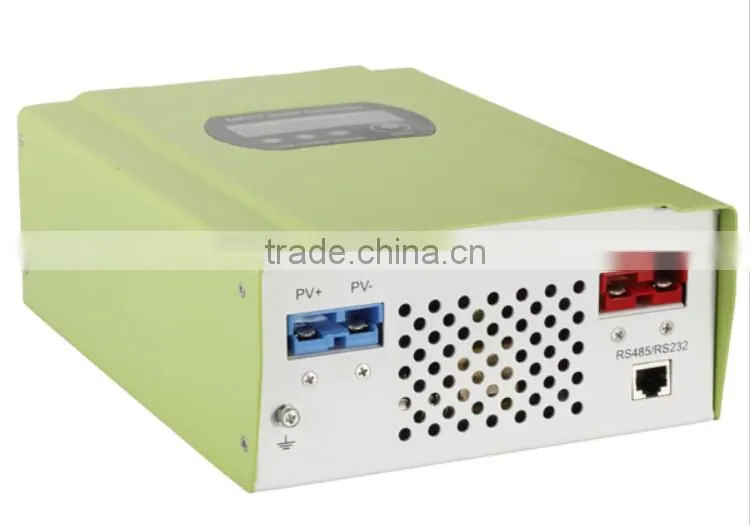

Product Display : mppt 12v/24v
Related Products : mppt 12v/24v

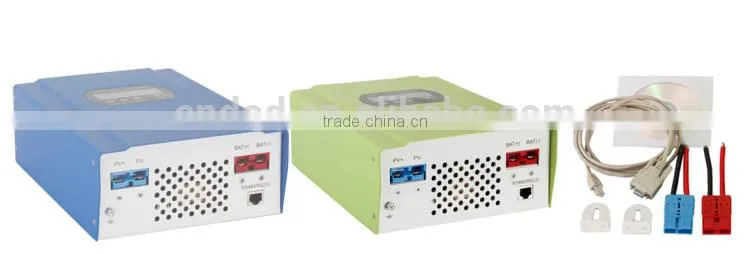

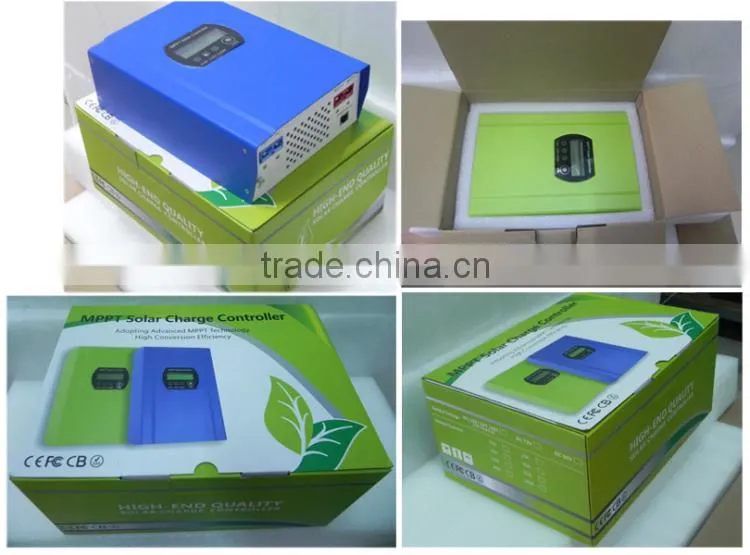

Product Packing and Shipping : mppt 12v/24v
Number |
quantity |
parets name |
1 |
1 pc |
Controller appearance(blue or green is optional,OEM is available also) |
2 |
2 pc |
hangers(Used in the controller hanging) |
3 |
4 set |
screw(Used for hanging ear lock in the controller) |
4 |
1 pc |
RS232 port |
5 |
1 pc |
Battery temperature sensing lines |
6 |
2 pc |
fuse(DC output) |
7 |
1 pc |
specification(manual) |
8 |
1 pc |
CD(Built-in upper software) |
Our Certificates : mppt 12v/24v
Our Factory : mppt 12v/24v
Our Tradeshow : mppt 12v/24v
