1.Company introduction:
(1). ISO9001:2008 standard and certificate
(2). Company established year: 1992
(3). Company location:Jiangyin city, 150km away from Shanghai
(4). FOB port: Shanghai
(5.) Business type: Manufacturer
2. Main technical parameter:
No. | Name | Unit | Data |
1 | Drawing type |
| LZ7/600 |
2 | Tuning type |
| Straight line tuning |
3 | Drawing passes |
| 7 |
4 | Block diameter | mm | Φ600 |
5 | Speed adjustable |
| AC freq. Con. Speed Adjustable |
6 | Motor power | KW | 7×22 |
7 | Inlet wire diameter | mm | MaxΦ6.5 |
8 | End product diameter | mm | Min Φ2.35 |
9 | Average compression | % | ≤23% |
10 | Drawing speed | m/s | 12-14m/s |
11 | Control mode |
| Fully digital |
12 | Logical control |
| PLC |
13 | Inlet Wire strength | MPa | ≤550 |
14 | Drawing material |
| welding wire (low carbon wire); |
15 | Drum cooling |
| Inside: "Narrow-Gap" water cooling, Outside: Forced Air Cooling. |
16 | Die box |
| Direct water cooling |
17 | Cooling water pressure |
| 0.2~0.3Mpa |
18 | Pneumatic system |
| Air pressure≥0.5Mpa |
19 | Stop time | S | Normal stop≤50s,EMG stop≤5s |

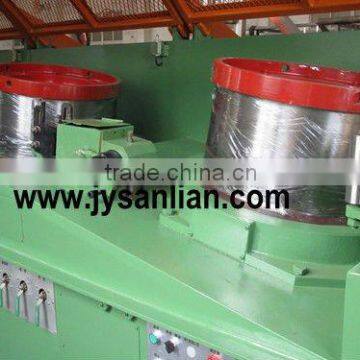

3. Pictures of wire drawing machine:
4.specification:
Drawing material: low carbon steel wire, CO2 gas shielded welding wire;
