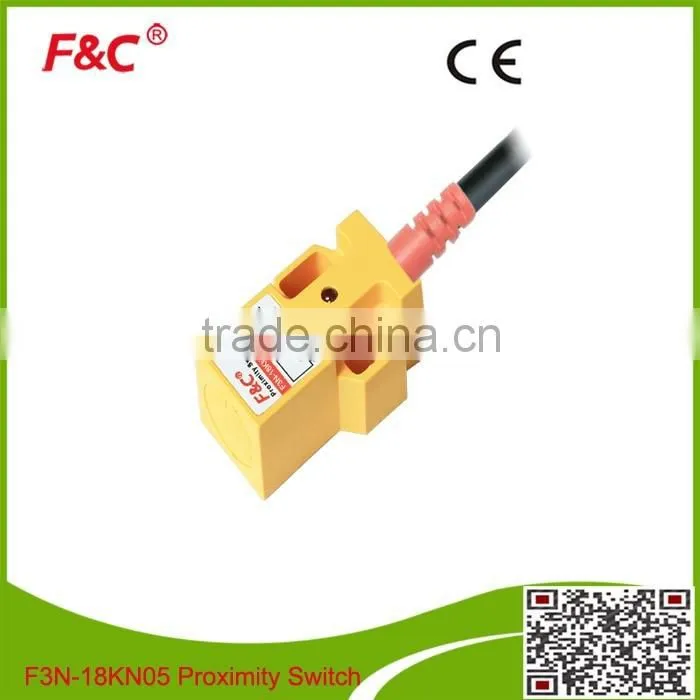

12V-24V Front Inductive proximity sensor switch
Feature
Stable performance, reverse polarity protection and short circuit protection
10-30VDC build-in amplifier, direct output
Clear LED indicator
200 mA triode output , high responsing speed can reach 0.1ms
5V proximity and different frequency proximity switch sensor can be customized
5mm,6mm,8mm and other special detection distance can be customized
Specification
| NPN NO Output | F3N-18KN05-N R2M | |
| Inductive Direction | Top Inductive Direction | |
| Detection Distance | 5mm | |
| Recommended Distance | 4.2mm | |
| Standard Detection Object | 15×15×1(iron) | |
| Response Frequency | 600HZ (Different Frequency can be customized) | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 10-30V DC | |
| Current Consumption | Less than 8mA (No Load) | |
| Load Current | 100mA Max@30V DC | |
| Leakage Current | 1.1mA (No Load) | |
| Residual Voltage | Less than 1.0V DC (No Load) | |
| Protection circuit | Reverse circuit protection short circuit protection | |
| Operating Temperature | -25~70℃ | |
| Protection Degree | IP67(can customize IP68) | |
| Material | ABS | |
| Wire Method | dia 4×2M/3 wires | |
Dimension Drawing
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Amplifier, Fiber optic sensor fiber optic Lens, Proximity Switch, Photoelectric switch,Label Sensor,
Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application. Our Target is “What you need can be found in F&C Sensing Technology”
I can be reached by Wechat:86-13809275350 and Skype:lynn_liu123.
