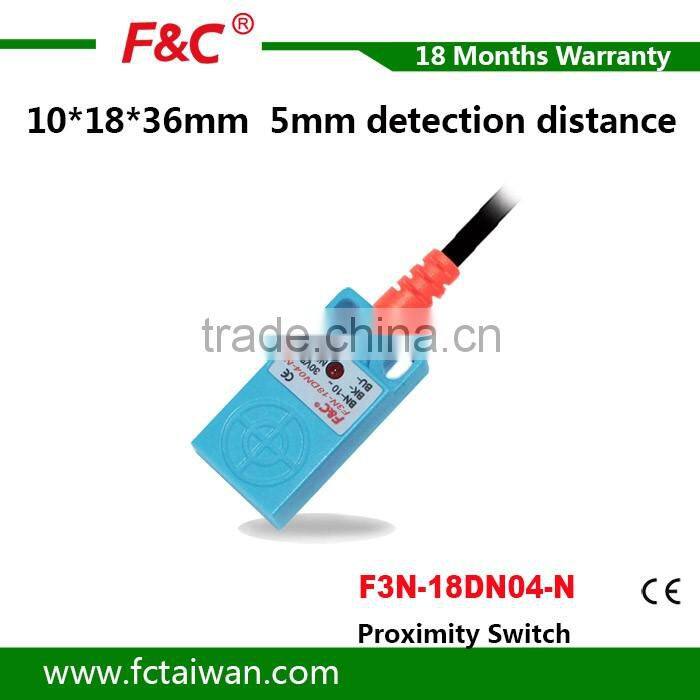

Feature for 10*18*36mm rectangular proximity sensors
1.Stable performance, reverse polarity protection and short circuit protection
2.10-30VDC build-in amplifier, direct output
3.Clear LED indicator
4.200 mA triode output , high responsing speed can reach 0.1ms
5.5V proximity and different frequency proximity switch sensor can be customized
6.5mm,6mm,8mm and other special detection distance can be customized
Specification for Inductive Proximity Sensor Switch
| Output Method | Top Induction | |
| NPN NO | F3N-18DN04-N R2M | |
| NPN NC | F3N-18DN04-N2 R2M | |
| PNP NO | F3N-18DN04-P R2M | |
| PNP NC | F3N-18DN04-P2 R2M | |
| Detection Distance | 4mm | |
| Standard Detection Object | 18×18×1(iron) | |
| Response Frequency | 600HZ (Different Frequency can be customized) | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 10-30V DC | |
| Current Consumption | Less than 8mA (No Load) | |
| Load Current | 100mA Max@30V DC | |
| Leakage Current | 1.1mA (No Load) | |
| Residual Voltage | Less than 1.0V DC (No Load) | |
| Protection circuit | Reverse circuit protection short circuit protection | |
| Operating Temperature | -25~70℃ | |
| Protection Degree | IP67 | |
| Material | ABS | |
| Wire Method | dia 4*2M/3 wires | |

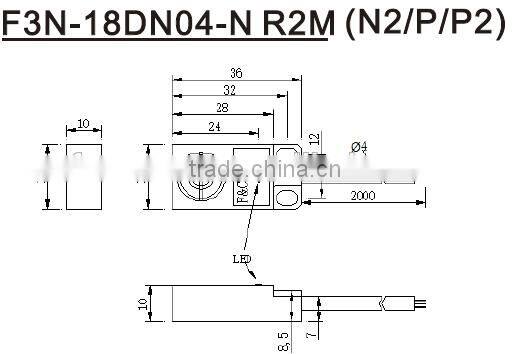

Dimension Drawing
