Help CenterF&C Finger Tip Size Front Inductive Proximity Sensor Switch(F3N-06DN01-NR2M)
Related Products
-
12 24VDC PNP NC Small Top Induction Position Sensor SwitchUS$ 6.39 - 10.55MOQ: 10 Pieces -
12V-24V Front Inductive Proximity Sensor SwitchUS$ 3.52 - 4.78MOQ: 10 Pieces
-
OEM 12V-24V PNP NC Rectangular Top Induction Position Sensor SwitchUS$ 6.39 - 10.55MOQ: 10 Pieces
-
High Repeatability 12V-24V Inductive Proximity Sensor Switch (FSNDM04-N) for High Speed RotatorUS$ 16.47 - 27.17MOQ: 1 Piece
-
15mm Detection Distance 10-30VDC Front Inductive NPN PNP Proximity Sensor SwitchUS$ 11.26 - 18.57MOQ: 1 Piece
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you.

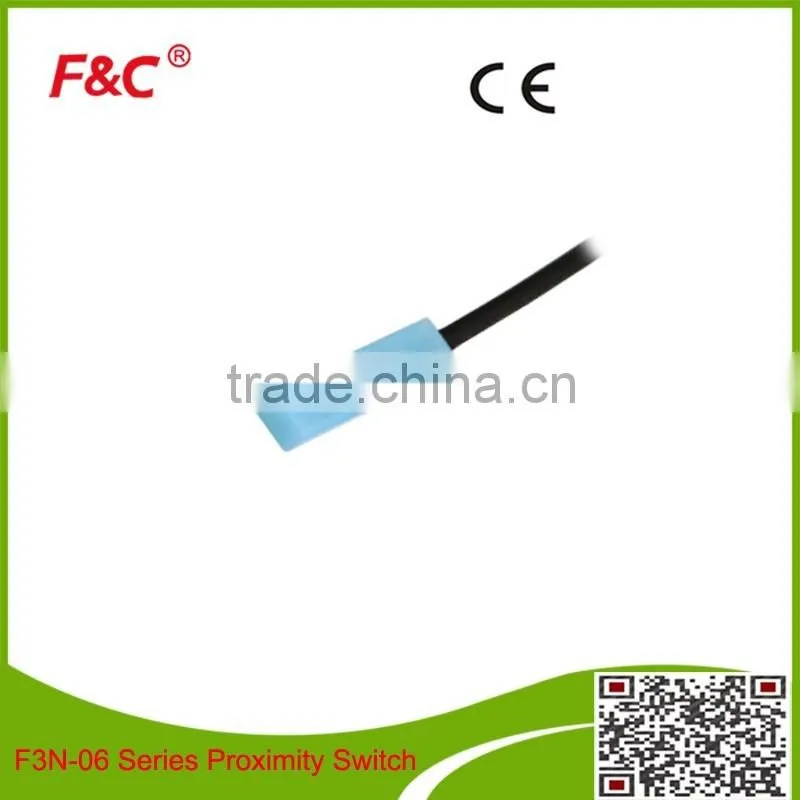

Product display for F&C Finger Tip Size Front Inductive Proximity Sensor Switch
Product specification for
| Output Method | Front Induction | Top Induction |
| NPN NO | F3N-06TN01-N R2M | F3N-06DN01-N R2M |
| NPN NC | F3N-06TN01-N2R2M | F3N-06DN01-N2R2M |
| PNP NO | F3N-06TN01-P R2M | F3N-06DN01-P R2M |
| PNP NC | F3N-06TN01-P2R2M | F3N-06DN01-P2R2M |
| Detection Distance | 1.5mm | |
| Recommended Distance | 1mm | |
| Standard Detection Object | 6×6×1(iron) | |
| Response Frequency | 600HZ (Different Frequency can be customized) | |
| Hysteresis | within 10% of sensing distance | |
| Operating Voltage | 10-30V DC | |
| Current Consumption | Less than 8mA (No Load) | |
| Load Current | 100mA Max@30V DC | |
| Leakage Current | 1.1mA (No Load) | |
| Residual Voltage | Less than 1.0V DC (No Load) | |
| Protection circuit | Reverse circuit protection short circuit protection | |
| Operating Temperature | -25~70℃ | |
| Protection Degree | IP67(can customize IP68) | |
| Material | ABS | |
| Wire Method | 1.dia 3×2M/3 wires | |
| 2wires and 150mm Lead line with M8 quick disconnecting can be customized | ||
Dimension Drawing

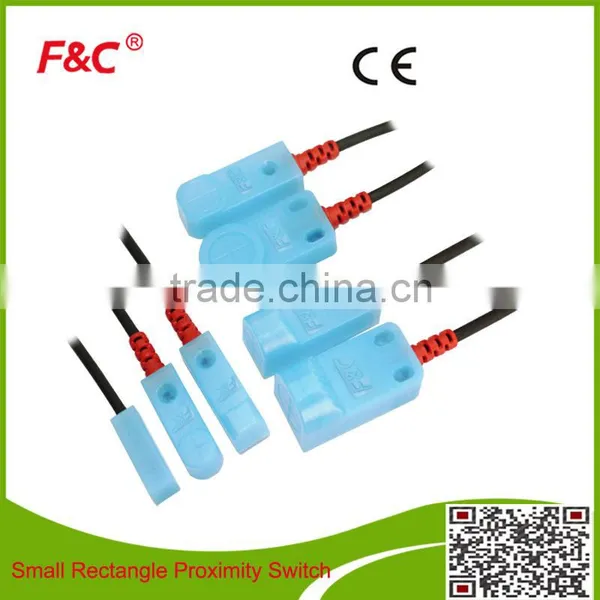

More Product for our small square inductive proximity switch sensor
| Category | Model | Detection Mode | Detection Distance | Standard Detection Object |
Connecting Method |
| Front Induction | F3N-06TN01-N R2M | NPN NO | Max detection distance: 1.5mm Stable detection distance 0~1.0mm |
6×6×1(iron) | diameter 3mm×2M/3 wires 150mm lead line with M8 connector |
| F3N-06TN01-N2R2M | NPN NC | ||||
| F3N-06TN01-P R2M | PNP NO | ||||
| F3N-06TN01-P2R2M | PNP NC | ||||
| Top Induction | F3N-06DN01-N R2M | NPN NO | |||
| F3N-06DN01-N2R2M | NPN NC | ||||
| F3N-06DN01-P R2M | PNP NO | ||||
| F3N-06DN01-P2R2M | PNP NC | ||||
| Front Induction | F3N-08TN02-N R2M | NPN NO | Max detection distance: 2mm Stable detection distance 0~1.8mm |
8×8×1(iron) | diameter 3mm×2M/3 wires diameter 3mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-08TN02-N2R2M | NPN NC | ||||
| F3N-08TN02-P R2M | PNP NO | ||||
| F3N-08TN02-P2R2M | PNP NC | ||||
| F3N-08TN02-B R2M | 2 wires NO | ||||
| F3N-08TN02-B2R2M | 2 wires NC | ||||
| Top Induction | F3N-08DN02-N R2M | NPN NO | |||
| F3N-08DN02-N2R2M | NPN NC | ||||
| F3N-08DN02-P R2M | PNP NO | ||||
| F3N-08DN02-P2R2M | PNP NC | ||||
| F3N-08DN02-B R2M | 2 wires NO | ||||
| F3N-08DN02-B2R2M | 2 wires NC | ||||
| Front Induction | F3N-12TN04-N R2M | NPN NO | Max detection distance: 4mm Stable detection distance 0~3.2mm |
12×12×1(iron) | diameter 4mm×2M/3 wires diameter 4mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-12TN04-N2R2M | NPN NC | ||||
| F3N-12TN04-P R2M | PNP NO | ||||
| F3N-12TN04-P2R2M | PNP NC | ||||
| F3N-12TN04-B R2M | 2 wires NO | ||||
| F3N-12TN04-B2R2M | 2 wires NC | ||||
| Top Induction | F3N-12DN04-N R2M | NPN NO | |||
| F3N-12DN04-N2R2M | NPN NC | ||||
| F3N-12DN04-P R2M | PNP NO | ||||
| F3N-12DN04-P2R2M | PNP NC | ||||
| F3N-12DN04-B R2M | 2 wires NO | ||||
| F3N-12DN04-B2R2M | 2 wires NC | ||||
| Front Induction | F3N-15TN05-N R2M | NPN NO | Max detection distance: 5mm Stable detection distance 0~4mm |
15×15×1(iron) | diameter 4mm×2M/3 wires diameter 4mm×2M/2 wires 150mm lead line with M8 connector |
| F3N-15TN05-N2R2M | NPN NC | ||||
| F3N-15TN05-P R2M | PNP NO | ||||
| F3N-15TN05-P2R2M | PNP NC | ||||
| F3N-15TN05-B R2M | 2 wires NO | ||||
| F3N-15TN05-B2R2M | 2 wires NC | ||||
| Top Induction | F3N-15DN05-N R2M | NPN NO | |||
| F3N-15DN05-N2R2M | NPN NC | ||||
| F3N-15DN05-P R2M | PNP NO | ||||
| F3N-15DN05-P2R2M | PNP NC | ||||
| F3N-15DN05-B R2M | 2 wires NO | ||||
| F3N-15DN05-B2R2M | 2 wires NC |
Our service
About product: All our sensors use high quality material and we accept customization of all kinds of sensors
About warranty: we promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Our factory
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors,located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of “Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.
F&C Sensing Technology History
F&C Sensing Technology was established in Taiwan in 1996
Establish branch office in Dongguan in 2003.
Establish factory in Dongguan 2006.
Establish factory in Changsha in 2013
Order information
140 kinds of sensors has stock, it cut lead time obviously.
Sample is avaliable and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
