Home > Electrical & Electronics > Sensor > Pressure Sensor > F3N Series Big Rectangle Proximity Switches Sensors, Long and Wide Range Sensors
F3N Series Big Rectangle Proximity Switches Sensors, Long and Wide Range Sensors
US$ 50 - 70
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3N series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F3N Series Universal Rectangle Proximity Switches Sensors, With Red Tube Protected From DamageUS$ 3 - 20MOQ: 20 Pieces -
F3N Series 25*25mm Top Sensing And Front Sensing Inductive Proximity Sensor, Long Sensing Range Proximity SensorUS$ 10 - 20MOQ: 20 Pieces
-
F3N-18TN05 Series (SN04), Square Shape Inductive Proximity Sensor, Reverse Polarity Protected, Short-Circuit Protected, IP67US$ 2 - 4MOQ: 20 Pieces
-
Small Rectangle Inductive Proximity Sensor Switch(F3N-06DN01-NR2M)US$ 8.89 - 10.75MOQ: 10 Pieces
-
Small 12V-24V Inductive Proximity Sensor Switch With PNP NO and NPN NC(F3N-08TN02)US$ 5.07 - 8.9MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3N series
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Hysteresis | 1O%≤sensing distance |
Operating voltage | DC:10~30VDC±10% |
Current consumption | DC:≤8mA No—Load |
Load current | DC:30V 200mA Max |
Leakage current | DC:≤1.1mA no-Load |
Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
Residual votage | DC:≤1.0VDC No-load |
Operating temperature | -20°C~+70°C |
Material | ABS |
Wiring method | φ3×2M/3-wires |
Protection degree | IP66 |

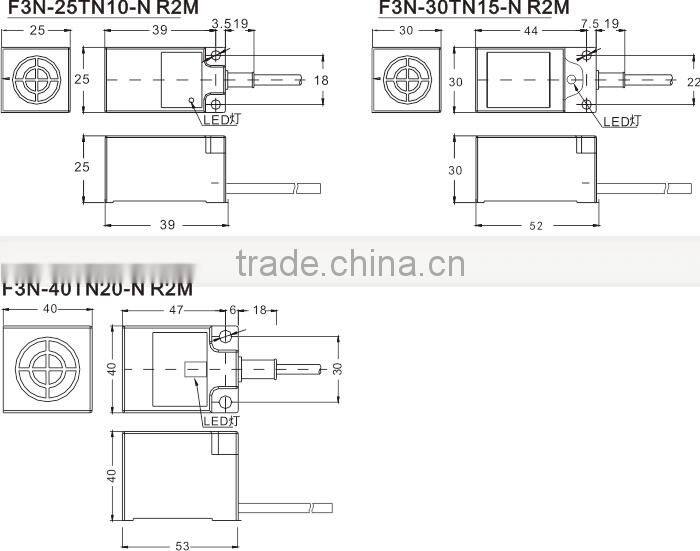

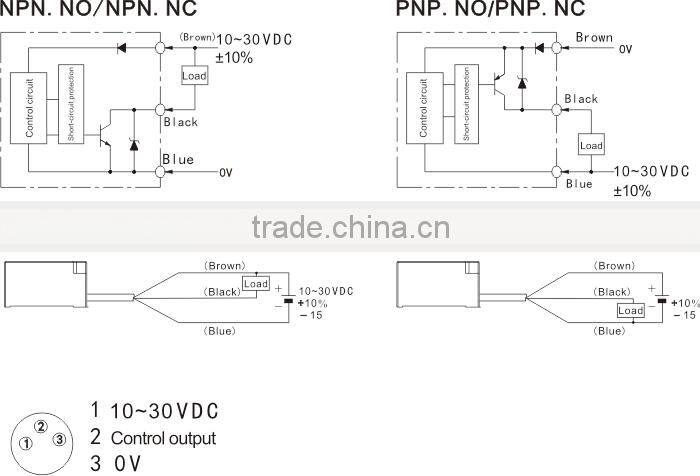

Diagram
