F3N-18TN05 Series (SN04), Square Shape Inductive Proximity Sensor, Reverse Polarity Protected, Short-Circuit Protected, IP67
US$ 2 - 4
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3N series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Rectangle Inductive Proximity Sensor Switch(F3N-06DN01-NR2M)US$ 8.89 - 10.75MOQ: 10 Pieces -
Small 12V-24V Inductive Proximity Sensor Switch With PNP NO and NPN NC(F3N-08TN02)US$ 5.07 - 8.9MOQ: 10 Pieces
-
F&C Q6 Small Square Induction Proximity Sensor With CEUS$ 1 - 14MOQ: 1 Piece
-
12-24V DC 8mm NPN and PNP Type Small Inductive Proximity Sensor Switch(F3N-08TN02-NR2M)US$ 5.07 - 8.9MOQ: 10 Pieces
-
Q8 12-24V Sn 2mm Top Induction Small Square Proximity Sensor With CEUS$ 1 - 8MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
F3N series
Usage
Position Sensor
Theory
Inductance Sensor
Output
Switching Transducer
Old Part Number: SN04, Now Changed!~
this sensor can be customized, 8mm sensing range offered, 5VDC Working voltage offered.
Part number:
1) F3N-18TN05-N NPN.NO
2) F3N-18TN05-N2 NPN.NC
3) F3N-18TN05-P PNP.NO
4) F3N-18TN05-P2 PNP.NC
PS. Choosed the output that you wanted
Response friquency | DC:600Hz 250/second | ||||
Hysteresis | 1O%≤sensing distance | ||||
Operating voltage | DC:10~30VDC±10% | ||||
Current consumption | DC:≤8mA No—Load | ||||
Load current | DC:30V 200mA Max | ||||
Leakage current | DC:≤1.1mA no-Load | ||||
Residual votage | DC:≤1.0VDC No-load | ||||
Operating temperature | -20°C~+70°C(anti-temperature type: 120°C) | ||||
Material | ABS/PE | ||||
Wiring method | φ3×2M/3-wires, M8 3cores | ||||
Protection degree | IP67 | ||||

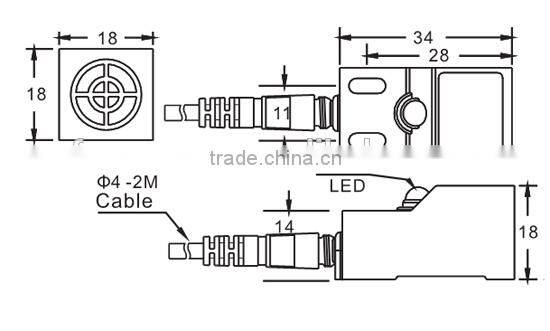

Diagram
