Rg6,rg11 Rotary Multi Function Flat Cable Stripper

Name: Rg6,rg11 Rotary Multi Function Flat Cable Stripper
Brand: DongBei
SKU: 124552405
Availability: InStock

US$ 1.5 - 3 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

DongBei

Model Number:

DB8035-C

Yangzhou Dongbei Electronic Equipment Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name DongBei

Model Number DB8035-C

Specifications

flat cable stripper
1.High quality
2.Best service
3.Factory prices
4.Small MOQ

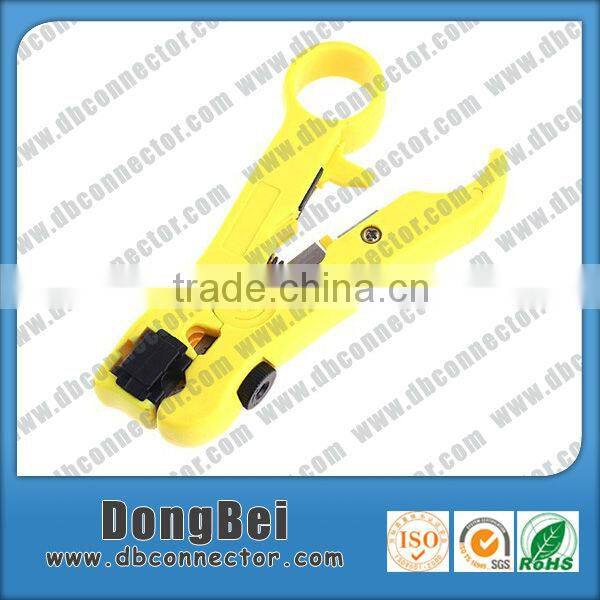

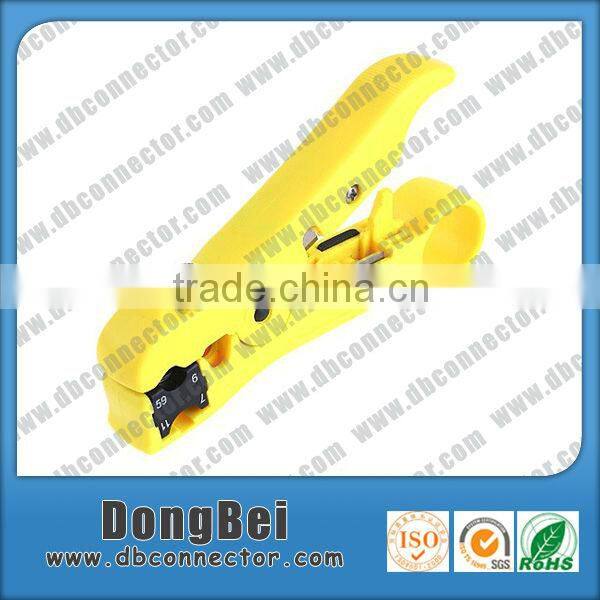

rg6,rg11 rotary multi function flat cable stripper

Product size	123 x 72 x 23 mm
Product weight	61g
Package size	199 x 100 x 21 mm
Package weight	86g
Stripes outer jackets of UTP and STP cable and CAT 5 round telephone cable
Stripes RG-59/6/7/11 coaxial cable
Stipes flat telephone cable
With cutter function
Needs no batteries or electric
Simple operation
Ergonomic design
Compact and lightweight

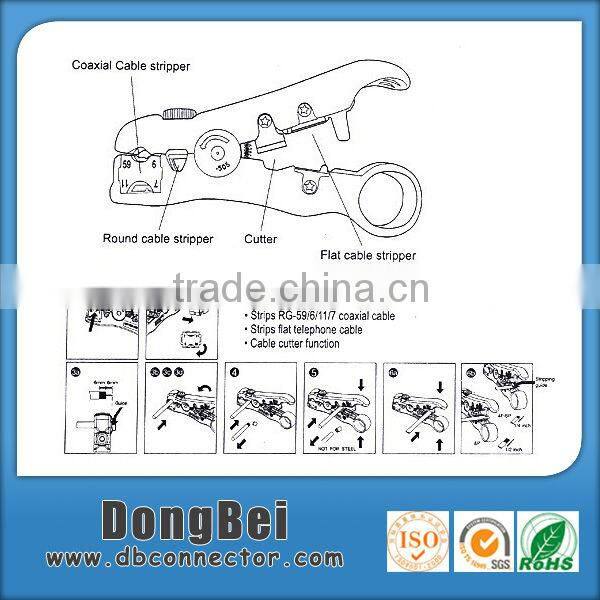

RG6 RG11 rotary multi function flat cable stripper instructions:

Push the cassette out of the housing, push from the front of the cassette
Cassette is reversible, one side is available for GG-59/6 and another side is for RG-7/11
For stripping coaxial cable
-Insert the cable until it aligns with the cable guide
-Insert your index finger into the stripper's finger ring,rotate the stripper by counter clockwize 3-5 times
-The cable insulation is cut while you are turning the stripper
-Open the jaws and remove the cable. Pull away the outer jacket and dielectric to expose the inner conductor
-Stripping distance is designed for 6mm, for each dielectric and inner conduct
For stripping round networking cable
-Insert the cable into the second stripping hole,rotate 1-3 times at counter clockwise and then open the jaw and remove the outer jacket
-The black color adjusting knob is for adjusting the blade's depth.Turn clockwise for increasing the blale's depth and counter clockwise for reducing the depth
For cutting coaxial cable, round networking cable or flat telephone cable, place the cable in position and then squeeze the handles
For stripping flat cable, insert the cable between the stripper blades. Squeeze handles,Cable must be kept perpendicular and then pull from the tool
-Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide
-Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade
