Specifications
5/8 housing port terminator1) 2 pcs design
2) standard length silver plating pin
3)O ring sealed ,watertight

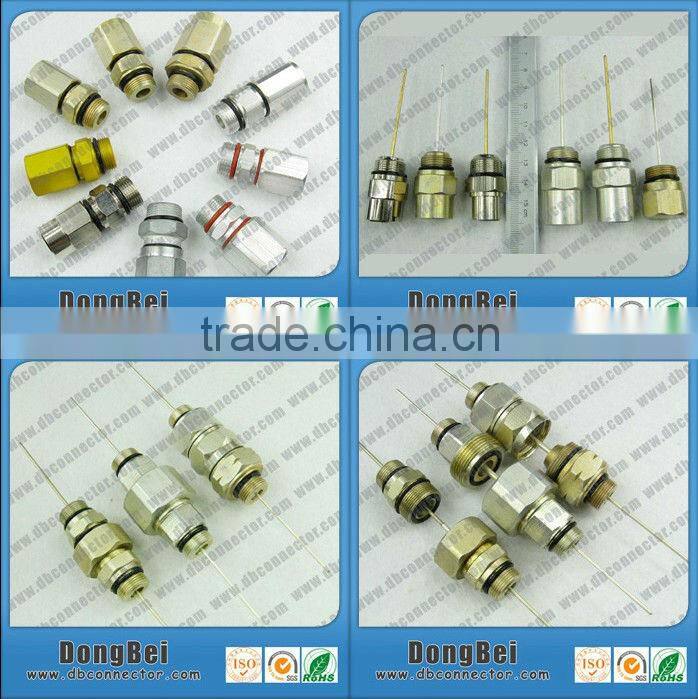

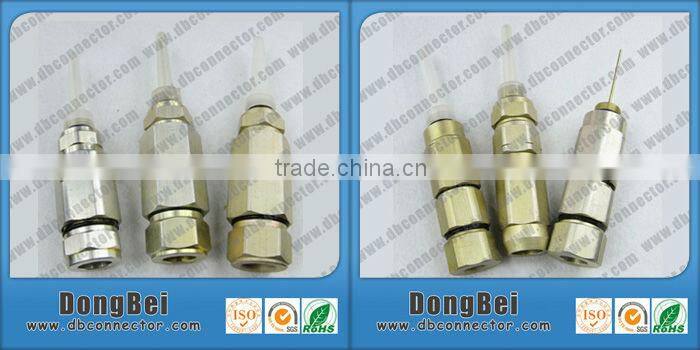

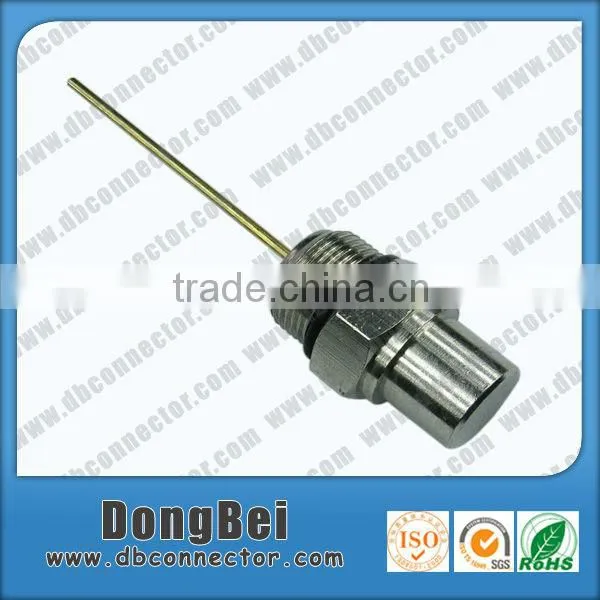

aluminum ks port 5/8 housing port terminator
Connector type |
5/8 KS |
Vibration |
100m/s2 (10~500Hz) |
Frequency Range |
DC~1GHz |
Durability(mating) |
≥500(cycles) |
Impedance |
75Ω |
Temp.range |
-25~+60°C |
Insertion Loss |
< 0.3dB |
Material |
Shell : Aluminium |
Power Capacity |
> 20 A |
Inner conductor: Brass, silver plating |
|
|
Internal ≤ 10 mΩ |
||
External ≤ 5 mΩ |
Insulator: Plastic |
||
Insulating resistance |
≥ 1000 MΩ @DC500V |
O Ring: Silicon Rubber |
|
Withstanding voltage |
170V max |
Applicable standard |
IEC 60169-24 |
- Wide bandwidth for use in broadband systems
- Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters
- O-ring sealed ,watertight

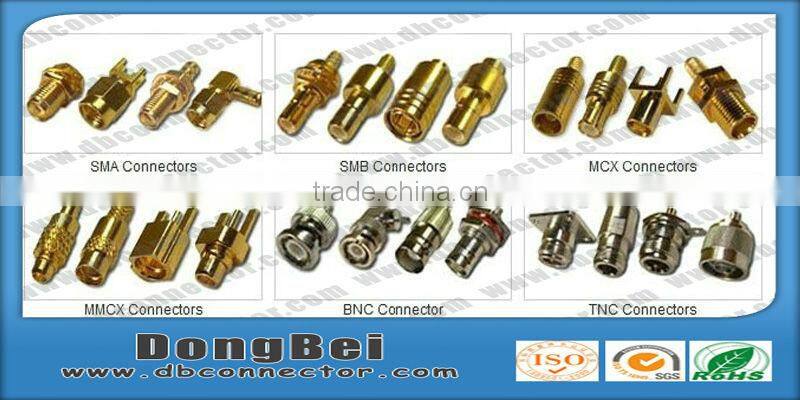

OTHER TYPE CONNECTOR
