Yangzhou Dongbei Electronic Equipment Factory: Yangzhou, Jiangsu, China; Main products: Connector Coaxial Connector, Cable Assemblies

Home > Products > terminator > F Port Locking Cable Terminators Connector

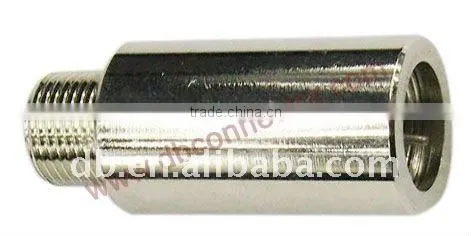

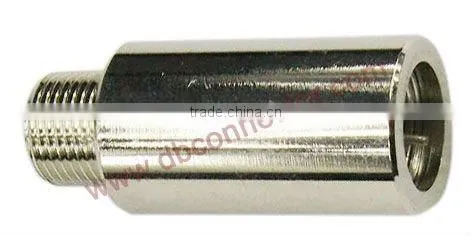

F Port Locking Cable Terminators Connector

FOB Price

US$ 0.01 - 0.3 / Piece

5000 Pieces(Min. Order)

Port Shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	db
Model Number	OPT-LOCK-2	Type	F
Application	RF	Gender	Other, male to female

Product Description

Specifications

F Port Locking Cable Terminators Connector
1,Good price
2,High return loss
3,We can supply the connector with your design

Technical characteristics:

Temp-range		-40°C~+60°C
Impedance		75Ω
Frequency range		0~1GHz
Center conductor withdrawal force		≥0.49N
Contact resistance	Center conductor	≤6mΩ
	Outer conductor	≤1mΩ
Insulation resistance		≥1000MΩ
Withstand Voltage	At sea level	750V
Working voltage		170V max
VSWR	Straight	≤1.20
	Angle	≤1.30
Durability		500 cycles

Applications:

--Telecom--Antennas--Radios--Broadcast--Coaxial cable--CCTV

About us:

--OEM are welcome

--High quality but low price

--We have many types connector for your choosing, if you have any query please fell free to contact me, I am glad service for you

--We have professional team to service for you, please tell me your detail information then I will offer you the right products you need

Packing Details:

--100pcs/pack

--50packs/carton

--Net weight:30kg

--Gross Weight: 32kg

--Carton size: 48*50*54cm

Features:

--Wide hexagon nut for ease of tightening

--Quality brass plated Nickel

--Versions available to meet every requirement

--Precision high reture loss version ensures the most consistent impedance match possible --Prevents signal ingress and egress

--Reduces water migration into open port
