Specifications

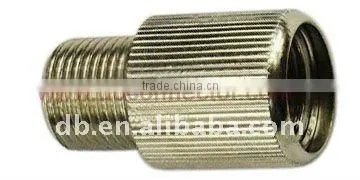

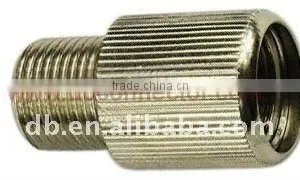

F Port Locking Cable Terminators Connector1,Good price
2,High return loss
3,We can supply the connector with your design
Technical characteristics:
Temp-range |
-40°C~+60°C |
|
Impedance |
75Ω |
|
Frequency range |
0~1GHz |
|
Center conductor withdrawal force |
≥0.49N |
|
Contact resistance |
Center conductor |
≤6mΩ |
Outer conductor |
≤1mΩ |
|
Insulation resistance |
≥1000MΩ |
|
Withstand Voltage |
At sea level |
750V |
Working voltage |
170V max |
|
VSWR |
Straight |
≤1.20 |
Angle |
≤1.30 |
|
Durability |
500 cycles |
|
Applications:
--Telecom--Antennas--Radios--Broadcast--Coaxial cable--CCTV
About us:
--OEM are welcome
--High quality but low price
--We have many types connector for your choosing, if you have any query please fell free to contact me, I am glad service for you
--We have professional team to service for you, please tell me your detail information then I will offer you the right products you need
Packing Details:
--100pcs/pack
--50packs/carton
--Net weight:30kg
--Gross Weight: 32kg
--Carton size: 48*50*54cm
Features:
--Wide hexagon nut for ease of tightening
--Quality brass plated Nickel
--Versions available to meet every requirement
--Precision high reture loss version ensures the most consistent impedance match possible --Prevents signal ingress and egress
--Reduces water migration into open port
