Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > CATV Aluminium F Port Locking Terminator

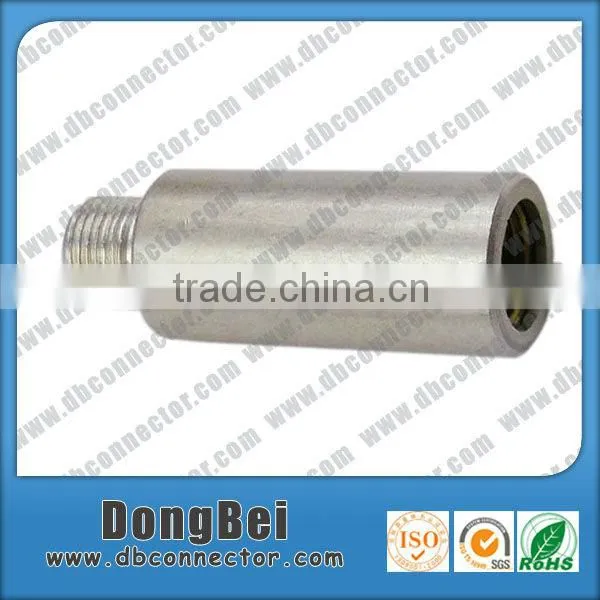

CATV Aluminium F Port Locking Terminator
Negotiable
MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Dongbei
Model Number:
OPT-AP
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

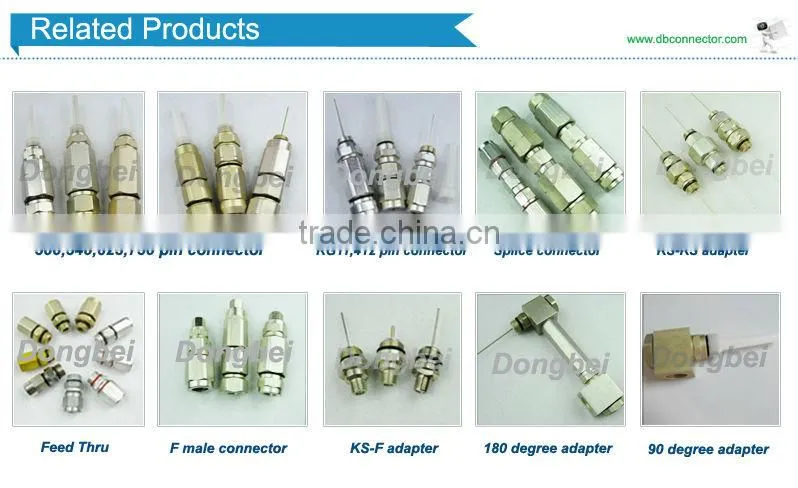

Related Products
-
Dongbei Coaxial Cable F Port Locking TerminatorNegotiableMOQ: 5000 Pieces -
Brass 5/8 ks Pin Terminator With CapacitorNegotiableMOQ: 5000 Pieces
-
All Metal Coaxial Cable f Connector TerminalNegotiableMOQ: 5000 Pieces
-
All Metal Coaxial Cable Port Locking f TerminatorNegotiableMOQ: 5000 Pieces
-
All Metal Coaxial Cable f TerminatorNegotiableMOQ: 5000 Pieces
Place of Origin
Jiangsu, China
Brand Name
Dongbei
Model Number
OPT-AP
Type
F
Application
RF
Gender
Male
Specifications
F locking terminator1) Wide bandwidth for use in broadband systems
2)O ring sealed watertight
3) ROSH,SGS
Connector type |
5/8 |
Vibration |
100m/s2 (10~500Hz) |
Frequency Range |
DC~1GHz |
Durability(mating) |
≥500(cycles) |
Impedance |
75Ω |
Temp.range |
-25~+60°C |
Insertion Loss |
< 0.3dB |
Material |
Shell : Aluminium |
Power Capacity |
> 20 A |
Conductor: Brass,silver plating |
|
|
Internal ≤ 10 mΩ |
||
External ≤ 5 mΩ |
Insulator: PTFE |
||
Insulating resistance |
≥ 1000 MΩ @DC500V |
O Ring: Silicon Rubber |
|
Withstanding voltage |
170V max |
Applicable standard |
IEC 60169-24 |
- Used to terminate unused ports reducing reflections
- Versions available to meet every requirement
- Precision high return loss version ensures the most consistent impedance match possible
- Prevents signal ingress and egress
- Reduces water migration into open port
