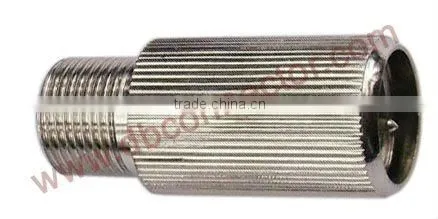

All Metal Coaxial Cable Port Locking f Terminator
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
db
Model Number:
OPT-lock-8
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All Metal Coaxial Cable f TerminatorNegotiableMOQ: 5000 Pieces -
All Metal f Port Terminator ConnectorNegotiableMOQ: 5000 Pieces
-
All Metal f Port TerminatorNegotiableMOQ: 5000 Pieces
-
Male to Female f Locking TerminatorNegotiableMOQ: 5000 Pieces
-
Alum 5/8 ks Pin Type Terminator Connector rf Pin Type ConnectorsNegotiableMOQ: 5000 Pieces
Place of Origin
Jiangsu, China
Brand Name
db
Model Number
OPT-lock-8
Type
F
Application
RF
Gender
Other, male to female
Specifications
f terminator1.Impedance: 75 Ohms
2.Plating : Nickel
3.material: zinc alloy or brass
4.water and weather proof f terminator
all metal f port locking terminator
Technical characteristics:
Temp-range |
-40°C~+60°C |
|
Impedance |
75Ω |
|
Frequency range |
0~1GHz |
|
Center conductor withdrawal force |
≥0.49N |
|
Contact resistance |
Center conductor |
≤6mΩ |
Outer conductor |
≤1mΩ |
|
Insulation resistance |
≥1000MΩ |
|
Withstand Voltage |
At sea level |
750V |
Working voltage |
170V max |
|
VSWR |
Straight |
≤1.20 |
Angle |
≤1.30 |
|
Durability |
500 cycles |
|
- One-piece crimp design,eliminates lost or mismatched components
- Wide hexagon nut for ease of tightening
- Quality brass plated Nickel
- Versions available to meet every requirement
- Precision high reture loss version ensures the most consistent impedance match possible
- Prevents signal ingress and egress
- Reduces water migration into open port
