Specifications
n male connector for flexible cable1.Watertight
2.50 ohm For RG8/ RG58 Cable
3.OEM accepted

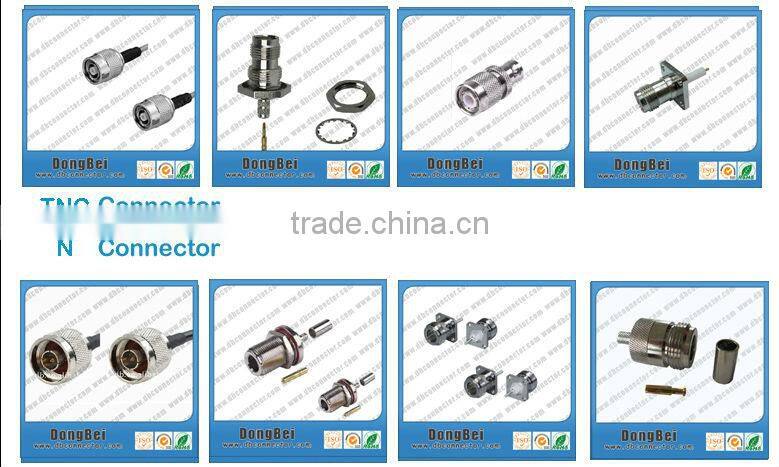

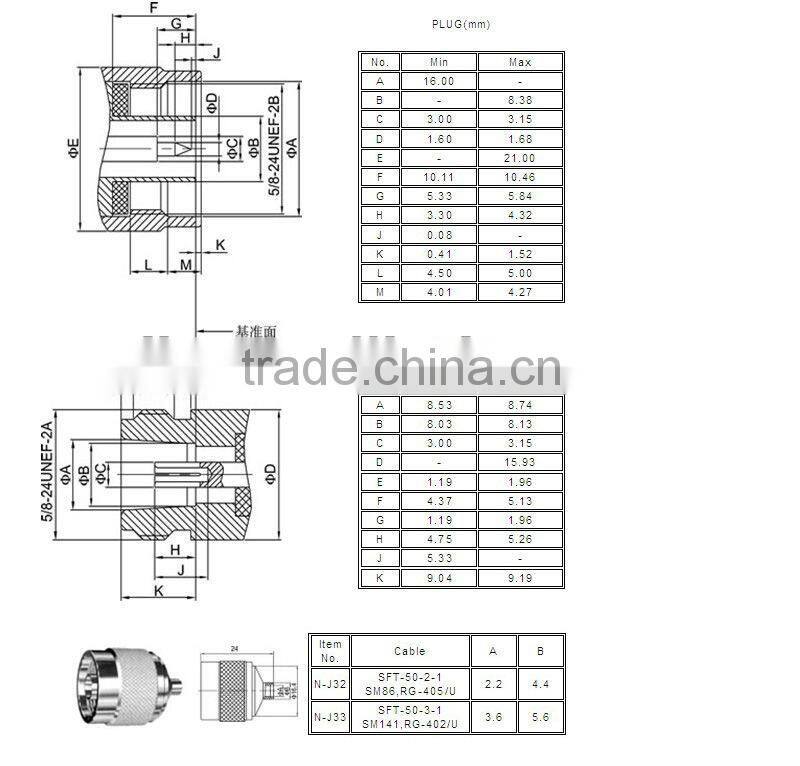

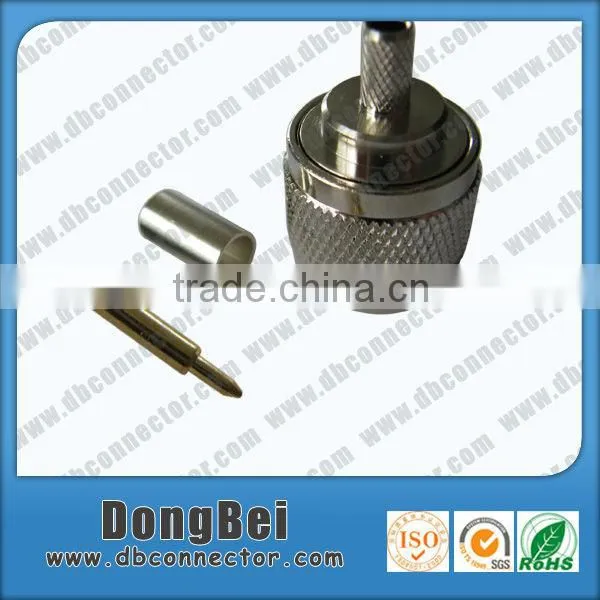

50ohm n male coaxial rf connector for flexible cable
n male connector for flexible cable
| Electrical | Material | ||
| Impedance | 50 Ω | Male Contacts | Brass, silver or gold plated |
| Frequency Range | 0 - 11 GHz | Female Contacts | Phosphorous bronze or beryllium copper, silver or gold plated |
| Voltage Rating | 1,500 volts peak | Other Metal Parts | Brass with ASTROplate® finish; M39012 has silver finish |
| VSWR | MIL-C-39012 straight connectors: 1.3 max 0-11 GHz | Insulators | TFE, copolymer of styrene or glass-TFE (hermetic seal) |
| MIL-C-39012 right angle connectors: 1.35 max 0-11 GHz | Weatherproof Gaskets | Silicone rubber of synthetic rubber | |
| Dielectric Withstanding Voltage | 2,500 volts rms | Crimp Ferrule | Copper |
| Insulation Resistance | 5,000 MΩ minimum | Environmental | |
| Center Contact Resistance | 1.0 mΩ | Temperature Range | TFE: -65°C to +165°C |
| Outer Contact Resistance | 0.2 mΩ | Weatherproof | All series N with gaskets are weatherproof |
| RF Leakage | -90 dB minimum at 3 GHz | Hermetic Seals | Pass helium leak test of 2x10-8 cc/sec |
| Insertion Loss | .15 dB maximum at 10 GHz | Pressurized Shock | Compression seal MIL-STD-202, method 213 |
| Mechanical | Vibration | MIL-STD-202, method 204, test condition B | |
| Mating | 5/8-24 threaded coupling | Moisture Resistance | MIL-STD-202, method 106 |
| Braid or Jacket Cable Affixment | All crimps: hex braid crimp | Corrosion | MIL-STD-202, method 101, test condition B |
| Clamps: screw-thread nut and braid clamp | Temperature Cycling | MIL-STD-202, method 102, test condition C | |
| Center Conductor Cable Affixment | Crimp: crimp or solder | Altitude | MIL-STD-202, method 105, test condition C |
| All others: solder only | Military | ||
| Captivated Contact | All crimps unless specified otherwise | ||
| Cable Retention | Crimps: 60-120 lbs | MIL-C-39012 | Where applicable |
| Clamps: 30-70 lbs | MIL-A-55339 | ||
Advantage | |
1 | High quality.Strict quality control system, advanced quality inspection center and norms to ensure our products with excellent quality. |
2 | Competitive price. Companies to implement strict cost control, so we can maximize the lower production costs, the most favorable prices available for you. |
3 | Extensive production experiences. Our factory has been more than fifteen years of history, during which our factory has accumulated rich production experience. |
4 | Quick and flexible customization capability. Our factory has separated sample making room , so you just need to give us your sample or idea then you can receive the actual sample you want. |
N connectors are very robust, reliable classical connectors with screw locking system in medium dimensions which are characterized by high degree of protection, weatherproofness and well intermodulation. Thay are excellent qualified for cable connectors used in mobile base stations and antennas.
| Interface and quality tested according to IEC 60169-16. | |
| Frequency range up to 6GHz | |
| VSWR(straight connector): ≤1.2 typ. | |
| Screw lock coupling system | |
| High degree of protection, waterproof |
