Specifications
1.SMA vertical pcb connector2.High quality
3.fast delivery
4.Competitive factory prices
5.OEM accepted

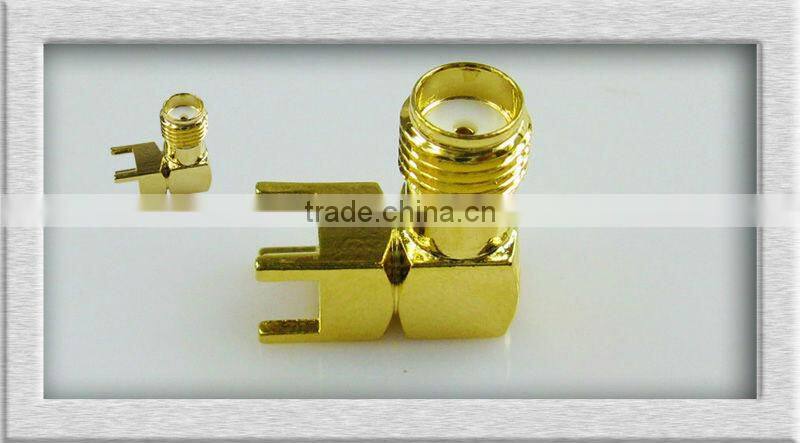

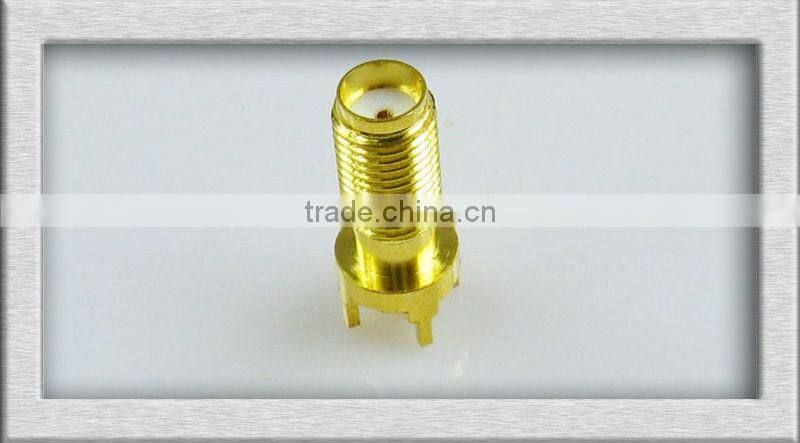

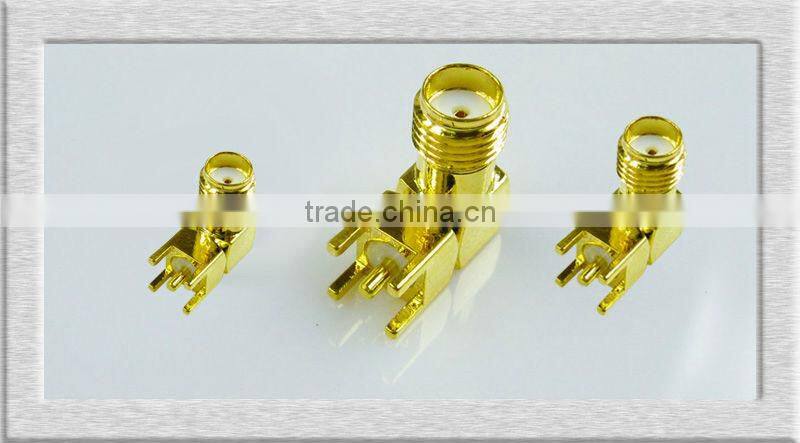

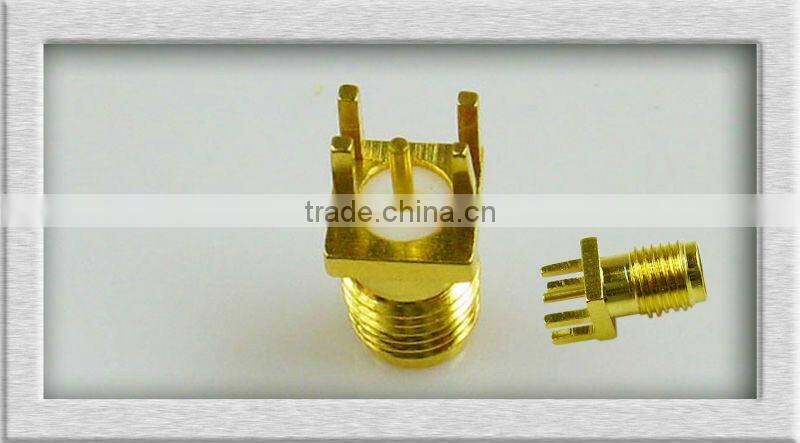

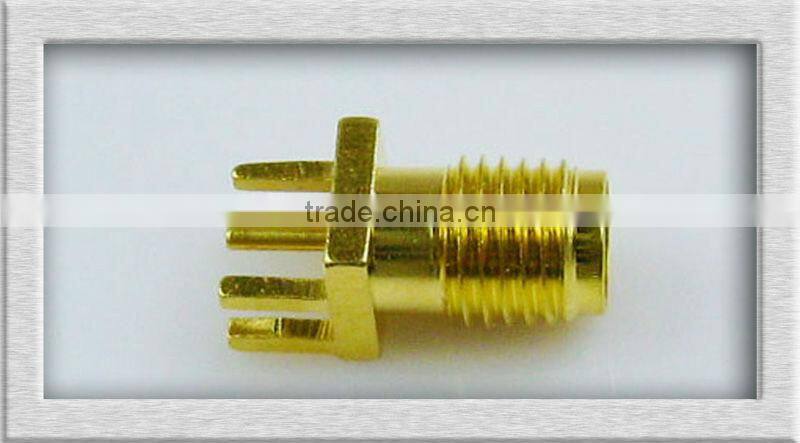

RF coaxial connector crimp SMA vertical pcb connector
Product Feature
******************************************
| *-----SMA connectors are semi-precision, subminiature units that provide excellent electrical performance from DC to 18 GHz |
| *-----SMA connectors for semi-rigid coaxial cables and the SMA Plug-to-Jack adapter offer a precise and simple means of phase adjustment for microwave devices |
| *-----SMA is available both in Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors |
| Impedance | 50 ohms |
| Frequency Range | 0 to 5GHz |
| Working Voltage | RG-178 = 170Vrms at sea level max. RG-174, 188, 316 = 250 Vrms at sea level max. RG-58 = 335 Vrms at sea level max |
| Insulation Resistance | 5000 Megohms min. |
| DWV | RG-178 = 500 Volts rms min. RG-174, RG188, RG316= 750 volts rms min. RG-58 = 1000 olts rms. min. |
| VSWR | Straight connector: RG178 = 1.20 + 0.025F (F in GHz) RG174, 188, 316= 1.15 + 0.02F (F in GHz) RG58 = 1.15 + 0.01F (F in GHz) R/A connector: RG178= 1.20 + 0.03F (F in GHz) RG174, 188, 316= 1.15 + 0.03F (F in GHz) RG58= 1.15 + 0.02F (F in GHz) |
Product Show
*************************************
Similar Products Show
***********************************************************
* We have various types connector and an professional ,experienced service team.
* Welcome to login our website check more products information.
Dongbei QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if there is any questions.
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
