Hot Sale 90 Degree Coaxia Cable Rg6 With Sma Connector Db002 From Dongber Factory
- Shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Dongbei | |
| Model Number | db-002 | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
Specifications
cable rg6 with sma connector1) Insulator PTFE
2) gold plated
3) easy for installation
4) right angle connector

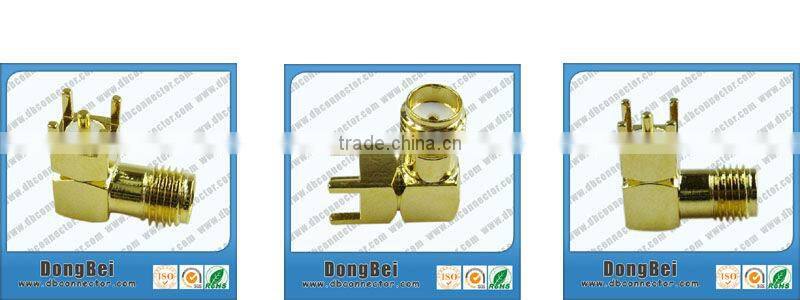

hot sale 90 degree coaxia cable rg6 with sma connector db002 from dongber factory
| Connector type | sma rf connector | Working Voltage | 335V max |
| Frequency Range | DC-6GHz | vswr | max 1.3 |
| Impedance | 50Ω | Temp.range | -25~+60°C |
| Conductor resistance | Internal ≤ 6mΩ | Material | Shell:brass, gold plated |
| External ≤ 2mΩ | Nut:brass, gold plated | ||
| Insulating resistance | ≥ 1000 MΩ | pin:brass,gold plating | |
| Withstanding voltage | 400V rms | Usability | 500 Cycles min |
♥ Telecom ♥ PC/LAN ♥ Cable Assemblies
♥ Components ♥ Instrumentation ♥ Base Stations
♥ Mil/Aero ♥ Process Controls
- Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
- Offer excellent RFI shielding properties
- easy-grip free-spinning nut for fast installation and installer comfort
- Designed to be watertight for outdoor applications
our main market: north America South America Eastern Europe
Southeast Asia Africa Oceania
Mid East Eastern Asia Western Europe
Central America Southern Europe South Asia
Our products are sold to all over the world !
PS:
- OEM are welcome
- high quality but low price
- We have many types connector for your choosing, if you have any query please fell free to contact me, I am glad service for you
- We have professional team to service for you, please tell me your detail information then I will offer you the right products you need
Dongbei QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
