Home > Products > RF connector > RP SMA Solder Jack Flange Coaxial Cable Circular Connector Adapter

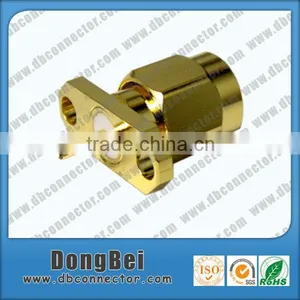

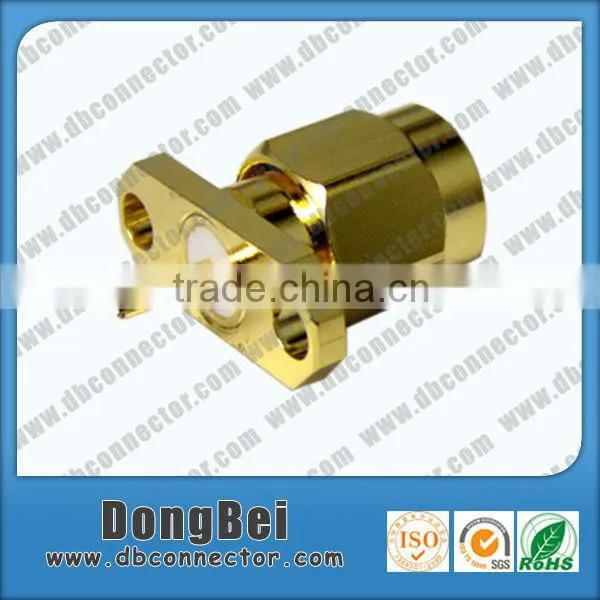

RP SMA Solder Jack Flange Coaxial Cable Circular Connector Adapter
US$ 0.15 - 2
/ Piece
1000 Pieces(Min. Order)
- Shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DB Connector | |
| Model Number | DB-018 | Type | SMA | |
| Application | RF | Gender | Female |
Product Description
Specifications

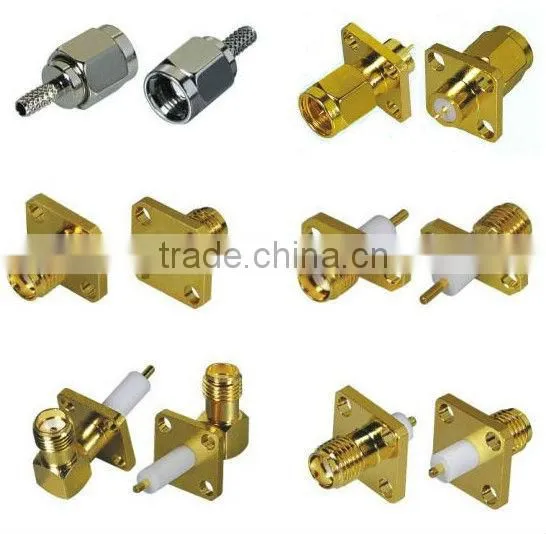

SMA RF cable circular connector1.small-sized thread coupling
2.wide frequency range
3.excellent performance
4.ISO9001 pass
SMA RF cable circular connector
| Mechanical facts | |
| characteristic Impedance | 50Ω |
| frequency range | 0-18GHz |
| withstanding voltage | 750~1500V,50Hz |
| working voltage | 250~500 v,50Hz (see level) |
| 65~125 v,50Hz (height 21000m form sea level) | |
| insulation resistance | ≥5000mΩ |
| contact resistance | inner conductor ≤3mΩ |
| outer conductor ≤2.5mΩ | |
| RF leakage(1GHZ) | flexible ≥60dB |
| semi-rigid cable ≥100dB | |
| Material facts | |
| pin conductor | brass/beryllium copper--gold plated |
| body/outer conducter | beryllium copper--gold plated |
| stainless steel--passivation | |
| brass---gold plated/ternary alloy(Cu+Zn+Sn) | |
| phosphor bronze---gold plated | |
| plug | beryllium copper/phosphor bronze--gold plated |
| crimping sleeve | brass--gold plated |
| Insulator | PTFE / PFA |
| sealing ring | silica rubber |
Features & Benefits
- Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design.
- Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
- Available for .085" and .141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316.
- Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming.
Applications
- Base Stations
- Cable Assemblies
- Components
- Instrumentation
- Mil/Aero
- PC/LAN
- Process Controls
- Telecom
