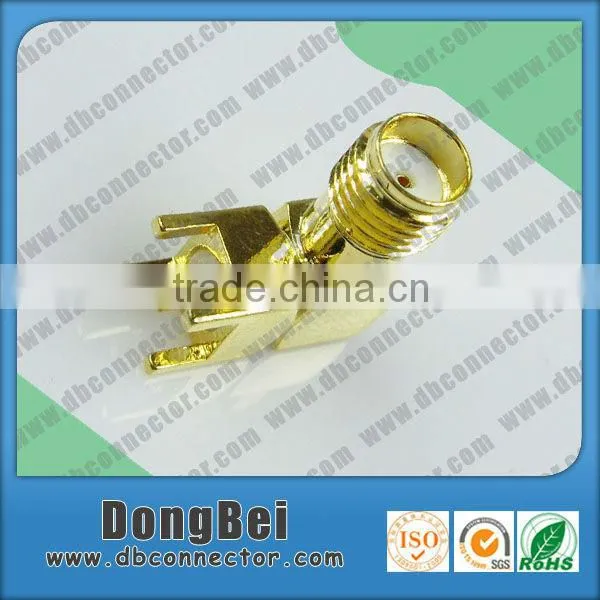

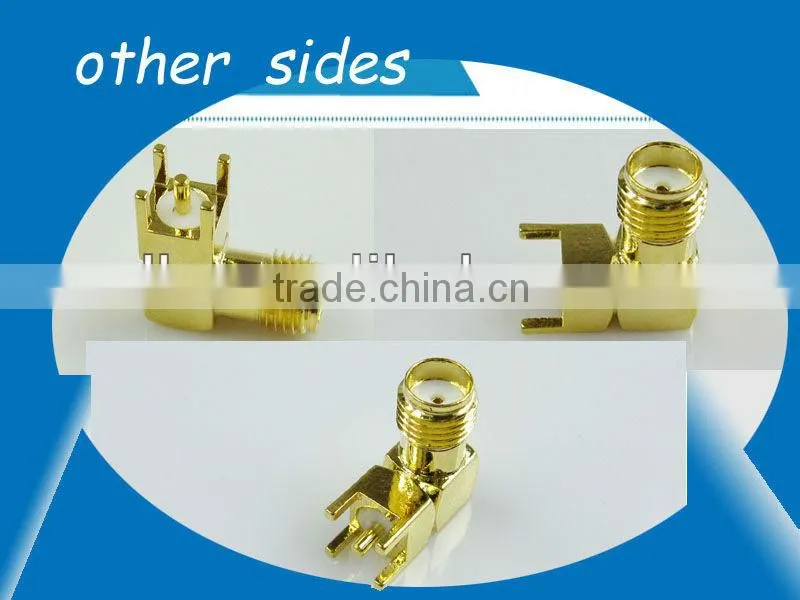

Help Center2013 Popular SMA Male RF Coaxial For Right Angle PCB Connector
Related Products
-
Dongbei 2013 SMC SMA RF Right Angle Female Connector PCB MountUS$ 0.1 - 0.4MOQ: 5000 Pieces -
SMA Type 50ohm RG174 RG316 RG179 Cable ConnectorUS$ 0.15 - 2MOQ: 1000 Pieces
-
50ohm Female Right Angle Sma Waterproof ConnectorUS$ 0.1 - 1.5MOQ: 500 Pieces
-
2013 Dongbei Male SMA RF Connector for PCB MountUS$ 0.1 - 0.65MOQ: 2000 Pieces
-
50 Ohm SMA Male Right Angle Antenna ConnectorUS$ 0.1 - 0.9MOQ: 1000 Pieces
Specifications
1.Brass body, Gold plating2.Waterproof SMA connector
3.For PC Mount
4.50 ohm
SMA RF Female Connector |
Technical Charateristics |
Impedance |
50 ohm |
Voltage Proof |
750V |
Withstand Voltage |
1500V rms |
Insulation Resistance: |
5000ohm min |
Temp.range |
-55~+155°C |
Frequency Range |
DC - 4 GHz |
Insertion Loss |
≤0.20dB |
Durability(mating) |
500 cycles |
50 ohm coaxial RF SMA Connector
Type SMA is one kind of RF coaxial connectors that is widely applied, with small-sized thread coupling. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system, controlled program, microwave equipment and digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Radio Frequency (RF) connectors:

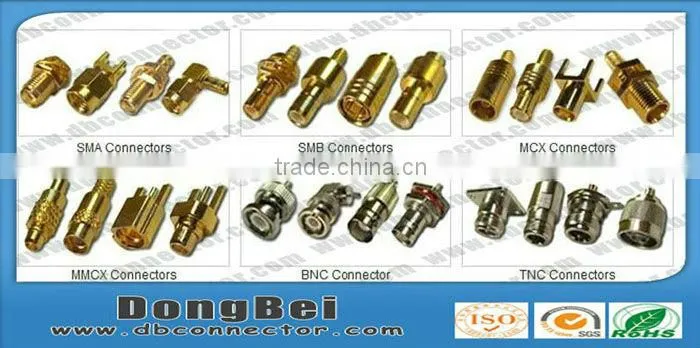

MMCX, MCX, SMA, SSMB, SMB, BNC, TNC, N, F CONNECTOR RF Connectors division of RF Industries designs and manufactures an extensive line of radio frequency. (RF) coaxial connectors used in wireless telecommunications applications,including WiFi, PCS, radio,computer networks, test instruments and antenna devices.
Feedback & Communication
1.All product have been checked and packaged in good condition before dispatch
2.If there are not satisfied with product and our service,Plase contact with us first before giving a non positive feedbak or ispute,We will try do our best to solve the promble.
3.We have always been doing our best to provide the best service and reliable products for our customer.
4.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Full range and High quality
We can servicing OEM and reseller customers in the CCTV surveillance and Audio Video equipments industries etc. Our product lines includes RG59 , RG6, RG11 series connector heads and all kinds of waterproof connectors. The factor has a professional R&D team, combined with years of R&D experience, can address thde specific customer needs and can provide customers with professional technical support and quality manufacturing.
