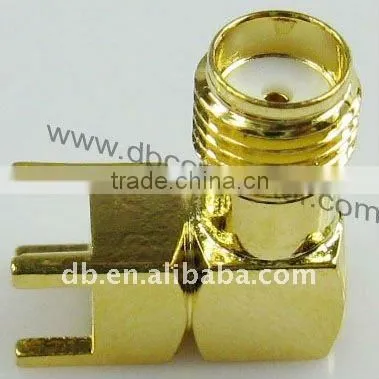

Help CenterMale PCB RF SMA SMB Right Angle Connnector
Related Products
-
2013 Dongbei Compression Pal Male to Rca Female ConnectorUS$ 0.1 - 0.4MOQ: 5000 Pieces -
High Frequency rf Male Sma Connector for Rg316 Rg58 Coaxial CableUS$ 0.1 - 1MOQ: 1000 Pieces
-
Dongbei 2013 Sma Male rf Connector for Rg174 Coaxial CableUS$ 0.1 - 0.65MOQ: 1000 Pieces
-
High Quality Good Price 50ohm SMA RF Male Pin Connector to RG316/RG174US$ 0.1 - 0.65MOQ: 5000 Pieces
-
Female Straight Pcb Mount Connector SMANegotiableMOQ: 500 Pieces
Specifications
Male Right Angle SMB PCB RF SMA connnector1.Watertight
2.50 ohm SMA SMB Connector
3,OEM accepted
Features:
--SMA connectors are semi-precision, subminiature units that provide excellent electrical performance from DC to 18 GHz
--SMA connectors for semi-rigid coaxial cables and the SMA Plug-to-Jack adapter offer a precise and simple means of phase adjustment for microwave devices. .
--SMA is available both in Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.
Technical Charateristics:
--Temp.range: -55~+155°C
--Impedance: 50 ohm
--Frequency Range: dc - 4 GHz
--Voltage Proof: 750V
--Insulation Resistance: 5000ohm min
--Withstand Voltage: 1500V rms
--Insertion Loss: ≤0.20dB
--Durability(mating): ≥ 500 cycles
Material & Plating:
Part name |
material |
plating |
|
Part name |
material |
plating |
Shell/Body |
brass |
Gold-plated |
|
Crimp ferrule |
copper alloy |
Nickel and gold plated |
elastic contact |
Be copper |
Gold-plated |
|
Insulator |
PTFE |
---- |
Pin |
Brass |
Gold-plated |
|
Gasket |
Silicone rubber |
---- |
socket |
Be copper |
Gold-plated |
|
|
|
|
Applications:
--Base Stations PC/LAN
--Components Mil/Aero
--Cable Assemblies Instrumentation
--Process Controls Telecom
About us:
--OEM are welcomed
--High quality but low price
--We have many types connector for your choosing.
--We have professional team to service for you.
Packing Details:
--100pcs/pack
--60packs/carton
--Gross Weight: 20kg
