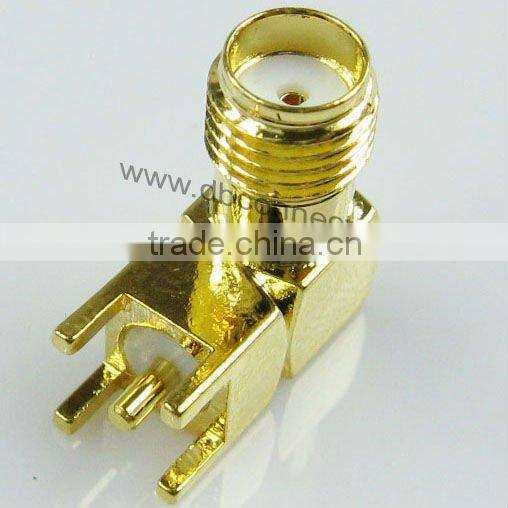

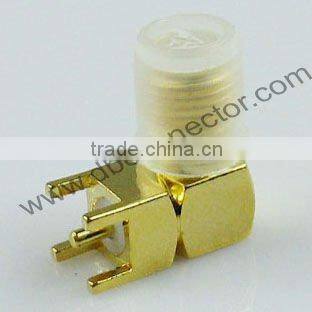

Dongbei Coaxial RF SMA Connector
- shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DB | |
| Model Number | SMA-KWE | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
Specifications
RF SMA connector1.Brass,gold plating
2.Impedance: 50 Ohm
3.High reliability,durability,excellent performance
4.small size
Name:SMA RF Coaxial connector
Type: SMA-KWE
Material : centre contact: Brass,gold plated
Body :brass,gold plated
coupling nut: brass,gold plated
Gasket: MVQ (silicon Rubber)
Insulator: PTFE
--------------------------------------------------------------------
Type SMA is one kind of RF coaxial connectors that is widely applied, with small-sized thread coupling. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system, controlled program, microwave equipment and digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
------------------------------------------------------------------
We have various types connector and an professional ,experienced service team.
welcome to login our website check more products information.
and looking forward your inquiry,we will be glad to quote for you !
