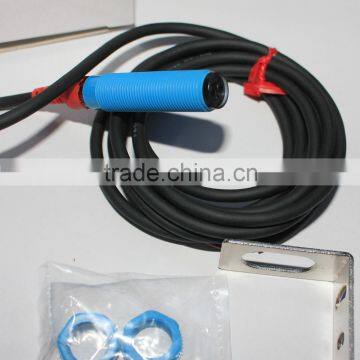

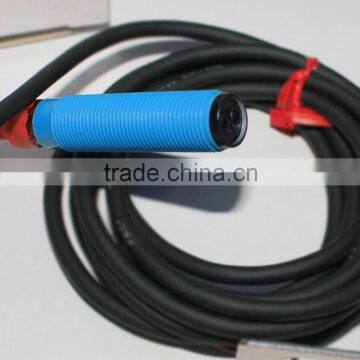

F&C DR12 Series M12 Photoelectric Sensors, Cylinder Photo Sensors, Infrared Photo Switches

F&C Sensing Technology (Hunan) Co., Ltd.

US$ 10 - 30 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

DR12 series

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name F&C

Model Number DR12 series

Usage Position Sensor

Theory Optical Sensor

Output Switching Transducer

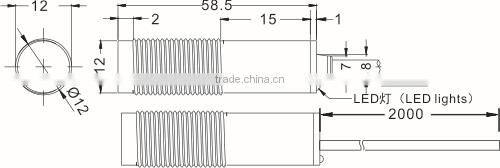

PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.

Product Description

Emitting light	Red LED:630nm
Operating voltage	DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.No/N2=NPN.NC P=PNP.NO/P2=PNP.NC NC=NPN.NO.NC PC=PNP.NO.NC
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C~+45°C(No freezing allowed )
Ambient hunidity	35%~85%RH
Storage temperarure	-10°C~+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ4×2M/3-wires/φ4×2M/2-wires/φ4×2M/4-wires
Protection degree	IP67
Weight	Approx.20g
