Help Center64kw 80kw 96kw Three Phase Solar Battery Inverter With MPPT Charge Controller
Related Products
-
Best Supply 3 Phase ac dc Pure Sine Hybrid Solar Inverter With MPPT Charge Controller Inverter PowerUS$ 800 - 20,000MOQ: 1 Piece -
Factory Supply 3 Phase off Grid Power Inverter With MPPT Charger ControllerUS$ 800 - 20,000MOQ: 1 Piece
-
60KVA 3 Phase Pure Sine Solar Inverter With MPPT ChargerUS$ 800 - 20,000MOQ: 1 Piece
-
High Efficiency ac dc Inverter With MPPT Charge Controller Power Inverter 8kwUS$ 800 - 20,000MOQ: 1 Piece
-
Three Phase Solar Power Inverters Power Inverter With MPPT Charge ControllerUS$ 800 - 20,000MOQ: 1 Piece
GENERAL DESCRIPTION:
These series of inverters are hybrid inverter with built-in MPPT solar charge controller. Advantages include high conversion efficiency, low power consumption, strong loading ability etc.. Users can set battery charging mode, timing DC/AC mode to meet different requirements.This is the most high-end low frequency inverter with built-in MPPT solar charge controller.
PRODUCT FEATURES
_________________________________________________________________________________
- Intelligent design, simple structure, powerful control functions, stable performance, safe and reliable.
- Transfer efficiency up to 99%, saving 30%~60% solar panels compared with traditional controllers.
- With efficient MPPT operation scheme, the utilization rate of solar panels reaches 99%
- Intelligent design, lifelong service of on-line upgrade.
- All components are of famous brands, able to resist high temperature over 105℃, theoretically with design life of 10 years.
- Wide input working voltage range of solar panels.
- LCD display of various parameters, such as model, PV input voltage, type of battery, battery voltage, charging current, charging power, and charging status, etc.
- Reverse charging avoidable with solar energy, when the light is weak, e.g. in the night, the voltage of the battery may be higher than the terminal voltage of the solar arrays, but this controller is designed with the anti-reverse charging circuit to prevent the battery from reversely charging the solar cell.
- The battery and the equipment can be effectively protected due to the broken circuit caused by the fuse in the controller circuit, although reverse connection occurs, which is equal to short circuit and can result in a large instantaneous current.
- Automatic cutting off the circuit by the overload protection controller
PRAMETERS:
| MODEL: SC-GT | 6/10KVA | 15/20/30KVA | 40/50/60KVA | 80/100/120KVA |
| Phase System | 3-phase 3-wire system | |||
| Power Factor | 0.8 PF | |||
| Display | Full-function graphical LCD display | |||
| PV INPUT | ||||
| Max Input Voltage | 280Vdc | 420Vdc | 674Vdc | |
| Max Input Current | 33A/55A | 41A/55A/83A | 55A/69A/83A | 110A/138A/166A |
| AC POWER INPUT | ||||
| Input Connections | 3-phase 4-wire + Safety Grounding Wire | |||
| Input Voltage Range | 260~460Vac | |||
| Input Frequency Range | 45Hz~65Hz | |||
| Charging Current | 0-50A | |||
| SOLAR CHARGING CONTROLLER | ||||
| Type | MPPT | |||
| Input Voltage Range | 110~220Vdc | 220~360Vdc | 440~680Vdc | |
| Max Charging Current | 100A | 150A | 300A | |
| Protection | High/Low Voltage; Overload; Over-temperature; Short-circuit; Anti-reverse | |||
| OUTPUT | ||||
| Voltage | 380V ± 5%(battery mode); 380V ± 15%(utility mode) | |||
| Current | 300A max | |||
| Frequency | 50/60Hz ± 0.5% | |||
| Efficiency | >99%(Utility mode); >80%(Invertion mode) | |||
| Transfer Time | ≤1.5ms | |||
| Wave Distortion | When the load varies from 0 to 100%, the voltage variation <3% | |||
| Distortion Degree | Pure sine wave, harmonic wave distortion <3% (linear load) | |||
| THD | <3% (linear load); <10%(non-linear load) | |||
| BATTERY | ||||
| Type | Maintenance free lead-acid battery | |||
| Voltage | 96Vdc(12Vdc*8pcs) | 192Vdc(12Vdc*16pcs) | 384Vdc(12Vdc*32pcs) | |
| Balanced Charging Voltage | 112~113.6Vdc | 224~227.2Vdc | 448~454.4Vdc | |
| Float Charging Voltage | 110Vdc | 220Vdc | 440Vdc | |
| PROTECTION | ||||
| Overload Protection | Battery mode: ≥110%, 30S; ≥120%, 2S. Utility mode: won't switch off, but buzz to alarm. | |||
| Short-circuit Protection | Alarm in 20s, then closing the inverter | |||
| High/Low Input Voltage Protection |
Available | |||
| Battery Reverse Polarity Protection |
Available | |||
| High-temperature Protection | Available | |||
| SYSTEM & ENVIRONMENT | ||||
| Efficiency | >99% | |||
| Communication Interface | RS232/RS485(optional) | |||
| Heat-dissipating method | Cooling fan | |||
| Noise | <45db(lm) | |||
| Working temperature | 0~40℃ | |||
| Working humidity | 20%~90% (non-condensing) | |||
| Protection grade | IP20 | |||
| SPECIFICATIONS | ||||
| DimensionWxHxD(mm) | 595*286*765 | 710*386*865 | 700*445*1110 | 1000*600*1350 |
| Weight(kgs) | 60-70 | 90-130 | 250-300 | 500-550 |
| COMMUNICATION FUNCTION | ||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix and MAC | |||
| SNMP Optional | Power management from SNMP supervisor and web browser | |||
|
* SCPOWER is dedicated to technology innovation and always attemps to deliver to customers the best products and services, therefore, all specifications subject to change, please consider real sample as final. * THD = Total Harmonic Distortion | ||||

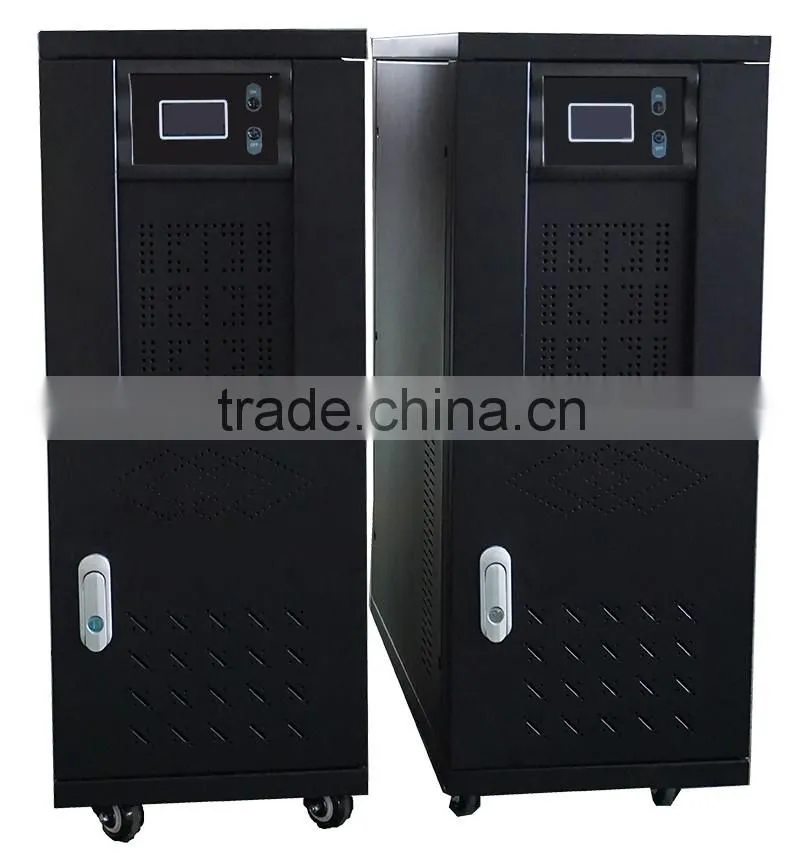

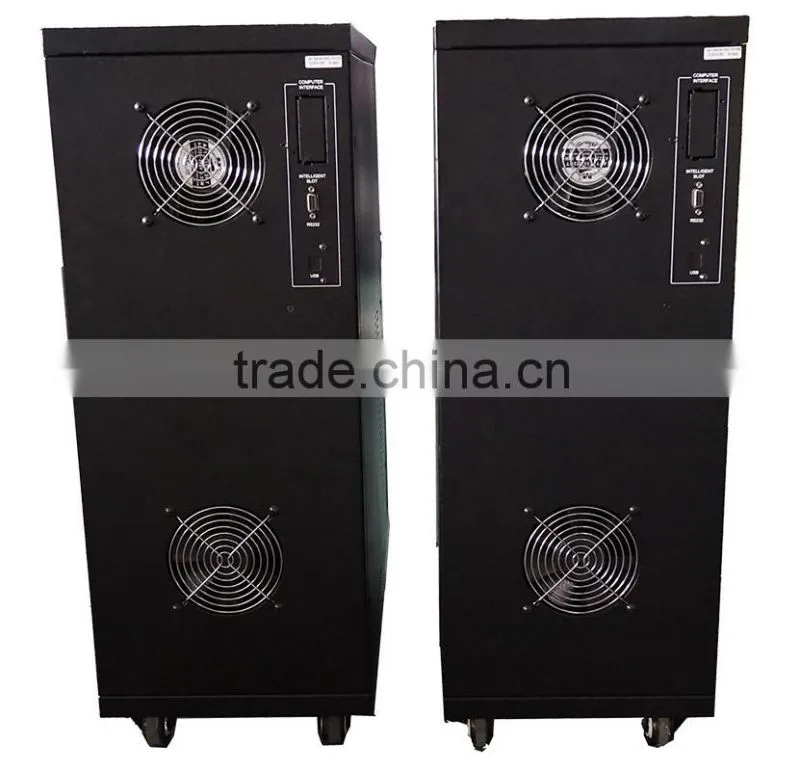

PRODUCT PHOTOS
___________________________________________________________________________________________________
COMPANY INFORMATION
___________________________________________________________________________________________________
Founded in 2009, Foshan SC Power Technology Ltd. is a National Key Support High-Tech Enterprise which integrated with R&D, production and marketing of Solar Inverter, Solar MPPT Controller, Hybrid Inverter (inverter with controller) and related solar power system products...
OUR ADVANTAGES:
We are factory
Master core technology
High spirit team
Rapid growing industry
PRODUCTION ABILITY:
5000sets/month ( Inverter/Hybrid Inverter)
10000sets/month (MPPT Solar Charge Controller)
R & D:
OEM / ODM acceptable
Warmly welcome to inquiry & place orders and wish we have a win-win business cooperation.
PACKAGING & SHIPPING
___________________________________________________________________________________________________
OUR SERVICE
___________________________________________________________________________________________________
- Software upgrade service;
- Free provides of spare parts within warranty
- Online/Onsite training of installation, debugging, maintenance, reparation, etc.
- Consolidation Service( only peripherals of our products)
- Promotion Support
F.A.Q.
__________________________________________________________________________________________________
Q1: What's the different between inverter and hybrid inverter?
A1: Inverter without controller,hybrid built-in MPPT solar controller.
Q2: How about the delivery time?
A2: 7-10 days for sample; mass orders depend on quantity.
Q3: What is the warranty
A3: One year .
