pure sine wave solar inverter 24VDC to 220VAC single phase
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: SC Power
- Model Number: SC-G 4KVA
- Specification: Normal
- Application: Home
- Output Voltage (V): 110V/220V
- Load Power (W): 2560W
- Solar Power (W): 3200W
- Work Time (h): 24 Hours
GENERAL DESCRIPTION:
These series of inverters are hybrid inverter with built-in MPPT solar charge controller.
Advantages include high conversion efficiency, low power consumption, strong loading ability etc..
Users can set battery charging mode,timing DC/AC mode to meet different requirements.
This is the most high-end low frequency inverter with built-in MPPT solar charge controller.
PRODUCT FEATURES
_________________________________________________________________________________
- Max PV input: 144V
- Charging current: 50A ( PV)
- Charging current: 1-50A (AC)
- Charging method: MPPT
- LCD monitor: Big professional
- Transformer: Toroidal
- Input voltage: 145Vac-275Vac; 73Vac-138Vac
|
P R O T E C T I O N |
♦ Short-circuit Protection |
||||||||||
| ♦ Low Voltage Protection |
|||||||||||
| ♦ Over Voltage Protection |
|||||||||||
| ♦ Overheat Protection |
|||||||||||
♦ Overload Protection |
|||||||||||
Battery Options
___________________________________________________________________________________________________
+ |
+ | + | + | |||||
Sealed Lead |
GEL Battery | Vented Battery |
Ni-Cd Battery |
|||||
- |
- | - |
- |
|||||
| Default | Manual Switch | Manual Switch | Manual Switch |
(Compatible with other types of batteries as well!!! )
PRODUCT PARAMETERS
___________________________________________________________________________________________________
| SC-G Hybrid Inverter With Built-in Solar Charge Controller | |||||||||
| Series | 1000VA | 1500VA | 2000VA | 3000VA | 4000VA | 5000VA | 8000VA | 10KVA | |
| Rate Output Power | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 6400W | 8000W | |
| Battery (Lead-acid battery) | 12V/24V | 24V/48V | 48V/96V | ||||||
| Charging Parameter | |||||||||
| Charging Mode (Setting) | PV charge | ||||||||
| PV charge + Utility charge | |||||||||
| MPPT solar controller | Voltage | 12V/24V | 24V/48V | 48V/96V | |||||
| Current | 20A | 25A | 30A | 50A | |||||
| Max PV Input Voltage | 72V/144V | 144V/220V | |||||||
| PV Charge Efficiency | 95% - 99% | ||||||||
| Utility | AC Charge current | 1 - 50A adjustable | |||||||
| Inversion Parameter | |||||||||
| AC Output | Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% | |||||||
| Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 | ||||||||
| Output wave type | Pure sine wave output, Total Harmonic Distortion THD less than 3% | ||||||||
| Overload Protection | >120% 1min, >130% 10s | ||||||||
|
Power Consumption (Under Normal Working Mode) |
0.4A | 12V:0.9A | 12V:0.7A | 24V:0.7A | 0.6A | 0.65A | 0.7A | 0.75A | |
| 24V:0.7A | 24V:0.7A | 48V:0.5A | |||||||
|
Power Consumption (Under Sleep Mode) |
1 - 6W | ||||||||
| Inversion Efficiency | 85% - 92% | ||||||||
| Utility Mode | |||||||||
| AC Input | 220V ± 35% or 110V ± 35% 50Hz or 60Hz | ||||||||
| AC Output | 220V ± 5% or 110V ± 5% 50Hz or 60Hz | ||||||||
| (AC first or DC first) Prority | |||||||||
| UPS Output (Setting) | AC first DC standby | ||||||||
| DC first AC standby | |||||||||
| General Parameter | |||||||||
| Display Information | Input voltage, output voltage, output frequency, battery capacity, load condition, status information | ||||||||
| Protection | Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat | ||||||||
| Size: W*D*H (mm) | 418*208*193.2 | 458*210*216 | 542.5*294*240.7 | ||||||
| Net weight (kgs) | 13 | 15 | 17 | 19 | 21 | 24 | 32 | 39 | |
| The specification is only for reference. Subject to change without prior notice. | |||||||||

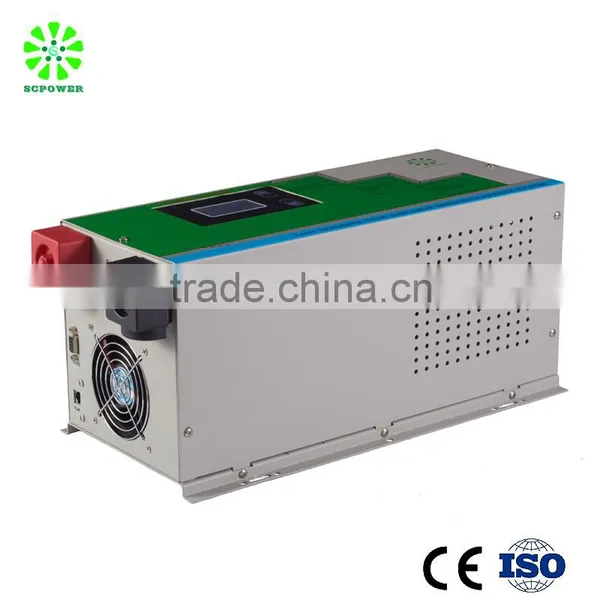

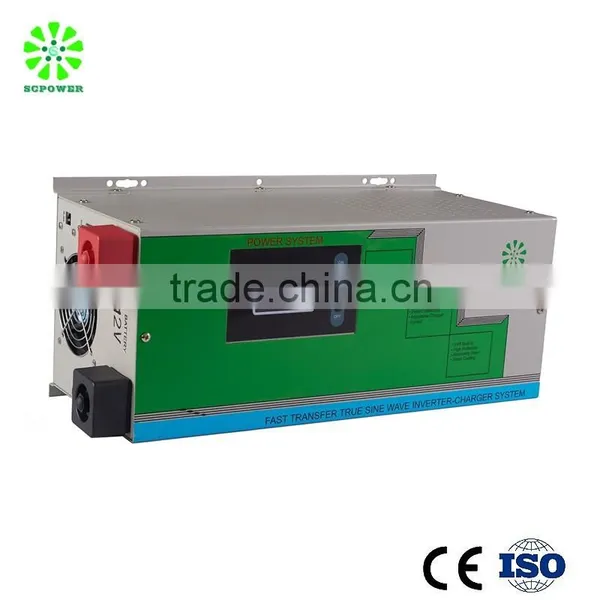

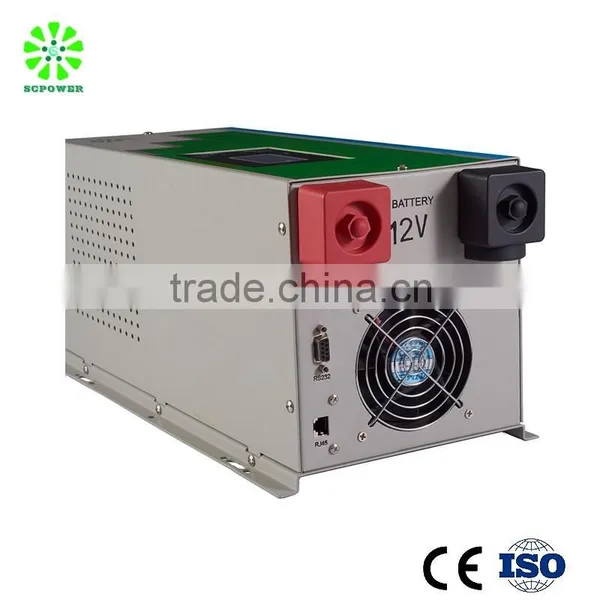

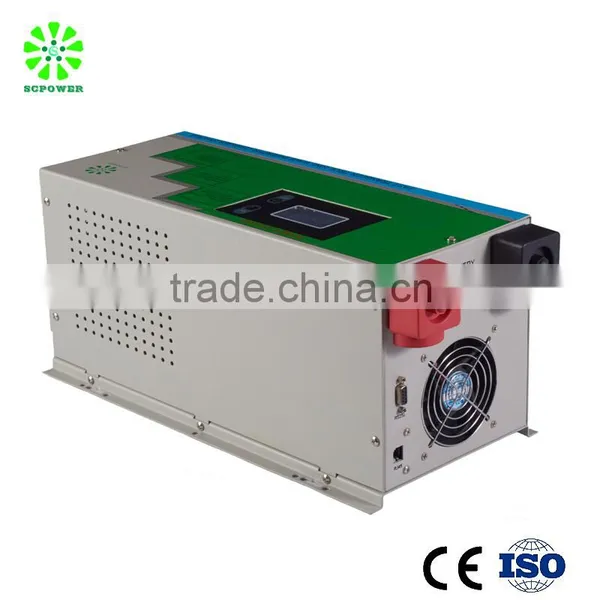

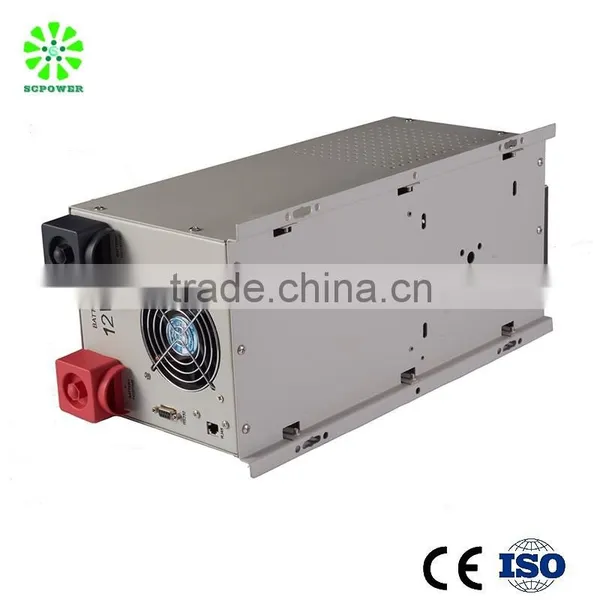

PRODUCT PHOTOS
___________________________________________________________________________________________________
COMPANY INFORMATION
___________________________________________________________________________________________________
Founded in 2009, Foshan SC Power Technology Ltd. is a National Key Support High-Tech Enterprise which integrated with R&D,
production and marketing of Solar Inverter, Solar MPPT Controller,Hybrid Inverter (inverter with controller) and related solar power system products...
OUR ADVANTAGES:
We are factory
Master core technology
High spirit team
Rapid growing industry
PRODUCTION ABILITY:
5000sets/month ( Inverter/Hybrid Inverter)
10000sets/month (MPPT Solar Charge Controller)
R & D:
OEM / ODM acceptable
Warmly welcome to inquiry & place orders and wish we have a win-win business cooperation.
PACKAGING & SHIPPING
___________________________________________________________________________________________________
Packaging & Delivery
| Packaging Details: | EPE foam + edge/corner protector + 7 layers corrugated board carton |
|---|---|
| Delivery Detail: | 7 days for samples; 25~35 days for bulk order |
OUR SERVICE
___________________________________________________________________________________________________
- Software upgrade service;
- Free provides of spare parts within warranty
- Online/Onsite training of installation, debugging, maintenance, reparation, etc.
- Consolidation Service( only peripherals of our products)
- Promotion Support
HIGH-SPIRIT SERVICE TEAM LEADERS:
John Mo DJ Pang Jack Bai
(General Engineer) (Product Manager) (Service Manager)
F.A.Q.
__________________________________________________________________________________________________
Q1: What's the difference between inverter and hybrid inverter?
A1: Inverter without controller,while hybrid inverter with built-in MPPT solar controller.
Q2: How about the delivery time?
A2: 12 days for sample; mass orders depend on quantity.
Q3: What is the warranty
A3: One year .
