Product display
Specification
| Model | FC-2600 FC-2600P |
FC-2600/D FC-2600P/D |
| Type | Straight outlet | With connector |
| Detecting distance | 2.5mm | |
| Light source | Red LED:640nm | |
| Operating voltage | DC12-24V±10%(Ripple P-P:10%Max) | |
| Current consumption | 15mA Max | |
| Load current | 100mA Max at DC 24V | |
| Output type | N=NPN.NO NC P=PNP.NO.NC | |
| Protection ciruit | Reverse polarity protection and short circuit protection | |
| Response time | 500us Max | |
| Leakage current | <0.01mA no-load | |
| Operating Temperature | -10°C-+50°C(without icing or condensation) | |
| Storage temperarure | -20°C~+60°C(No freezing allowed | |
| Ambient humidity | 35%-85% Relative humidity | |
| Protection degree | IP66 | |
| Meterial | Aluminium metal case | |
| Wiring method | φ4×2M/4-wires/φ4×2M/M8 4-wires | |

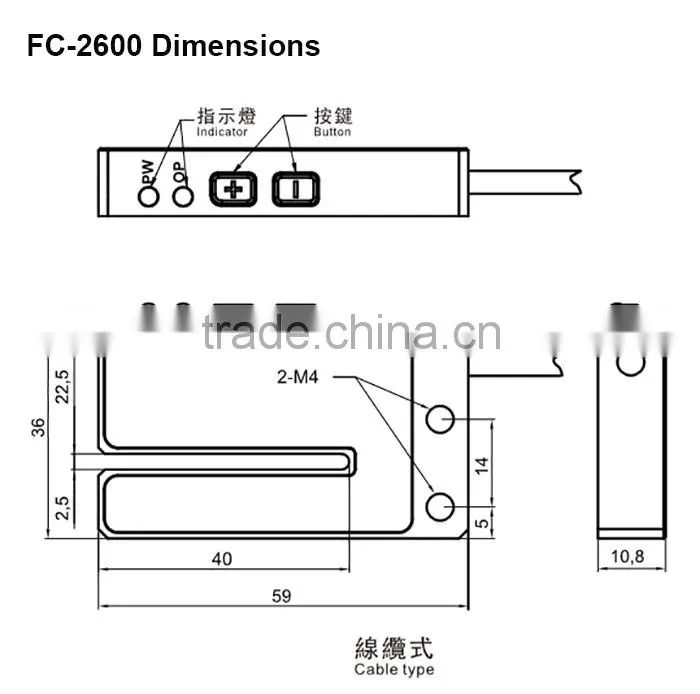

Dimension Drawing
Slot label sensor ,packing machine sensors,slotted optical sensor
Certifications
More product
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Enterprise profile
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
