Feature of FC series label sensor
1.Universal type,suitable for all Auto packaging machine
2.Aluminum case desigh,high reliability and compatibiliaty
3.low-cost,high performance
4.M8 connector can be customized

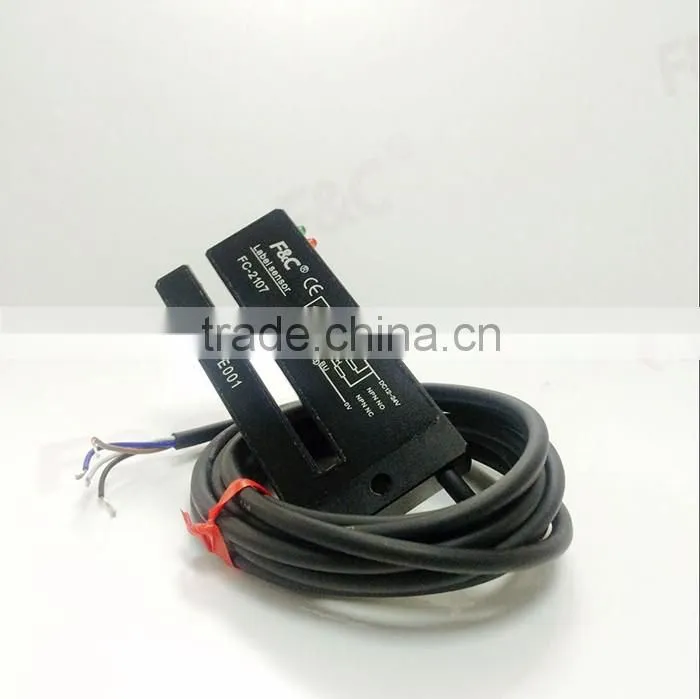

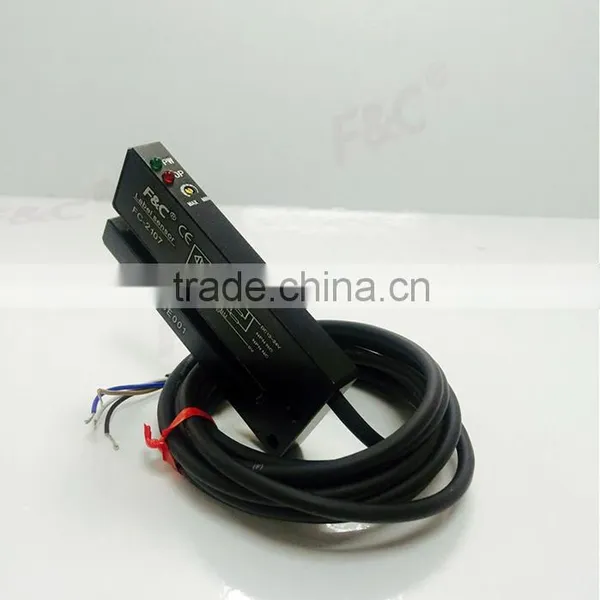

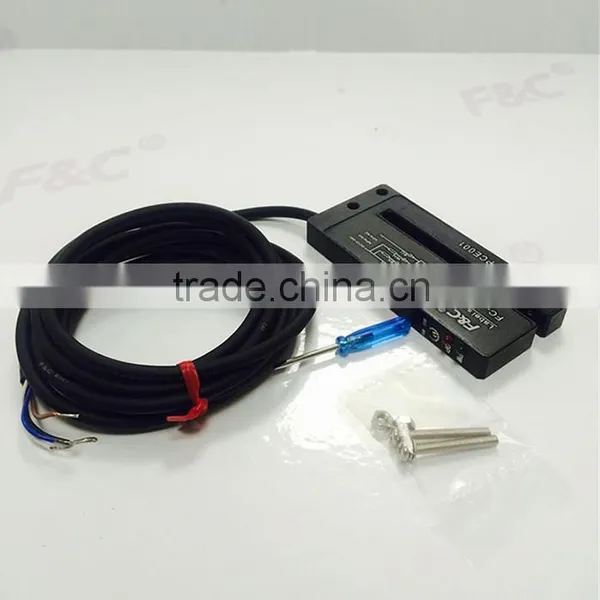

Product display
Dimension Drawing
IR Label sensor , modulated infrared light, packaging application sensor
Specification
| Model | FC-2107 FC-2107P |
FC-2107/D FC-2107P/D |
| And outlet | Straight outlet | With connector |
| Detecting distance | 5mm | |
| Light source | 940nm infrared modulated light | |
| Operating voltage | DC12-24V±10%(Ripple P-P:10%Max) | |
| Current consumption | 15mA Max | |
| Load current | 100mA Max at DC 24V | |
| Output type | N=NPN.NO NC P=PNP.NO.NC | |
| Protection ciruit | Reverse polarity protection and short circuit protection | |
| Response time | 500us Max | |
| Leakage current | <0.01mA no-load | |
| Operating Temperature | -10°C-+50°C(without icing or condensation) | |
| Storage temperarure | -20°C~+60°C(No freezing allowed | |
| Ambient humidity | 35%-85% Relative humidity | |
| Waterproof degree | IP66 | |
| Meterial | Aluminium metal case | |
| Wiring method | φ4×2M/4-wires/φ4×2M/M8 4-wires | |
Certifications
More product
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.

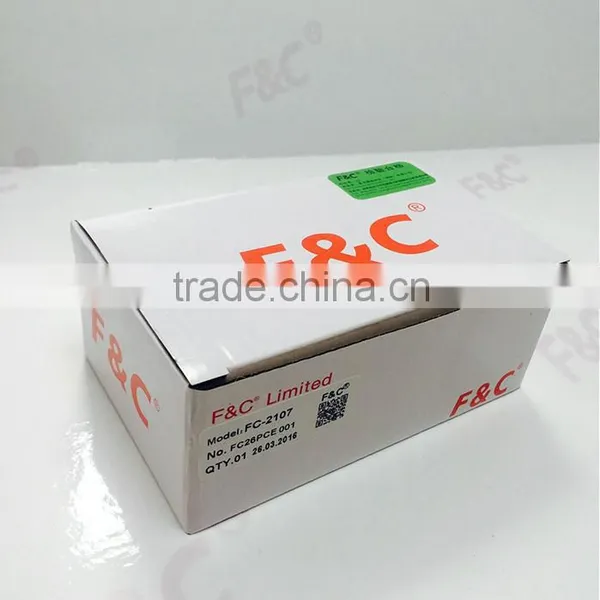

Packaging&Shipping
