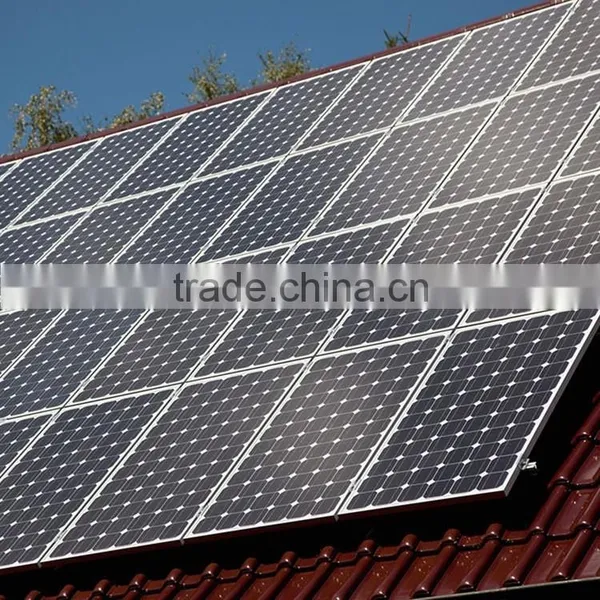

Solar energy goods for home and buildings of photovoltaic systems

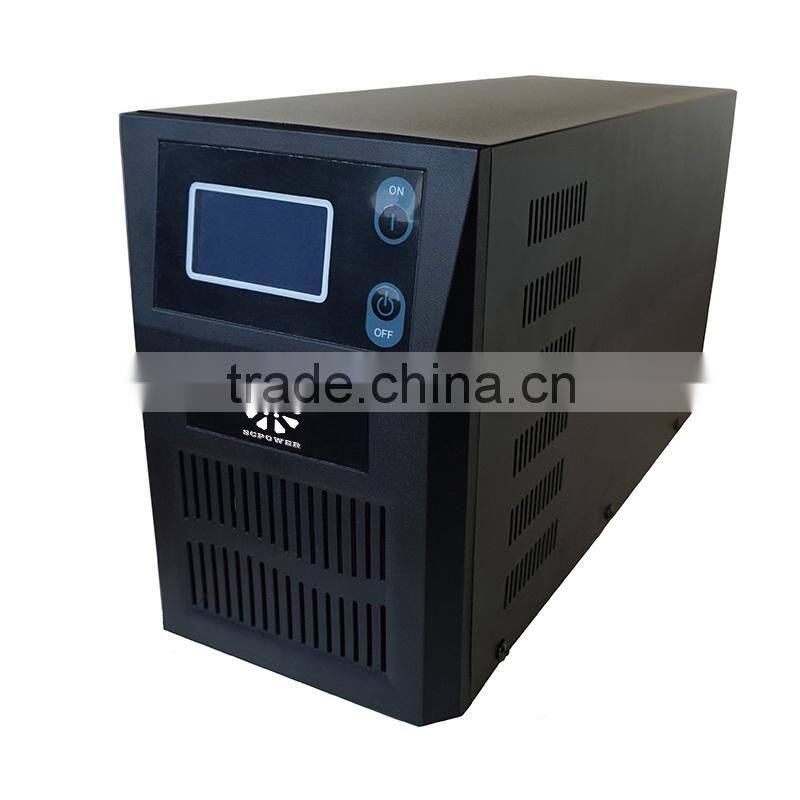

INTRODUCTION:
This is a multi-function inverter, combining function of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its professional LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
FEATURES:
Hybrid Charging Current (MPPT and AC interactived, upgraded solution for battery performance)
Pure sine wave output, available for sensitive load
Build-in MPPT solar charge controller
Selectable input voltage range for home appliance and personal computers
Accept generator energy output
High power factor
Microprocessor control guarantees high reliability
Configurable AC/Solar input priority via LCD setting
Selectable charging current based on applications
MULTI-PROTECTION:
Low voltage protection
Over voltageprotection
Overheat protection
Overload protection
Short-circuit protection
PARAMETERS:
| SC-G Hybrid Inverter With Built-in Solar Charge Controller | |||||||||
| Series | 1KVA | 1.5KVA | 2KVA | 3KVA | 4KVA | 5KVA | 8KVA | 10KVA | |
| Rate Output Power | 800W | 1.2KW | 1.6KW | 2.4W | 3.2W | 4KW | 6.4KW | 8KW | |
| Battery (Lead-acid battery) |
12V/24V | 24V/48V | 48V/96V | ||||||
| CHARGING PARAMETER | |||||||||
| Charging Mode (Setting) |
PV charge | ||||||||
| PV charge + Utility charge | |||||||||
| MPPT solar controller |
Voltage | 12V/24V | 24V/48V | 48V/96V | |||||
| Current | 20A | 25A | 30A | 50A | |||||
| Max Input Voltage |
72V/144V | 144V/220V | |||||||
PV Charge |
95% - 99% | ||||||||
| Utility | AC Charge current |
1 - 50A adjustable | |||||||
| INVERSION PARAMETER | |||||||||
| AC Output |
Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% | |||||||
| Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 | ||||||||
| Output wave type | Pure sine wave output, Total Harmonic Distortion THD≤3% | ||||||||
| Overload Protection | >120% 1min, >130% 10s | ||||||||
| Power Consumption (Under Working Mode) |
0.4A | 12V:0.9A | 12V:0.7A | 24V:0.7A | 0.6A | 0.65A | 0.7A | 0.75A | |
| 24V:0.7A | 24V:0.7A | 48V:0.5A | |||||||
| Power Consumption (Under Sleep Mode) |
1 - 6W | ||||||||
| Inversion Efficiency | 85% - 92% | ||||||||
| UTILITY MODE | |||||||||
| AC Input | 220V ± 35% or 110V ± 35% 50Hz or 60Hz | ||||||||
| AC Output | 220V ± 5% or 110V ± 5% 50Hz or 60Hz | ||||||||
| (AC first or DC first) PRIORITY | |||||||||
| UPS Output (Setting) | AC first DC standby | ||||||||
| DC first AC standby | |||||||||
| GENERAL PARAMETER | |||||||||
| Display Information | Input voltage, output voltage, output frequency, battery capacity, load condition, status information | ||||||||
| Protection | Overload, Short-circuit, High-voltage input, Low-voltage input,Overheat | ||||||||
| Size: W*D*H (mm) | 418*208*193 | 458*210*216 | 542*294*240 | ||||||
| Net weight (kgs) | 13 | 15 | 17 | 19 | 21 | 24 | 32 | 39 | |
| The specification is only for reference. Subject to change without prior notice. | |||||||||

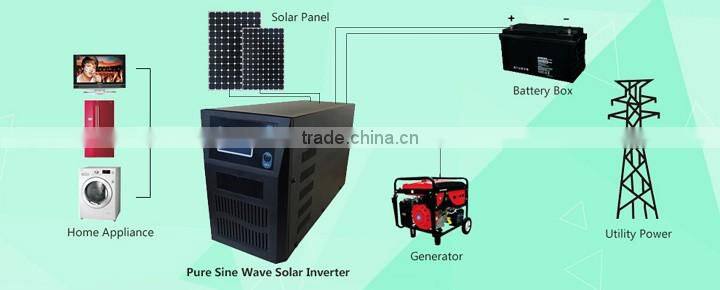

CONNECTION DIAGRAM:
COMPANY INFORMATION
___________________________________________________________________________________________________
Founded in 2009, Foshan SC Power Technology Ltd. is a National Key Support High-Tech Enterprise which integrated with R&D, production and marketing of Solar Inverter, Solar MPPT Controller, Hybrid Inverter (inverter with controller) and related solar power system products...
OUR ADVANTAGES:
We are factory
Master core technology
High spirit team
Rapid growing industry
PRODUCTION ABILITY:
5000sets/month ( Inverter/Hybrid Inverter)
10000sets/month (MPPT Solar Charge Controller)
R & D:
OEM / ODM acceptable
Warmly welcome to inquiry & place orders and wish we have a win-win business cooperation.
- Software upgrade service;
- Free provides of spare parts within warranty
- Online/Onsite training of installation, debugging, maintenance, reparation, etc.
- Consolidation Service( only peripherals of our products)
- Promotion Support
| Packaging Details: | EPE foam + edge/corner protector + 7 layers corrugated board carton |
|---|---|
| Delivery Detail: | 12 days for samples; 25~35 days for bulk order |
