Product Details
Place of Origin: | Hunan, China | Brand Name: | F&C | Model Number: | FF-301-16us |
Usage: | Position Sensor | Theory: | Optical Sensor | Output: | Digital Sensor |
Product Description
FF-301 Fastest digital Fiber Optic sensor. Responsing Time Only 16us !!!
F&C Provide all kinds of fiber optic tube matching with our fiber optic sensors for accurate detection. Accept OEM Order!!!

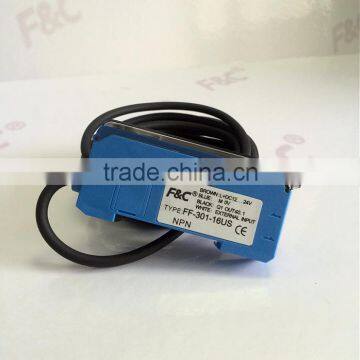

F&C16us double digital display NPN 12-24V dc fiber optic sensor shown as below.
Specification
F&C16us double digital display NPN 12-24V dc fiber optical amplifier sensor | |
Fiber Amplifier Model | FF-301 |
Output Mode | NPN Single Output |
Operating Voltage | 12~24VDC |
Power Consumption | Less than 45mA at 24V |
Short Circuit Protection | Yes |
Working Indicator | Red Led |
Digital Display | 4 bit green&4 bit red LCD Display |
Sensitivity Distance Setting | Auto&Manual adjustment |
Response Time | 16us/70us/250us/2ms/8ms |
Timer Function | ON Delay Time/OFF Delay timer, Adjustable valid or invalid (Regular time:1ms,5ms,10ms,20ms,40ms,100ms,500ms,1000ms) |
Timer Adjustable Time | 0.1ms~9s |
Input Setting Method | Auto teach/test/sync |
Operating Temperature | -25~55℃ |
Operating Humidity | 35~85% |
Storage Temperature | -40~70℃ |
Storage Humidity | 35~85% |
Shockproof | Frequency 10~150HZ double amplitude 0.75mm, XYZ direction each 2hours |
Waterproof Grade | IP50 |
Material | ABS/PC |
Weight | 65g |

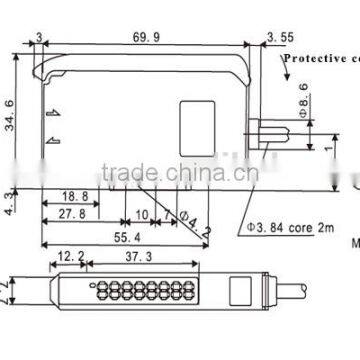

Dimension Drawing
Wiring Drawing
F&C is a professional automation solution provider, Just tell us what you want, we will provide solutions for you.
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading and professional sensor supplier in China.
Our product has been sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic lens, Fiber optic Lens,
Proximity Sensor, Photoelectric sensor,Label Sensor, Light Curtain, Laser Alignment,
Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,Solid State Relay.
F&C SensingTechnology has been making continuous breakthrough in new technology and new application. Our target is “What you need can be found in F&C Sensing Technology”
Welcome to contact me.I can be reached by Skype:lynn_liu123 and Cellphone/Wechat:86-13319542018
