Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > CATV RG59.RG6, RG58 BNC Compression RF Coaxial Cable Connector

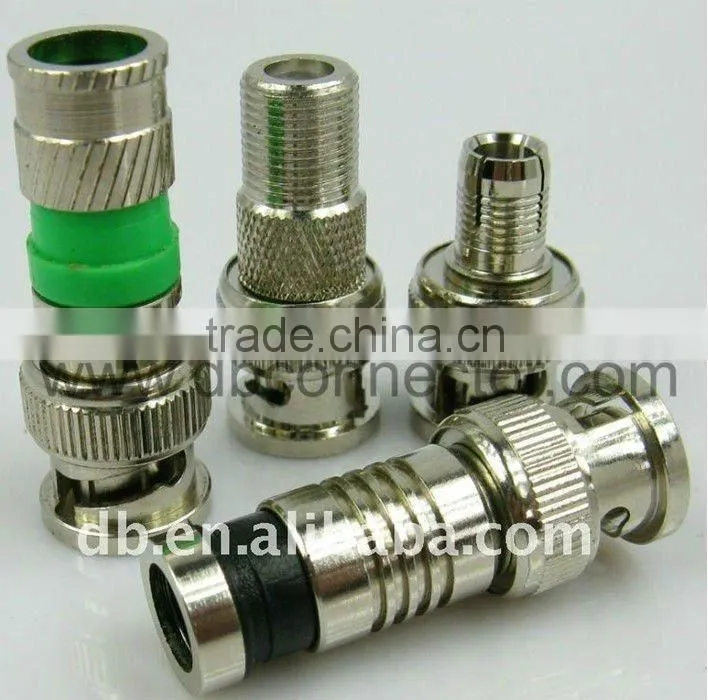

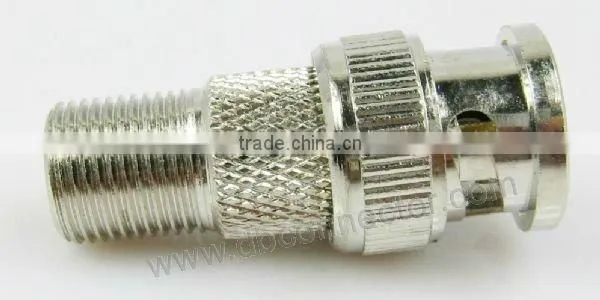

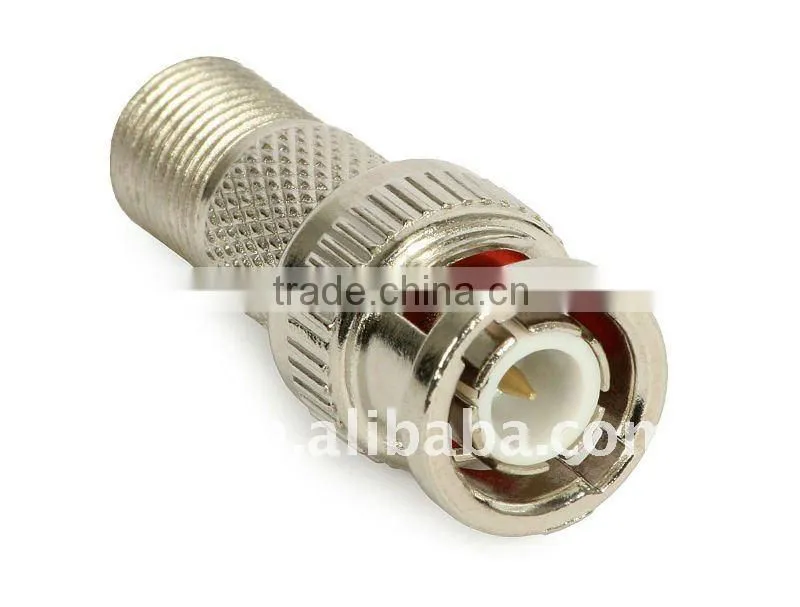

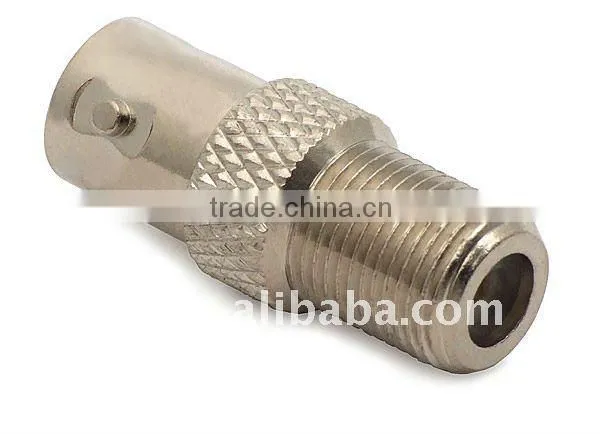

CATV RG59.RG6, RG58 BNC Compression RF Coaxial Cable Connector
US$ 0.2 - 0.4
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DB-coaxial cable Connector
Model Number:
coaxial cable Connector
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
DB-coaxial cable Connector
Model Number
coaxial cable Connector
Type
BNC
Application
RF
Gender
Male
Specifications
RF Coaxial cable connector1. Brass nickle plated
2. RF connector
3. BNC Compression connector
4. Coaxial cable connector
RG59.RG6, RG58 Compression BNC Coaxial cable Connector
There are two major BNC variants -- 50 ohm and 75 ohm.
- 50 ohm connectors are commonly used in professional audio, amateur (ham) radio, avionics, and on most electronic test equipment.
- 75 ohm connectors tend to be used in video and consumer-grade TV equipment.
BNC connectors are usable at frequencies up to around 2 GHz, and are prone to leakage above 4 GHz.

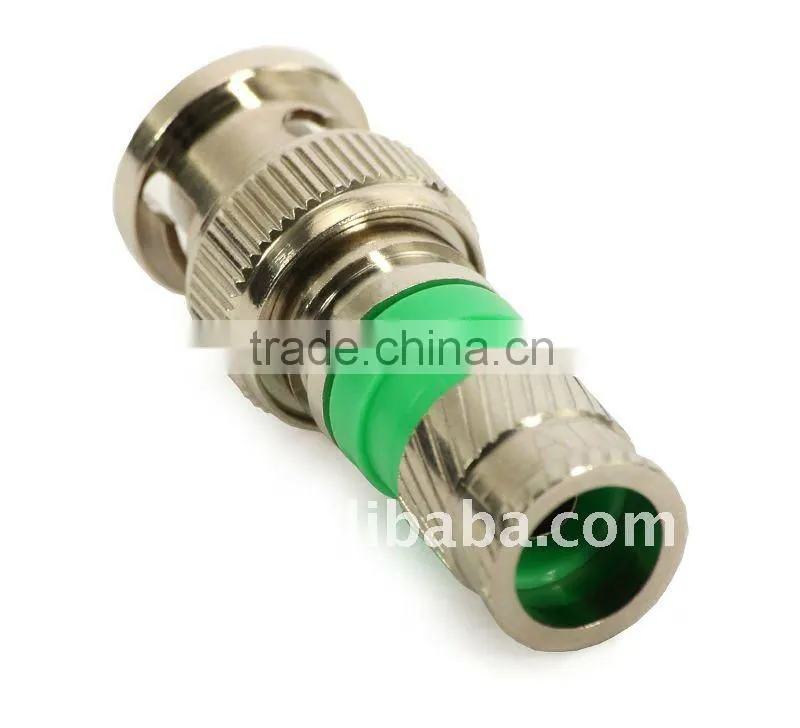

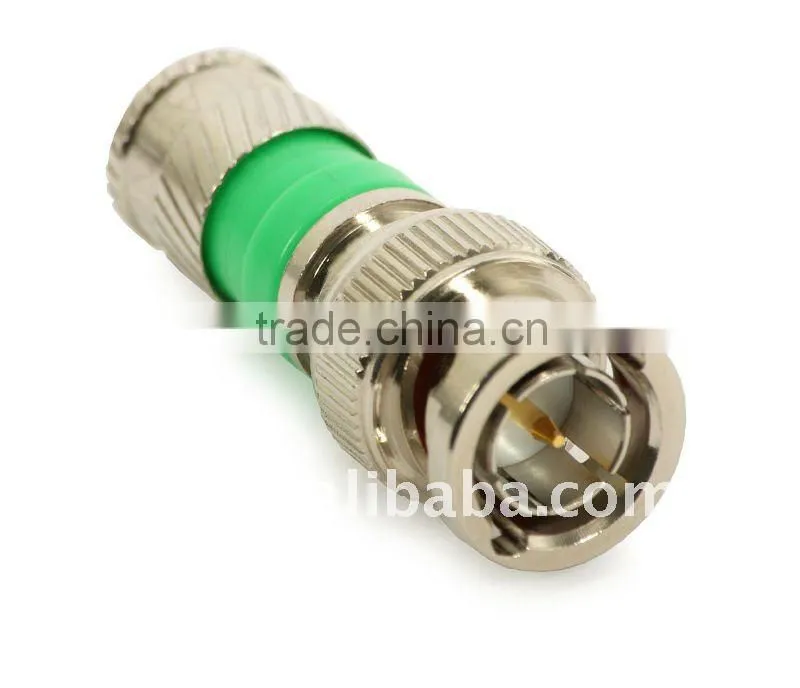

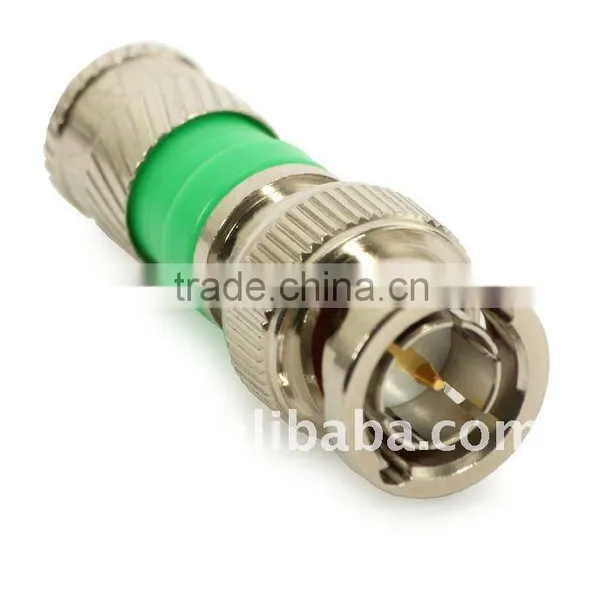

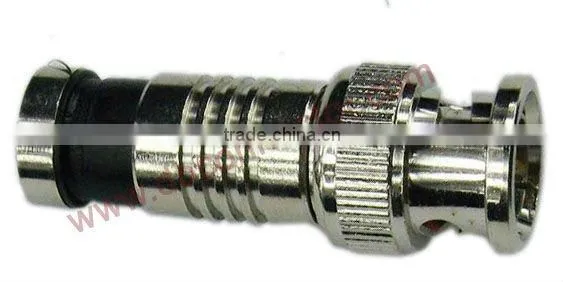

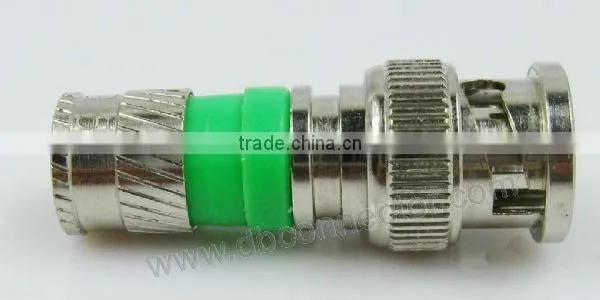

Compression bnc Coaxial cable connector:
Name |
BNC connector Platinium for RG-6 |
||
Physical specs | |||

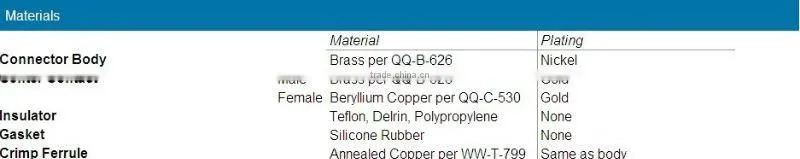

Material |
|
Brass |
|
Plating |
|
Nickel |
|
Plastic bush |
|
DuPont Delrin 527UV* |
|
Dimensions (height x diameter) |
mm |
27x5.5 |
|
Weight |
kg |
0.015 |
|

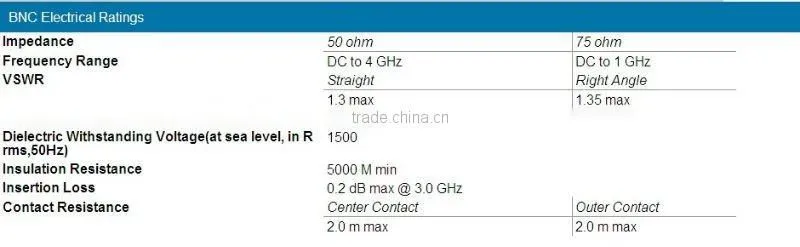

Electrical parameters | |||
Impedance |
ohm |
75 |
|
Frequency range |
GHz |
0-3 |
|
VSWR at 1 GHz |
|
<1.1 |
|
Return loss at 1GHz |
dB |
>30 |
|
Screening efficiency at 1GHz |
dB |
>100 |
|
Main features of the professional BNC coaxial cable connector:
- wide operating band - up to 3GHz,
- connecting/disconnecting operations do not influence connection quality (can be even used in measurement equipment),
- waterproof termination of the cable,
- resistance to corrosion - made of non-ferrous metals and highest-quality dielectric,
- very low loss in the whole operating band (CCTV applications - baseband video <0.1 dB),
- perfect matching to the transmission line within the whole operating band
(CCTV applications - baseband video - VSWR<1.03), - simple and quick assembly: longitudinal compression,
- properly compressed connection is highly resistant to break, due to dual compression rings,
- matched to the cables of RG-6 family,
- many patented technologies,
- quick and easy assembly, and stability of operation are really worth the price.
,
