RF BNC Male Connector 75 Ohms
US$ 0.1 - 0.5
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DB BNC Male Connector 75 Ohms
Model Number:
BNC Male connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
DB BNC Male Connector 75 Ohms
Model Number
BNC Male connector
Type
Other, BNC, BNC connector
Application
RF
Gender
Male
Specifications
BNC Male Connector1.Brass Plating: Gold/silver
2.Type:F BNC connector
3.BNC connector PCB mount
4.Impendence:75 ohm
RF BNC Male Connector 75 Ohms
I .RF BNC Male Connector 75 Ohms Characterisitcs
- Special bayonet design allows easy mating and unmating.
- BNC 50 ohm connectors provide repeatable electronic performance from DC to 4 GHz.
- BNC type connectors are designed to accomodate a large variety of RG and industry standard cables.
- Available in crimp, clamp, and twist on cable styles.
- A full line of printed circuit board receptacles, bulkhead receptacles, and other accessories complement the product offering.
- BNC series coaxial connector works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment
II.RF BNC Male Connector 75 Ohms Technical Specification
Tenmperature Range: -65 to +165 Deg.C
Impendance: 50 Ω
Frequency Range: DC to 4 GHz Max
VSWR
Straight ≤1.22
Right angle ≤1.30
Insertion Loss
Straight 0.2 dB Max @ 3 GHz
Right angle 0.3 dB Max @ 3 GHz
Working Voltage: 500 V @ SEA LEVEL
Withstand Voltage: 1500 V @ SEA LEVEL
Contact resistance
Center Contact ≤1.5 mΩ
Outer Contact ≤1 mΩ
Insulation Resistance ≥5000 MΩ
Durability(mating) ≥500 cycles
III.RF BNC Male Connector 75 Ohms Materials
| Material | Plating | ||
| Connector Body | Brass | Nickel | |
| Center Contact | Male | Brass | Gold |
| Female | Beryllium Copper | Gold | |
| Insulator | Teflon, Delrin, Polypropylene | None | |
| Gasket | Silicone Rubber | None | |
| Crimp Ferrule | Annealed Copper per | Same as body |

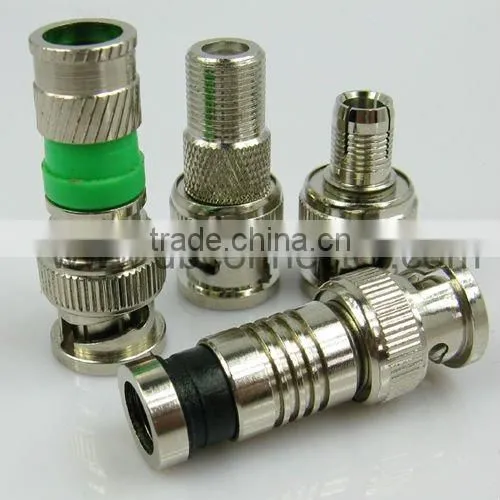

RF BNC Male Connector 75 Ohms Structure
